Atlas Alignment Wheel Stand Package (Set of 4, No Turntables)

Atlas Alignment Wheel Stand Package — Set of 4 (No Turntables) for Shops That Already Have Turntables

The Atlas Wheel Stand Set is the no-turntable variant of the WHLSTD package — 4 steel wheel stands at 39-1/2″ height for use with a 2-post or mid-rise lift to create an alignment-capable platform. Same heavy-duty stands as the WHLSTD package, but without the turntables (for shops that already have alignment turntables from another source).

1,500 lb capacity per stand, 6,000 lb total. 19.5″ x 19.5″ solid steel top plate with 0.38″ thickness — heavy enough for sustained alignment work.

What’s Included

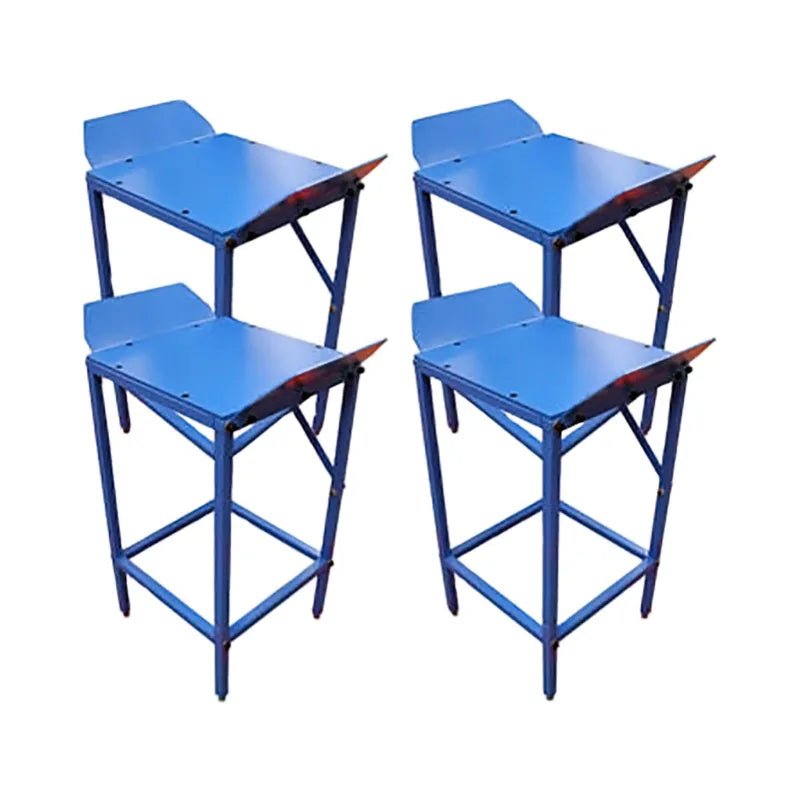

• 4 steel wheel stands (39-1/2″ height)
• 19.5″ x 19.5″ solid steel top plates
• 0.38″ thick top steel plating

Note: Alignment turntables are NOT included. For the package with turntables, see the WHLSTD model.

Made For

Built for shops that already own alignment turntables from another source and just need the wheel stand component.

• Shops that have a separate set of turntables
• Tire shops adding wheel stand capability to existing turntable inventory
• Restoration shops needing wheel stands for chassis-level work
• Shops standardizing on stand-only purchases

Features

• Set of 4 wheel stands — supports the entire vehicle at alignment height.
• 6,000 lb total capacity — 1,500 lb per stand.
• 19.5″ x 19.5″ solid steel top plate — large stable platform.
• 0.38″ thick top steel — heavy-duty plate, no flex under load.
• 39-1/2″ height — proper height for hanging alignment sensors.
• Adjustable for level alignment on uneven floors.
• Heavy steel construction — built for daily commercial use.

SLJ-A000 vs WHLSTD: Which Set Fits Your Shop

If you don’t have alignment turntables, get the WHLSTD package — the difference in price more than covers a separate turntable purchase.

The SLJ-A000 is the right call only if you already have a working set of alignment turntables and you’re replacing or adding stand capability separately.

Why 0.38″ Top Plate and 1,500 lb Per-Stand Capacity Matters for Alignment Work

Alignment readings are only valid if the vehicle is sitting on a stable, level platform. A thin-gauge stand top will flex under a heavy SUV or crew-cab truck, and even a sixteenth of an inch of deflection at one corner skews caster and camber readings enough to bury the alignment outside the manufacturer’s spec window. The SLJ-A000’s 0.38″ solid steel top plate doesn’t flex at the 1,500 lb per-corner working load — caster, camber, and toe readings stay where the alignment rack puts them.

The 39-1/2″ stand height matches the working range of standard alignment sensor heads when paired with a two-post or mid-rise lift, so techs aren’t crouching to read targets or hanging sensors at awkward angles. The square 19.5″ by 19.5″ footprint gives enough surface area to land any passenger-car or light-truck tire on plate, including dually rears, without overhang.

The Right Wheel Stand Set for Your Existing Alignment Setup

For shops with existing turntables, the SLJ-A000 provides the matching stand capability at a lower price than the bundled WHLSTD package.

Don’t wait — scroll back up and click the orange Add to Cart button to get this package on its way to your shop.

Specs

Technical Specifications
