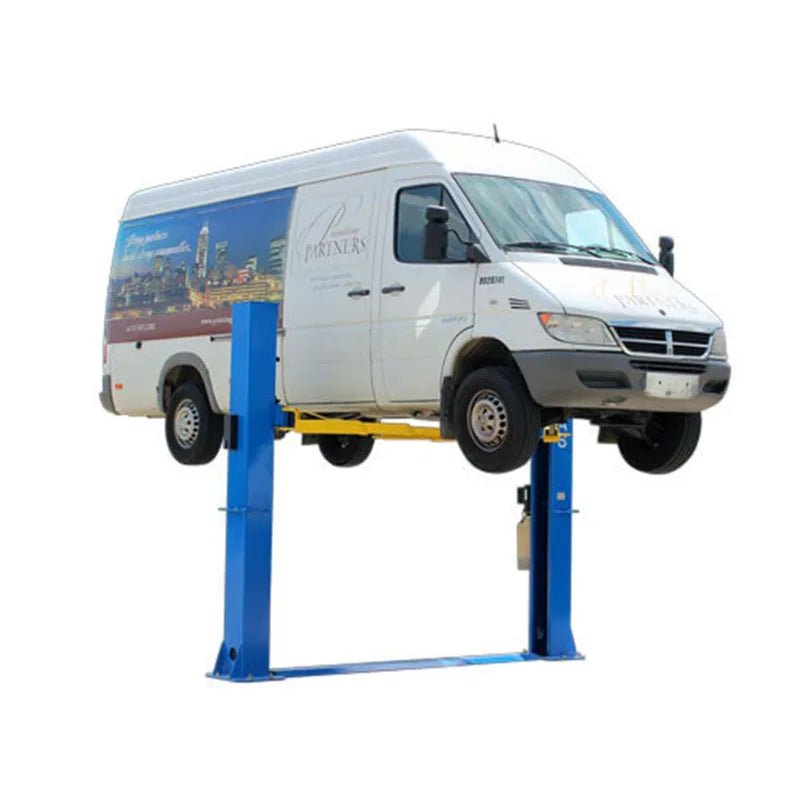

The Atlas BP10000X Commercial Grade Lift
The Atlas® BP10000X commercial grade 2 post baseplate lift is built for those customers who want to lift heavy vehicles in a low ceiling garage. The Atlas® BP10000X incorporates the popular single point lock release columns have a middle welded support gusset that adds extra strength to the oversized columns. If you need to lift a one ton dually or a Smart Car and only have an 11 foot ceiling, this is the lift for your shop.
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53′ truck.
Features
- 10,000 lb. Capacity
- Commercial Grade
- Baseplate, Open-Top Style Lift
- Overall Height: 111 7/8″ (9′ 3 7/8″)
- Single-Point Lock Release Allows Both Columns To Be Disengaged
- Simultaneously
- Super-Symmetric Arms
- Dual Hydraulic Chain-Drive Cylinders Made to ANSI Standard
- Welded Support Gussets Increase Column Strength.
- Automatic Arm Restraints
- Powder Coat Finish
- Free 12 Piece Truck Adapter Set
- Shipping Weight: 1,640 LBS.
- 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

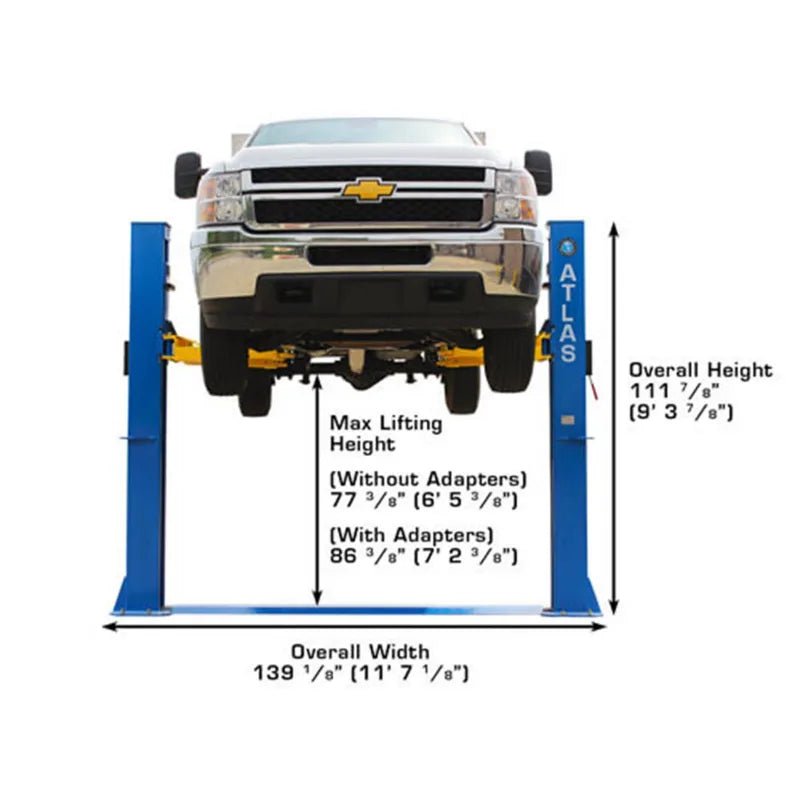

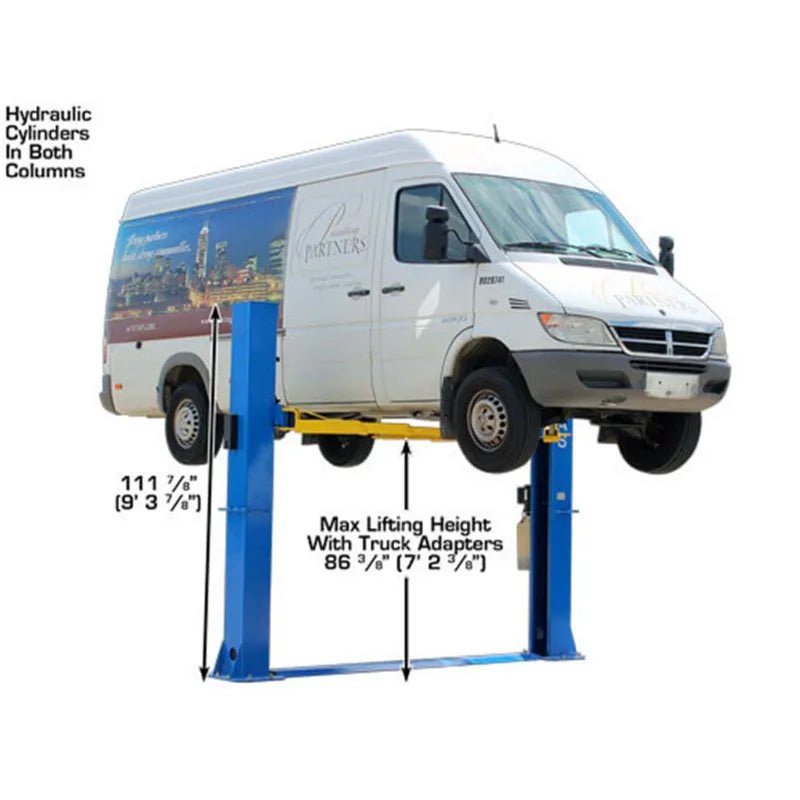

Atlas® ATTD-BP10000X Specifications
| Capacity | 10,000 LB. | |
| Overall Height | 111 7/8″ (9’ 3 7/8″) | |
| Overall Floor Width | 139 1/8″ (11’ 7 1/8″) | |
| Outside Column to Outside Column | 134 1/2″ (11’ 2 1/2″) | |
| Maximum Lift Height (Without Adapters) | 77 3/8″ | |
| Maximum Lift Height (With Adapters) | 86 3/8″ | |
| Minimum Arm Height | 4″ | |
| Inside Column | 112 1/4” (9’ 4 1/4”) | |
| Drive Thru | 101 1/4” (8’ 5 1/4”) | |
| Column Size | 9 1/2″ x 11″ | |
| Column Thickness of Steel | 6mm | |
| Base Of Lift | 17 1/2″ x 21 1/2″ | |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
|
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |
| Shipping Weight | 1,640 LBS. | |
| Adapter Heights | 4 Each 2”, 3”, 6” | |
| Arm Hole/Adapter Peg Size | 1.5” | |
| Requires a minimum of 4″ of concrete with a 3000 psi. rating | ||
