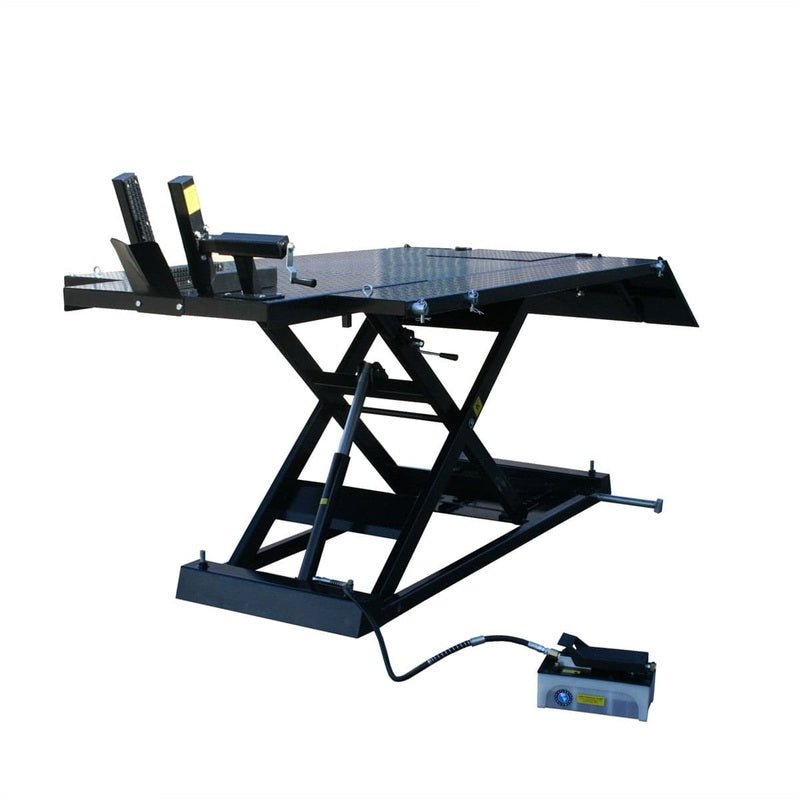

Atlas HI-RISE 1500 Motorcycle/ATV Lift

Description

The Atlas® HI-RISE 1500 is one of the industry’s most popular motorcycle and ATV lifts. This lift has a manufacturer rating of 1650 lbs. but we rate the lift at 1500 lbs., because we always under rate our weight capacities. The HI-RISE 1500 is powered by a high quality air/hydraulic pump which is included. This lift requires 100 PSI from an outside air source (not included).

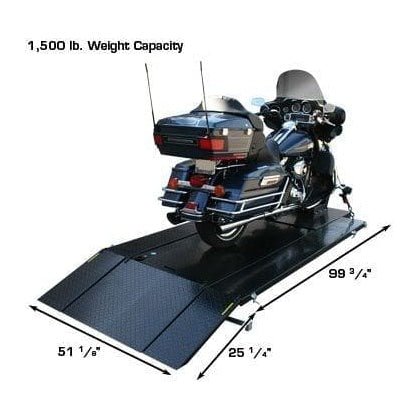

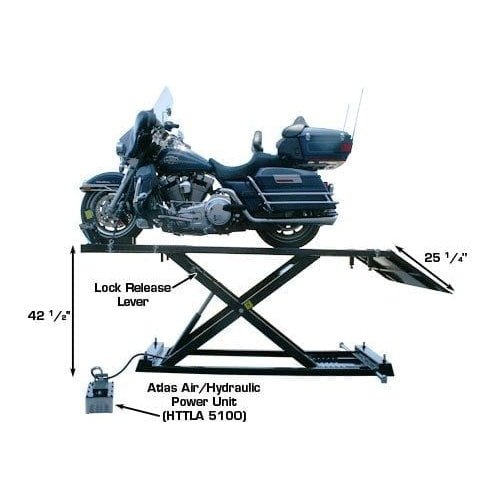

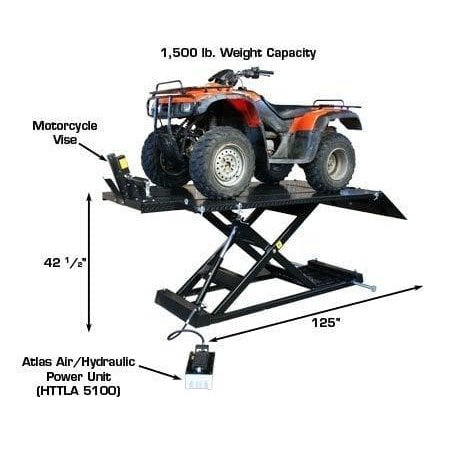

The Atlas® HI-RISE 1500 has an extra tall lift height of 43 inches. This increased lifting height makes it easier to work on vehicles while the operator is standing. This lift comes standard with a chopper extension making the center table 100 3/4 inches long and able to accept some of the longest choppers. The lift also comes standard with a side extension kit, with an overall table width of 51 1/8 inches, and is able to easily lift ATV’s, UTV’s, Golf Carts, Lawnmowers and other four wheel vehicles. The HI-RISE 1500 is the perfect addition to any service department of professional motorcycle dealers or equipment service shop or even a homeowner who wants to work on bikes or ATV’s in their own garage.

This is a complete motorcycle/ATV lift and besides the features above includes an adjustable front (padded) wheel vise and a removable rear drop out section. The Atlas® HI-RISE 1500 has a wide solid base for greater stability and which incorporates screw casters that can be lowered to move the lift and retracted when working.

Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53′ truck.

Features

• 1,500 lb. Capacity
• Extra Tall 42 1/2″ Full Lift Height
• Diamond Plate Surface
• Air/Hydraulic Operated (Pump Included, External Air Supply Required)
• 6 Locking Heights
• Chopper Extension Included
• Side Extension Kit Included
• Removeable Drop Out Section
• Front Wheel Vise Included
• Portable with 4 Retractable Casters
• Shipping Weight: 800 lbs.
• 1 yr Parts Only Warranty

Specifications

Documents

Atlas® HI-RISE 1500 Document
