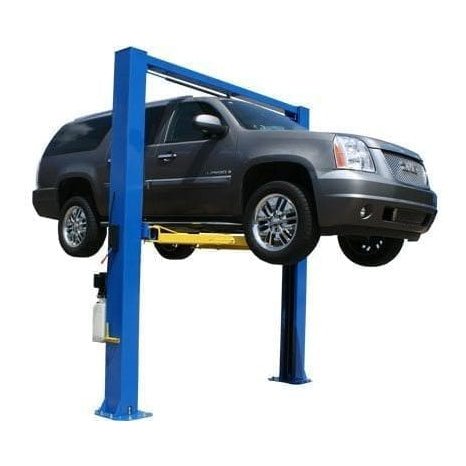

Atlas OHX10000X 10,000 lb Extra Tall 2-Post Lift

Description

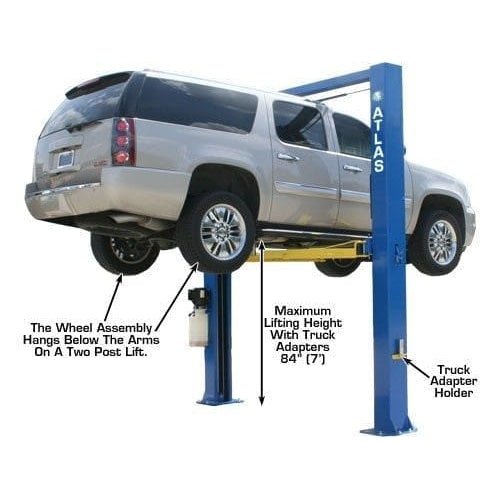

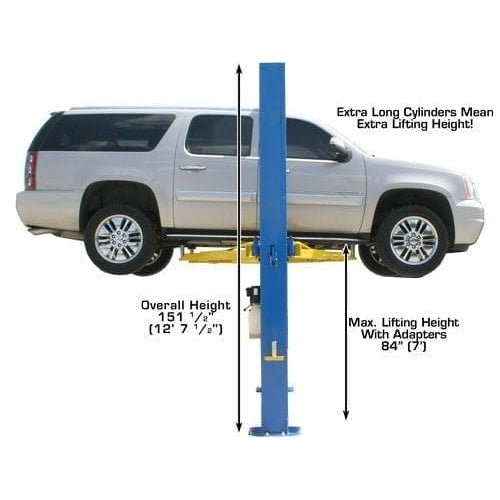

The Atlas® OHX10000X two post commercial grade above ground lift is the perfect choice for those large commercial repair facilities or the “Mr. Homeowner” who demand the highest quality at the absolute best price. The Atlas® OHX10X is a TRUE 10,000 lb. capacity two post lift that offers a great value to the customer.  Due to the drive through width, arm length and arm style the Atlas® OHX10000X was engineered and manufactured to lift a wide range of vehicles, specifically longer wheel based vehicles such as a one-ton diesel dually. Extra lifting height and extra width between the columns allows the operator to work on varied sizes of vehicles and offers a “fudge factor” of about 6 inches when “driving through” to another part of the building or lifting the van or “ladder truck”. If you are over 6′ 1″, the Atlas® OHX10X has longer cylinders which allow the vehicle to be “lifted” about 3 inches higher than many other lifts.

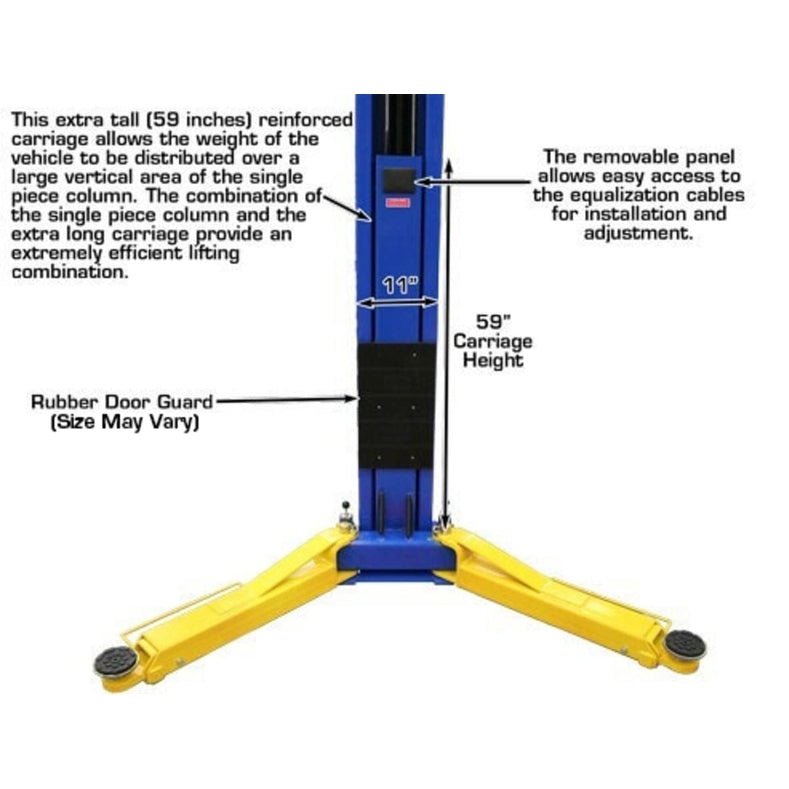

The Atlas® OHX10X incorporates a single piece 12′ 7″ formed column and an extra-long carriage that provides maximum column and arm strength to lift and support a 10,000 lb. vehicle. The single piece columns require the customer to have a ceiling of at least 13 feet to stand the column.

Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53′ truck.

Features

• 10,000 lb. Capacity
• Commercial Grade
• Extra Tall & Extra Wide

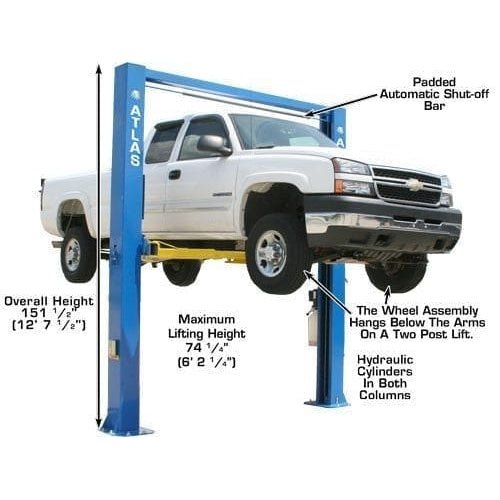

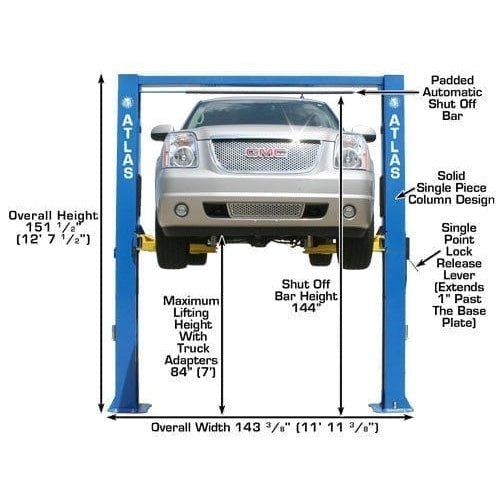

• Overall height: 152″ (12′ 8″)

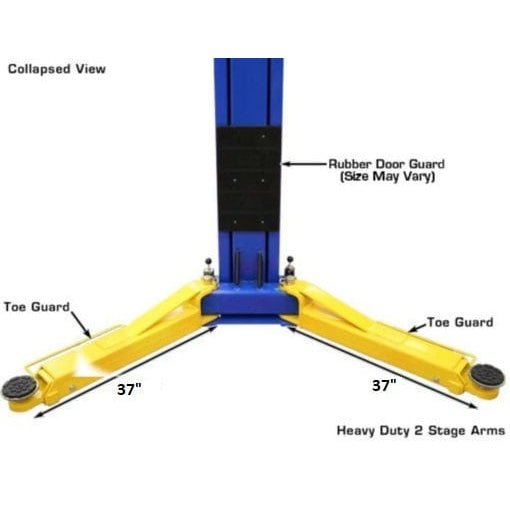

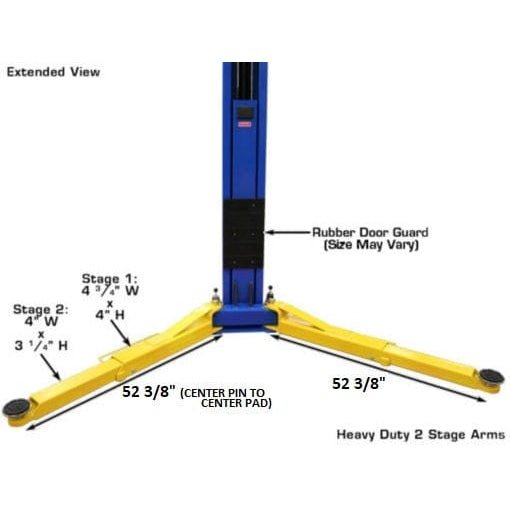

• Symmetric arms
• Automatic Arm Restraints
• “Padded” Shut-Off Bar

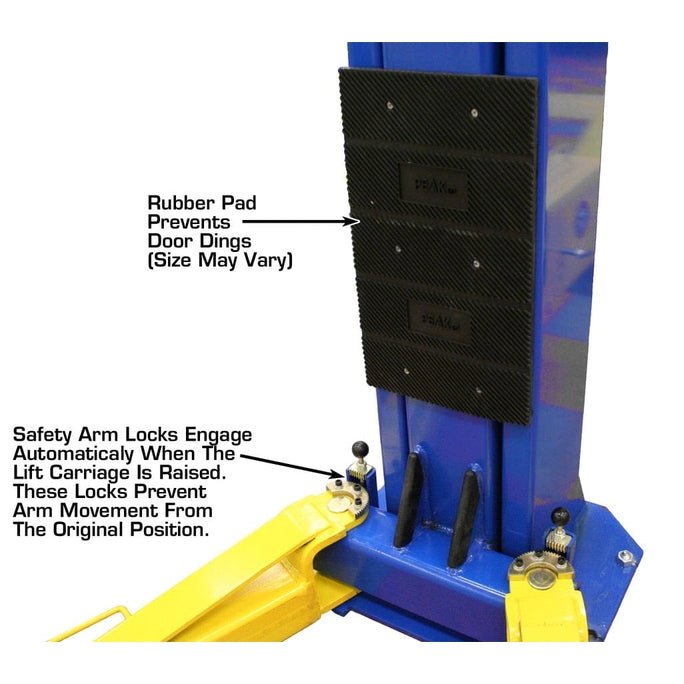

• Rubber Covers on Carriages

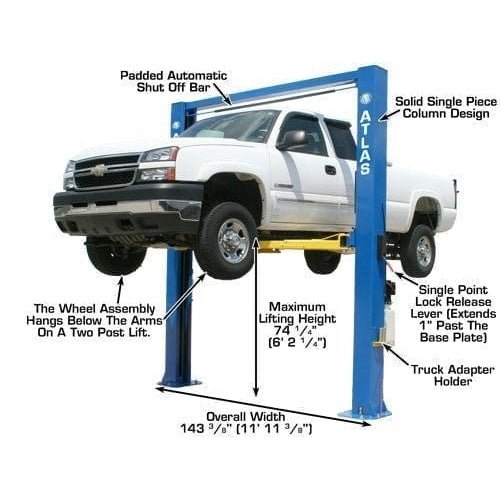

• Single Point Lock Release

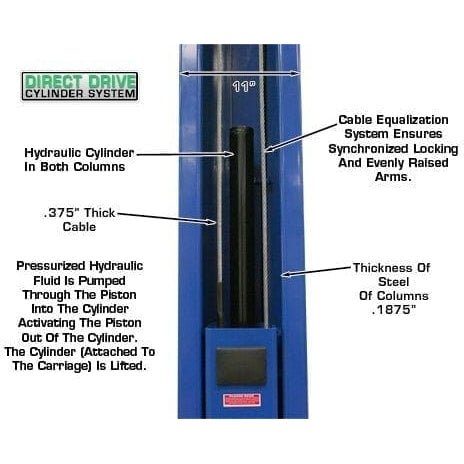

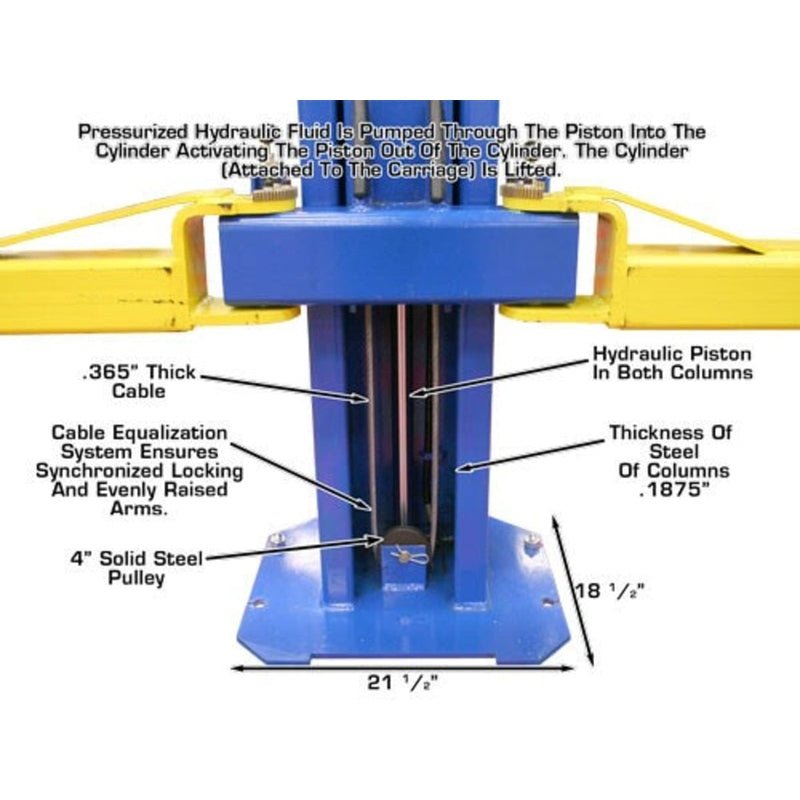

• Dual Direct-Drive Cylinders
• Powder Coat Finish
• Free 12 Piece Truck Adapter Set
• Mounting Hardware Included
• Shipping Weight: 1,665 lbs
• 5 yr Structural – 2 yr Hydraulic Warranty – Parts Only

Specifications

Documents

Atlas® ATTD-OHX10000X Manual
