Atlas Platinum PVL12 ALI Certified 12,000 lb Overhead 2 Post Lift
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
Original price was: $9,599.00.$7,799.00Current price is: $7,799.00.
Out of stock
Out of stock
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
Description

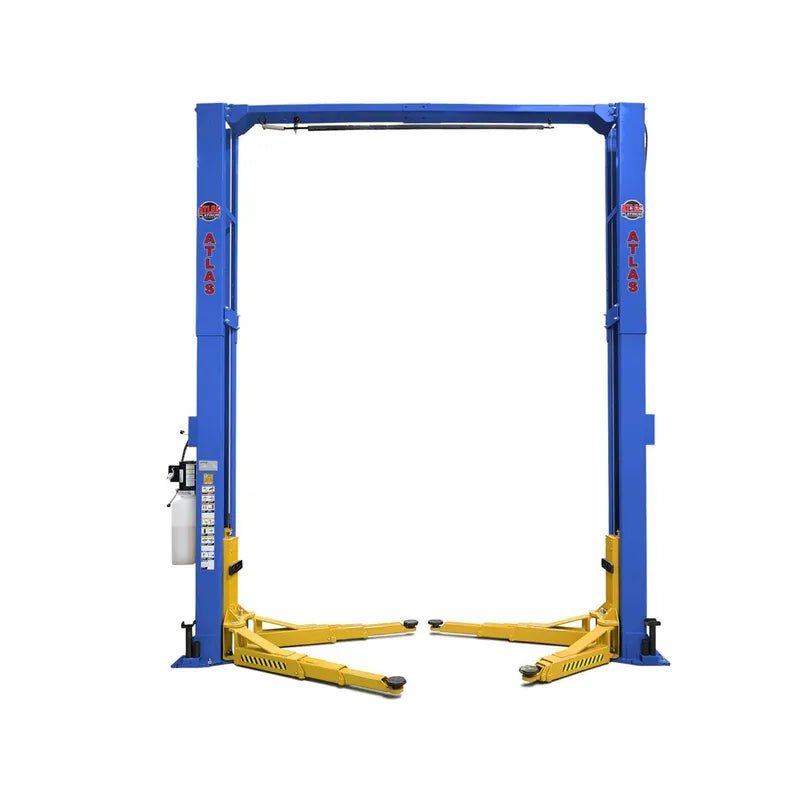

The Atlas® Platinum PVL12 is an ALI Certified two post commercial grade 12,000 lb. capacity Heavy-Duty lift designed with the professional shop in mind. The low pad height allows this lift to accommodate both long wheel base trucks and passenger cars. The extra distance between the columns accommodates wider vehicles or vehicles with wide rearview mirrors. The extra height is perfect for tall vans and box trucks.
The Platinum PVL12 is also ALI certified and backed by one of the industry’s best warranties for an added peace of mind.
The Atlas® Platinum PVL12 features a premium ALLY power unit which is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.
Please note that if you order an Atlas item, your delivery location must be able to accommodate a 53′ truck.
Features

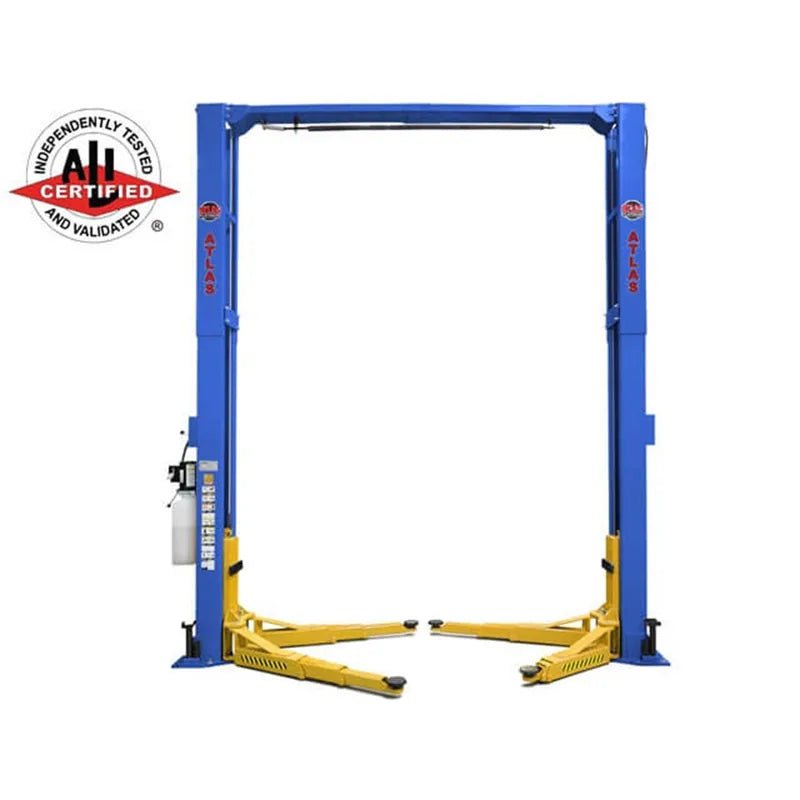

- ALI Certified Lift
- 12,000 lb. Capacity
- Commercial Grade
- Extra Tall & Extra Wide

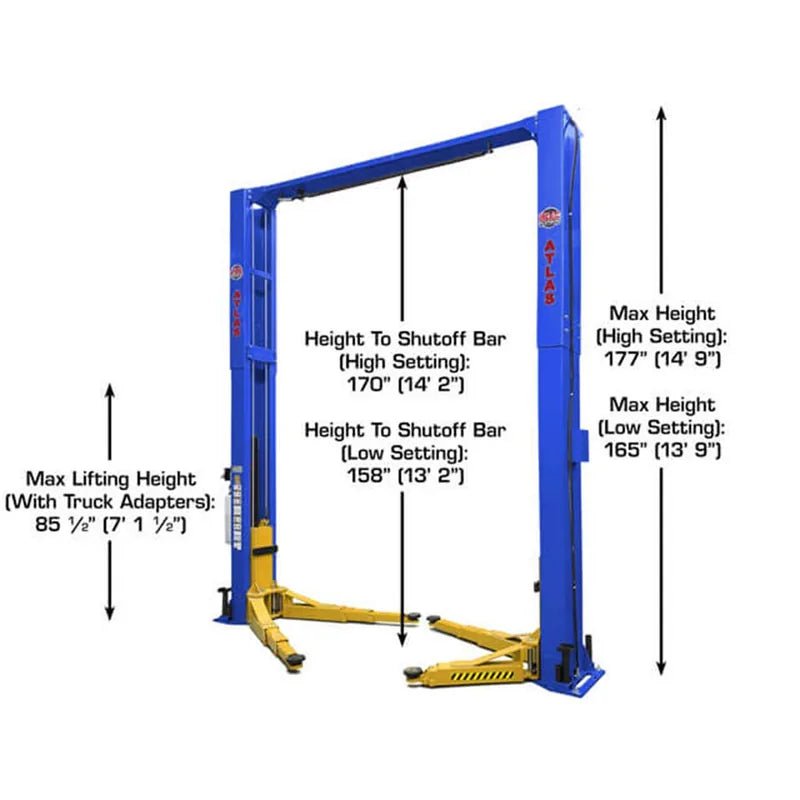

- Adjustable Height 165″ (13′ 9″) or 177″ (14′ 9″)

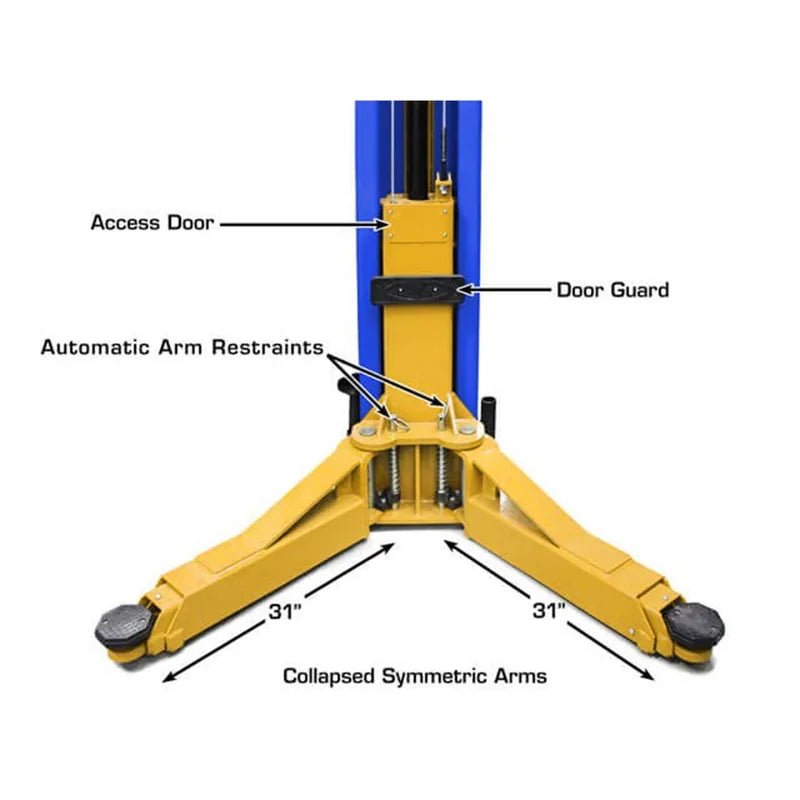

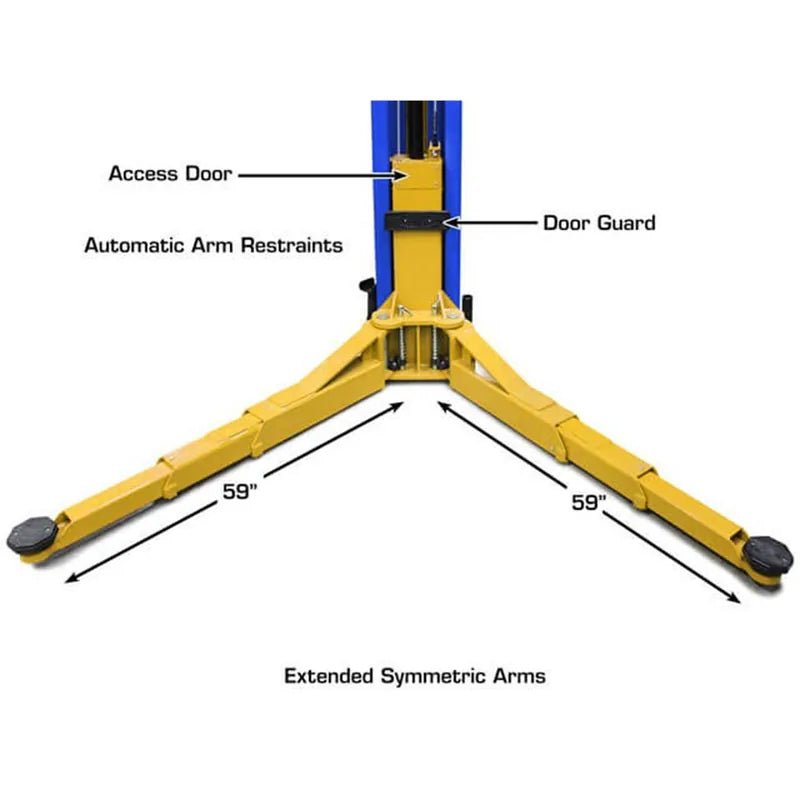

- 3-Stage Symmetric Arms

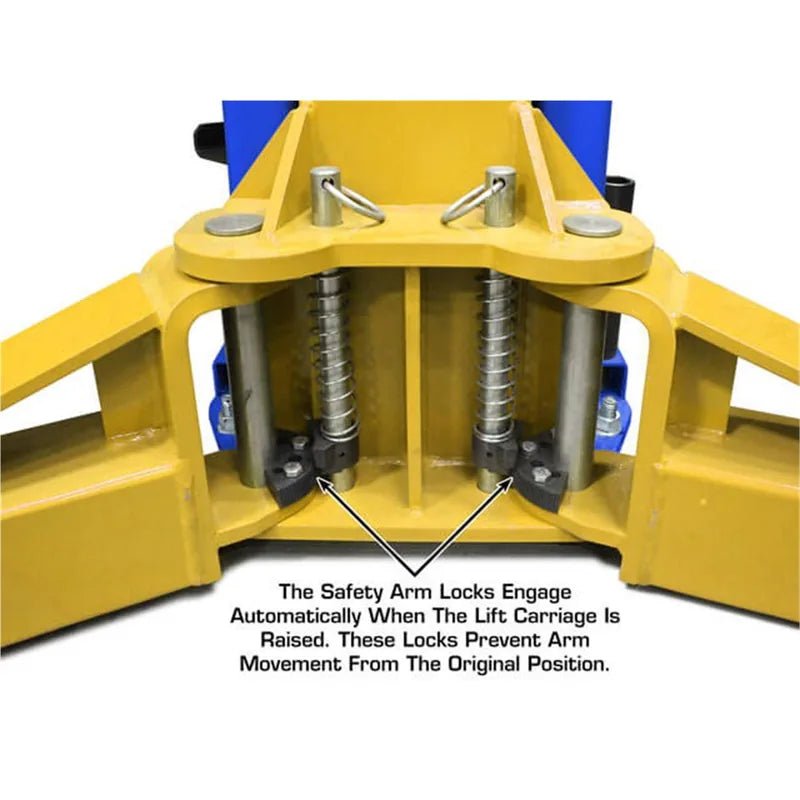

- Automatic Arm Restraints
- “Padded” Shut-Off Bar
- Thick Rubber Door Guards on Carriage
- Single Point Lock Releases

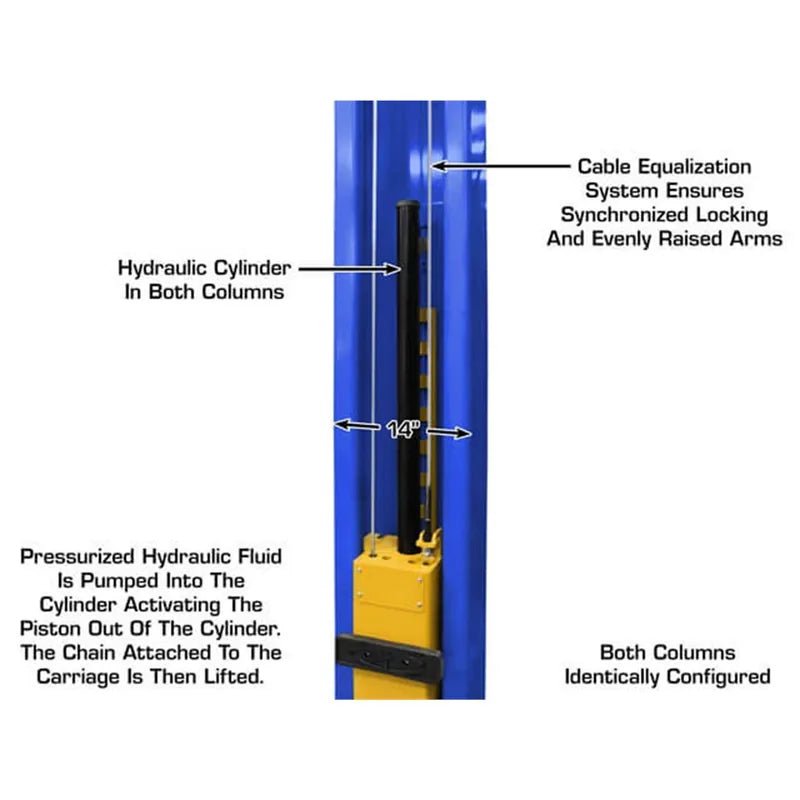

- Direct-Drive Cylinders
- Powder Coat Finish

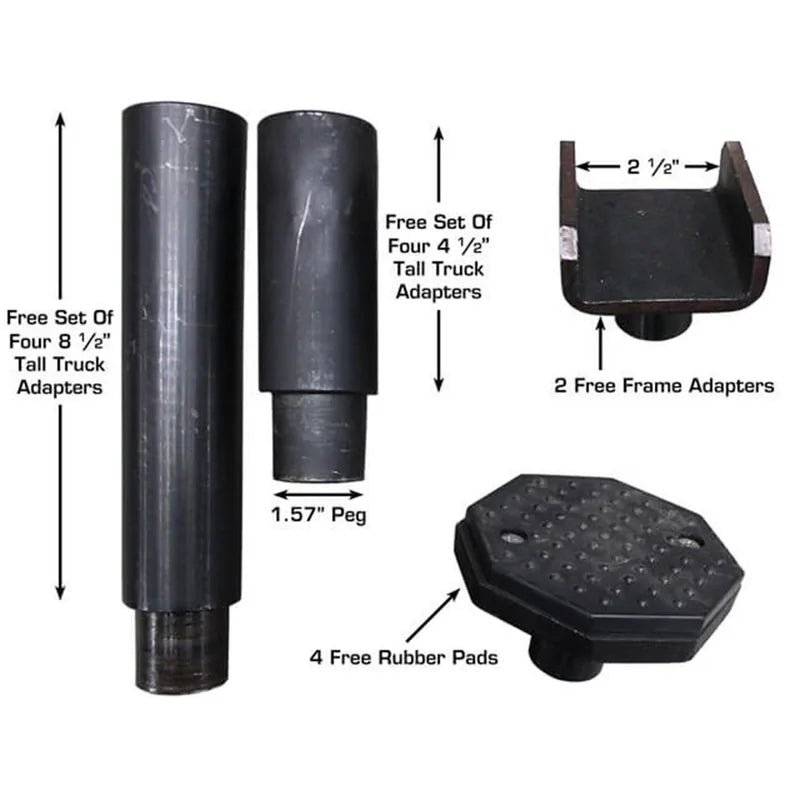

- Free 8 Piece Truck Adapter Set
- Mounting Hardware Included
- Standard with Premium ALLY Powerunit

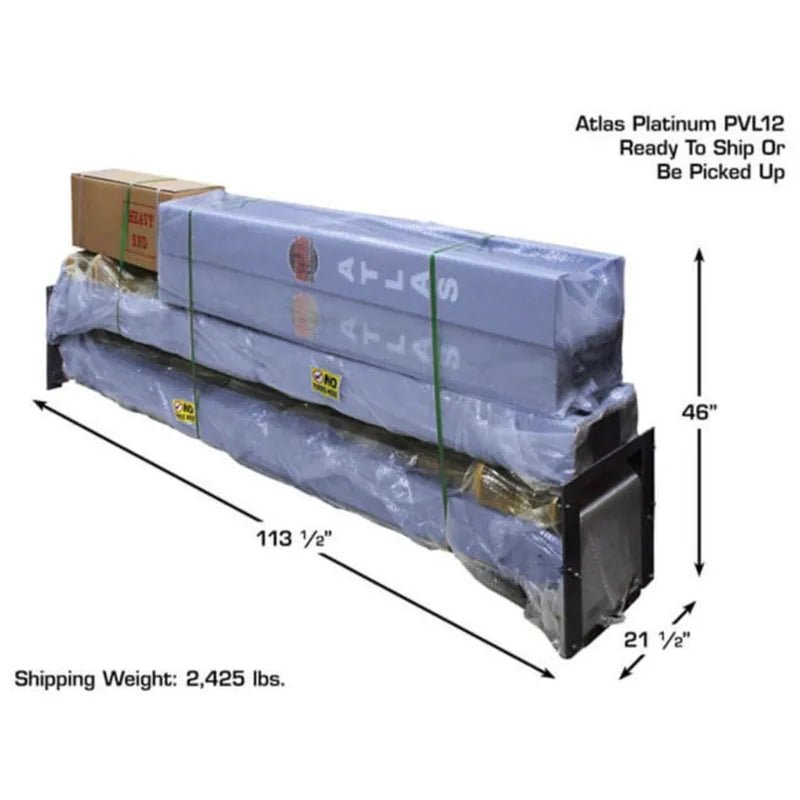

- Shipping Weight: 2,425 lbs.
- 5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty
Specifications
| Atlas® Platinum PVL12 Specifications | ||
| Capacity | 12,000 LB. | |

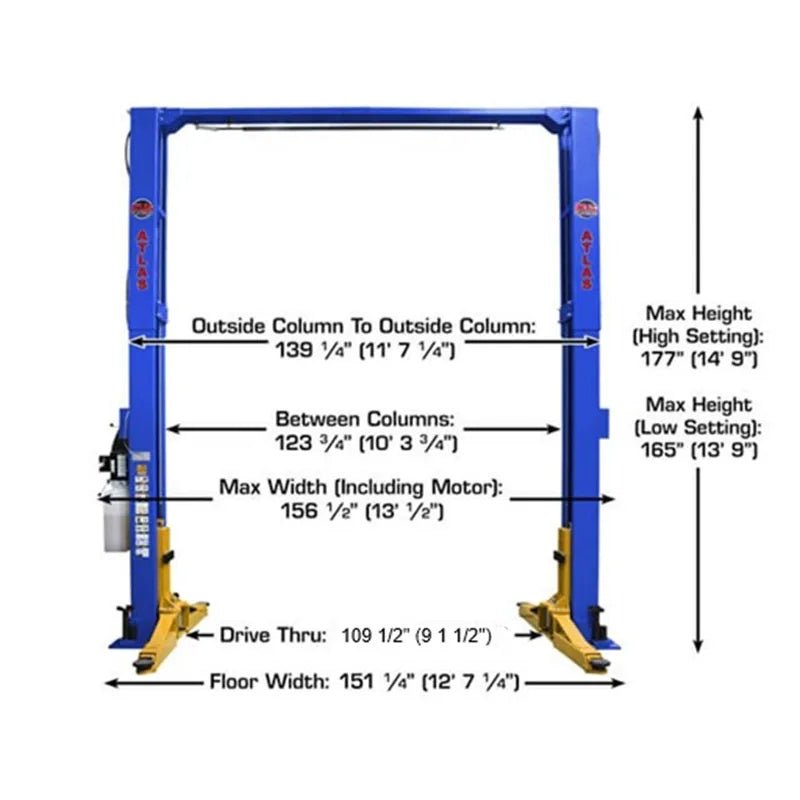

| Overall Height | 165″ (13’ 9”) or 177” (14’ 9”) | |
| Overall Floor Width | 150 3/8″ (12’ 6 3/8”) | |
| Outside Column to Outside Column | 139 1/8″ (11’ 7 1/8″) | |
| Maximum Lift Height (Without Adapters) | 73 5/8″ | |
| Maximum Lift Height (With Adapters) | 85 1/2″ | |
| Minimum Arm Height | 4 1/2″ | |
| Inside Column | 122 5/8” (10’ 2 5/8”) | |
| Drive Thru | 109 5/8″ (9’ 1 5/8”) | |
| Column Size | 7 1/2″ x 14 1/2″ | |
| Column Thickness of Steel | 6mm | |

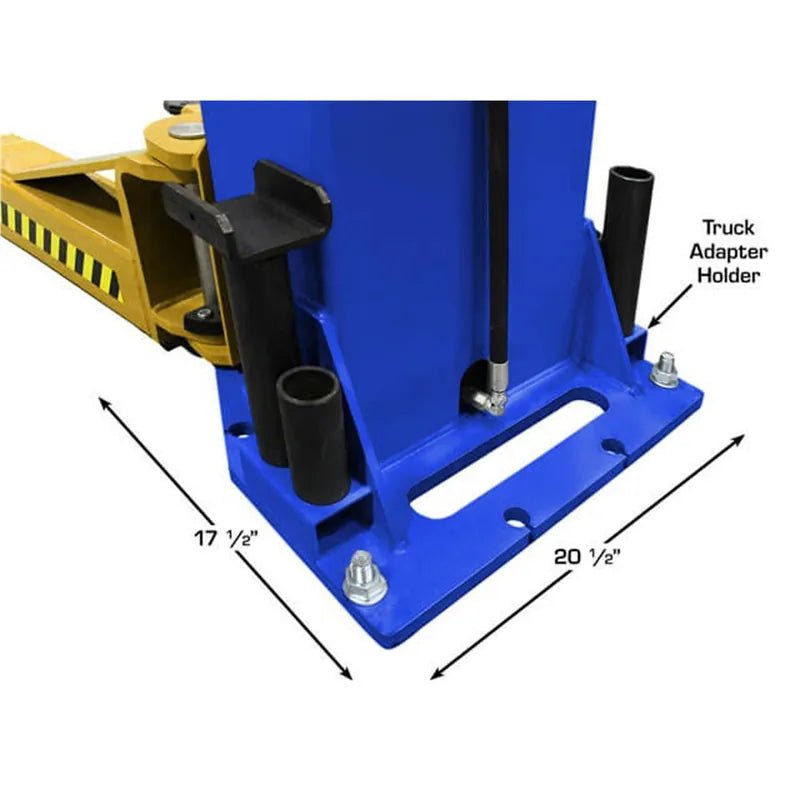

| Base Of Lift | 17 1/2″ x 20 1/2″ | |
| Motor/Electrical Requirement | 220 volt single (1) phase. A 30 amp breaker is recommended |
|
| Oil Requirement | 3-5 Gallons AW32/AW46 (NOT INCLUDED) | |
| Shipping Weight | 2,425 LBS. | |
| Adapter Heights | 4 Each 4.5”, 8.5” | |
| Arm Hole/Adapter Peg Size | 1.57” | |
| Requires a minimum of 6″ of concrete with a 3000 psi. rating | ||
