Black Widow Aluminum Extra-Wide Folding ATV Ramp – 6’5″ Long – 1,500 lb. Capacity

Black Widow TF-7754 Extra-Wide Folding ATV Ramp — 54 Inches of Loading Width

Loading an ATV on a narrow ramp means lining the machine up perfectly and hoping a front wheel does not walk off the edge halfway up. On a wet morning, on uneven ground, with the engine pulling, that is a real way to drop a quad.

The Black Widow TF-7754 solves it with width. It is a 54-inch wide folding aluminum ramp rated to 1,500 lbs, and it folds down to 17-1/2 inches so it still fits behind the seat.

Why Choose the TF-7754

Wide enough to drive, light enough to carry.

• 54 in of loading surface — a full-size quad sits on the ramp with room either side, so a wheel wandering an inch does not matter.
• 1,500 lb capacity at 33.5 lb of ramp — high-strength aluminum carries the load without becoming a two-person lift.
• Folds to 17-1/2 in wide — stands in a truck bed or against a garage wall instead of taking the whole trailer floor.
• Two safety straps in the box — the ramp is tied to the vehicle before the first wheel touches it.

What’s Included

• Black Widow TF-7754 extra-wide folding aluminum ATV ramp
• Two adjustable safety straps
• Rubber-coated ramp fingers, fitted

Made For

Built for anyone loading a quad onto a truck or trailer on their own.

• ATV and quad owners loading from a tailgate
• Trailer loading where the deck sits low
• Hunting, farm and property use over rough ground
• Powersports dealers moving machines around the lot
• Anyone loading solo with nobody to spot the wheels

Features

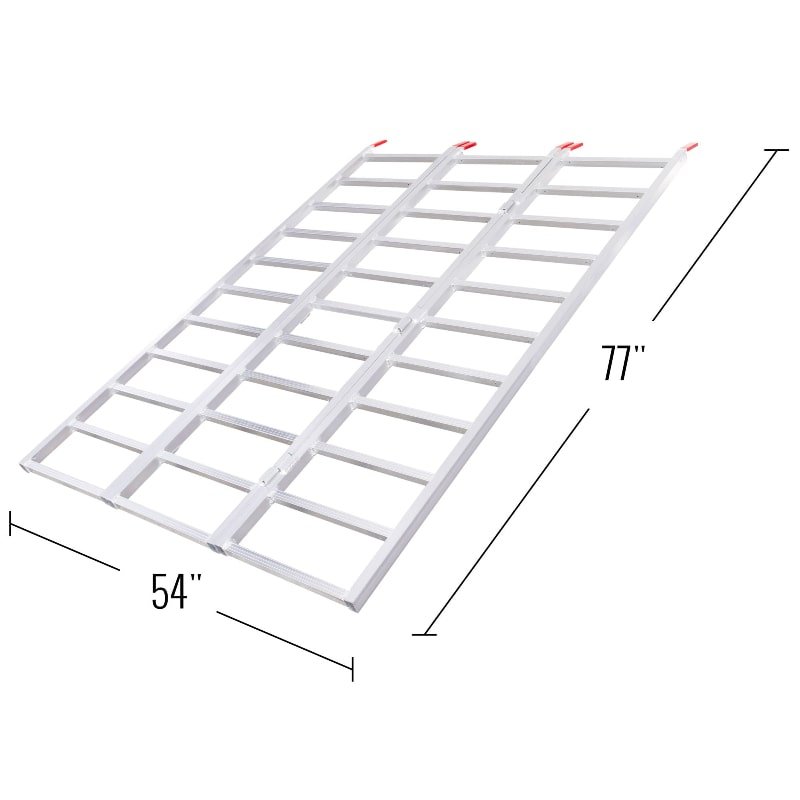

• 54 in overall width — extra-wide surface for full-size ATVs
• 1,500 lb maximum capacity — covers utility quads and their cargo
• 6 ft 5 in length — a workable angle to a standard tailgate
• 33.5 lb ramp weight — one person can set it and stow it
• High-strength aluminum square tubing — will not rust out on a trailer
• Heavy-duty hinges — the fold is the strong point, not the weak one
• Rubber-coated ramp fingers — grip the tailgate without scratching paint
• Folds to 17-1/2 in wide by 5-1/2 in thick — stores flat and narrow

Width Is What Stops the Wheel Walking Off

Most folding ATV ramps land somewhere between 40 and 50 inches. That sounds like plenty until a utility quad with a 48-inch stance is halfway up and drifting.

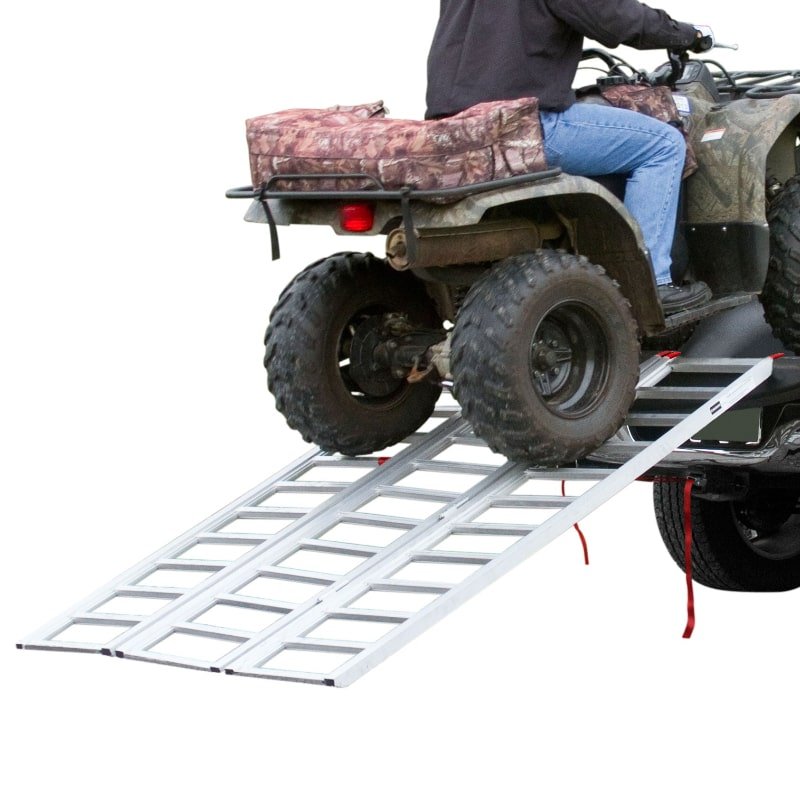

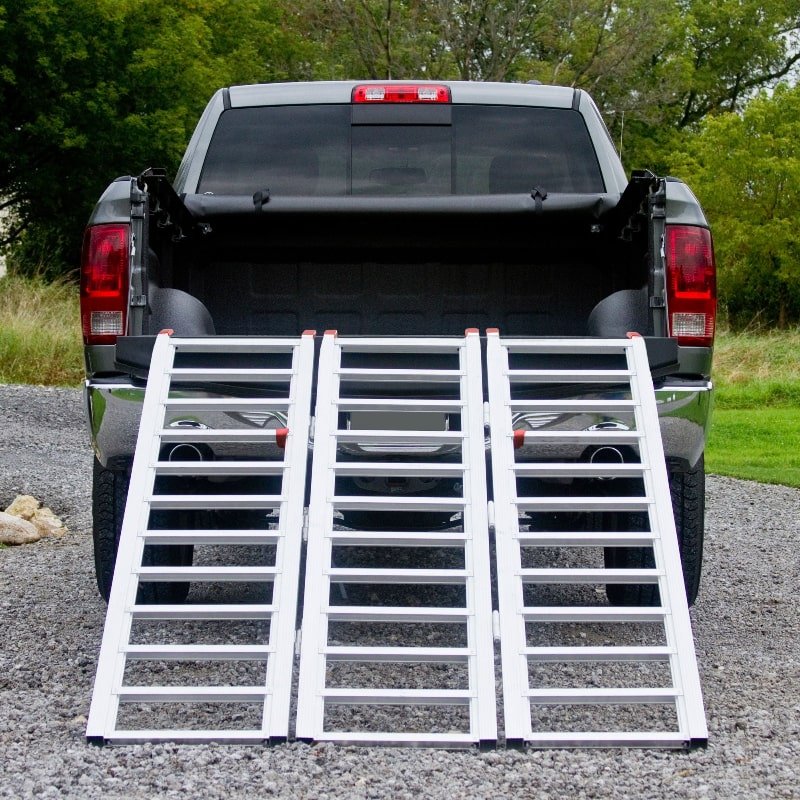

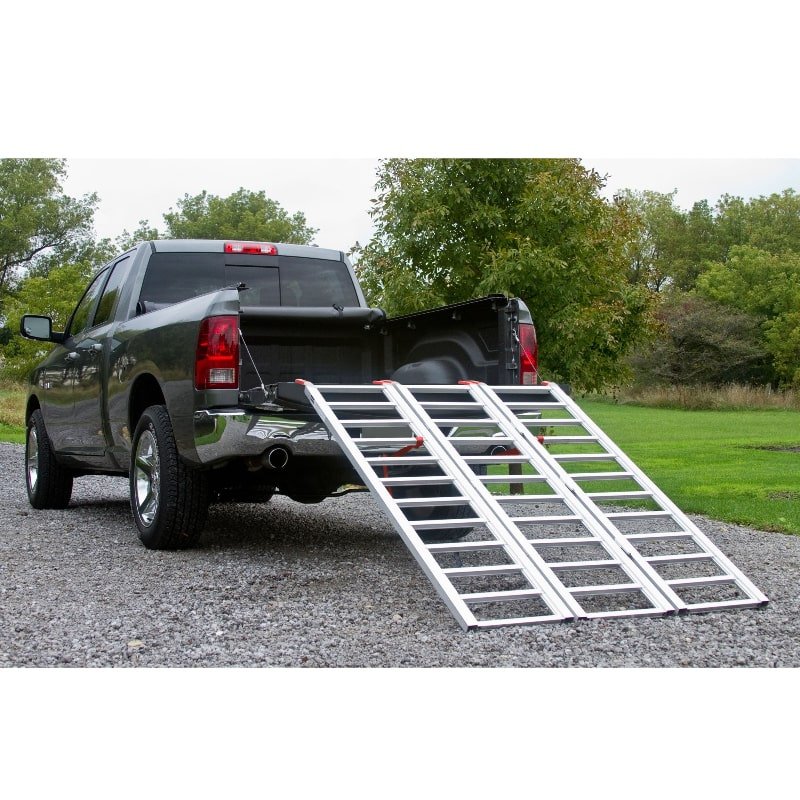

At 54 inches the TF-7754 gives margin on both sides of a full-size machine. The rider can climb it looking ahead rather than watching the tyres, which is the difference between a routine load and a slow, careful one.

The surface is built for grip in the wet as well as the dry, so an early start or a rained-on trailer does not change how the ramp behaves under power.

Aluminum Keeps It a One-Person Job

A steel ramp this wide would be a two-person lift and would rust where the finish chips. This one is high-strength aluminum square tubing, so the whole ramp weighs 33.5 lbs — light enough to pull out of a truck bed, set up and stow again single-handed.

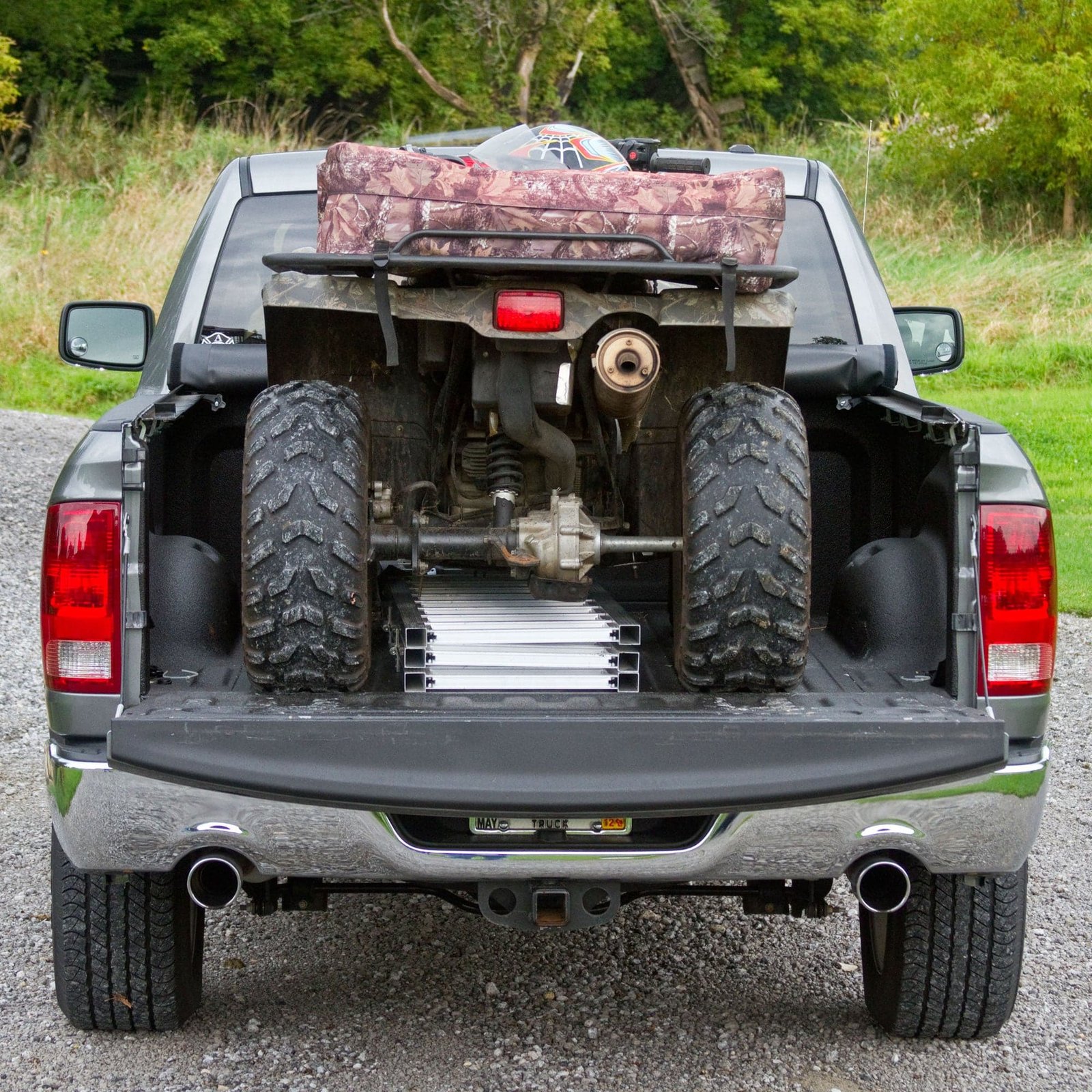

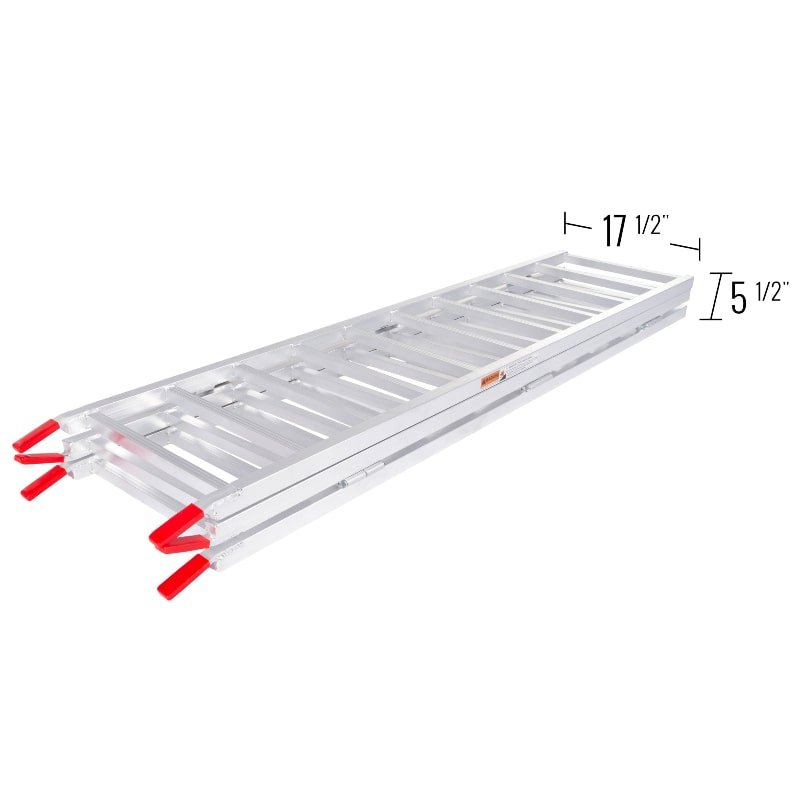

Folded it measures 17-1/2 inches wide and 5-1/2 inches thick. That stands against a garage wall or lies flat under the gear in a trailer instead of eating the whole floor.

The heavy-duty hinges are the part that decides how long a folding ramp lasts, and the rubber-coated fingers keep the top end planted on the tailgate rather than creeping as weight comes on.

The Right ATV Ramp for Your Truck

To load a full-size quad on your own without watching the edges, the TF-7754 is the ramp: 54 in wide, 1,500 lb capacity, and 33.5 lb to handle.

Don’t wait — scroll back up and click the orange Add to Cart button to get this ATV ramp on its way to your shop.

Specs

Technical Specifications

Manual

Owner’s Manual

Download the Black Widow TF-7754 instruction manual for assembly, setup and safety information. Download Manual
