Black Widow Aluminum Punch Plate Folding ATV Ramp 7′ 9″ L x 53-1/2″ W with 1,500 lbs Capacity

Black Widow TFP-9354 Punch Plate Folding ATV Ramp — Nearly Eight Feet of Solid Deck

The steepest part of loading a quad is always the last foot, where the ramp meets the tailgate. Short ramps make that angle sharp, and a sharp angle is where belly pans catch and rear wheels lose grip.

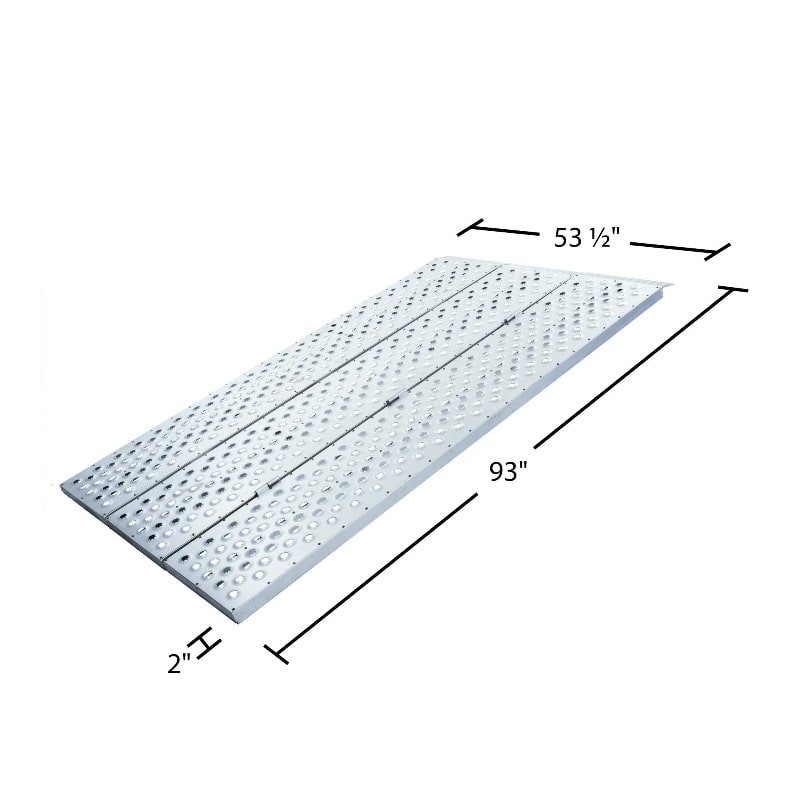

The TFP-9354 answers with length and surface. It is 7 ft 9 in long and 53-1/2 inches wide, decked in punch plate, and rated to 1,500 lbs.

Why Choose the TFP-9354

A long, solid, full-width deck.

• 7 ft 9 in of length — flattens the climb into a full-size truck bed.
• Punch plate surface — continuous grip that lets mud and water fall through rather than pack up.
• 53-1/2 in width — a full-size machine with room on both sides.
• Folds to 18-3/4 in — 70 lbs of ramp that still stands against a wall.

What’s Included

• Black Widow TFP-9354 punch plate folding ATV ramp
• Safety straps
• Rubber-coated ramp fingers, fitted

Made For

Built for loading a full-size quad into a high truck bed in poor conditions.

• Full-size utility ATVs going into a pickup
• Wet, muddy or snowy loading conditions
• Farm, ranch and property maintenance
• Hunting access where the truck is the trailer
• Anyone who needs the shallowest angle they can get

Features

• 7 ft 9 in length — among the longest single-piece folding ramps
• 53-1/2 in overall width — extra-wide loading surface
• Punch plate decking — grip across the whole surface
• 1,500 lb maximum capacity — utility quads plus cargo
• 70 lb ramp weight — heavy-gauge deck, folded for handling

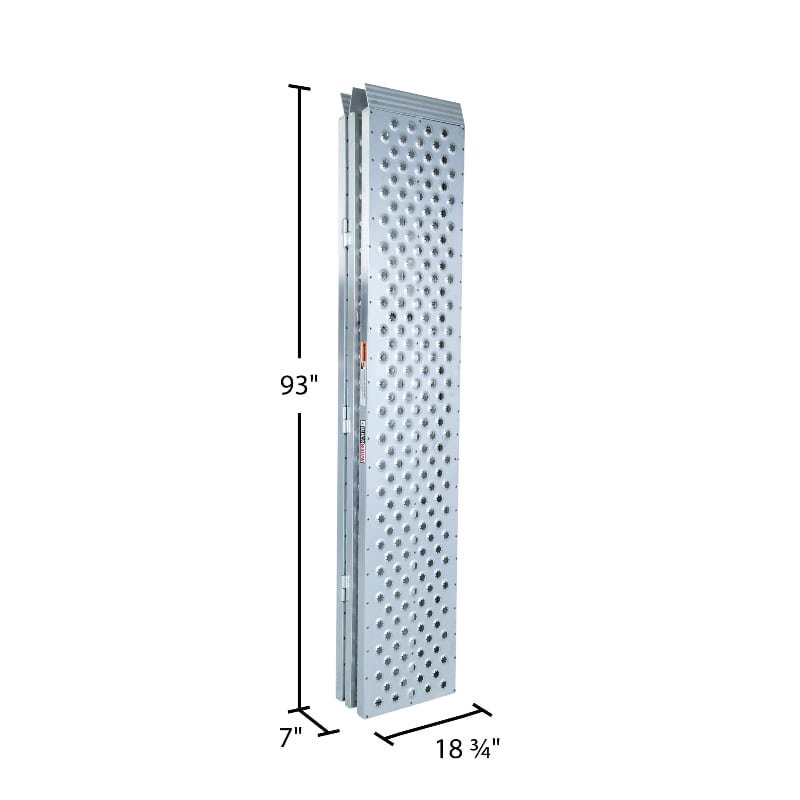

• Folds to 18-3/4 in x 7 in — narrow enough to store upright
• High-strength aluminum — rust free on a wet trailer
• Rubber-coated fingers — grip the tailgate without scratching

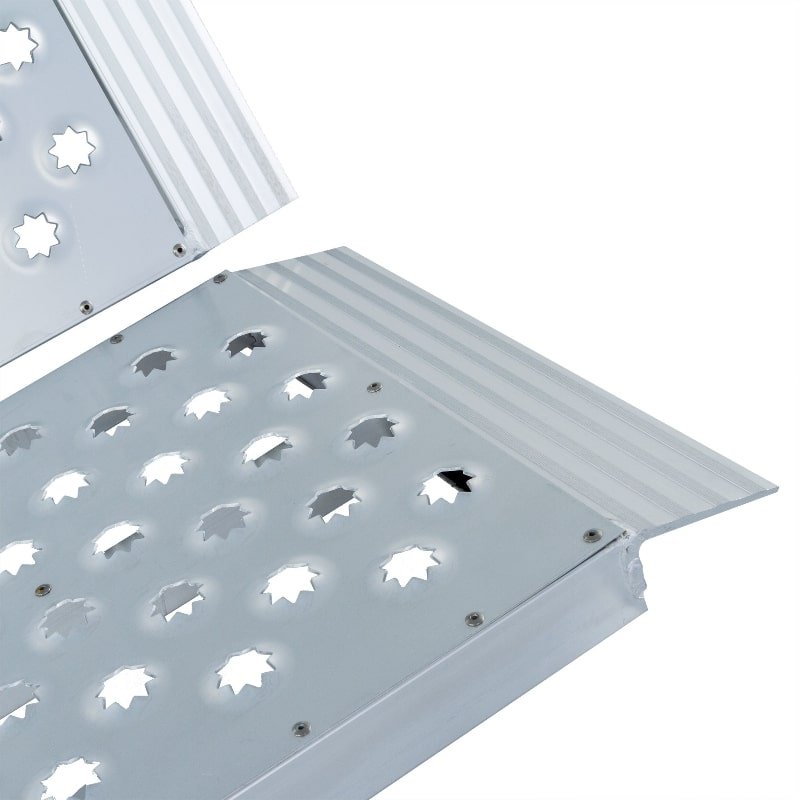

• 2 in profile — low step onto the deck at the ground end

Length Is the Cheapest Safety Feature

Approach angle is simple arithmetic. A tailgate at 34 inches over a 6 ft ramp is roughly a 28 percent slope; the same tailgate over 7 ft 9 in is closer to 22 percent.

That difference decides whether a low-slung machine touches down at the crest, and whether the rear wheels keep traction as weight transfers backwards on the climb.

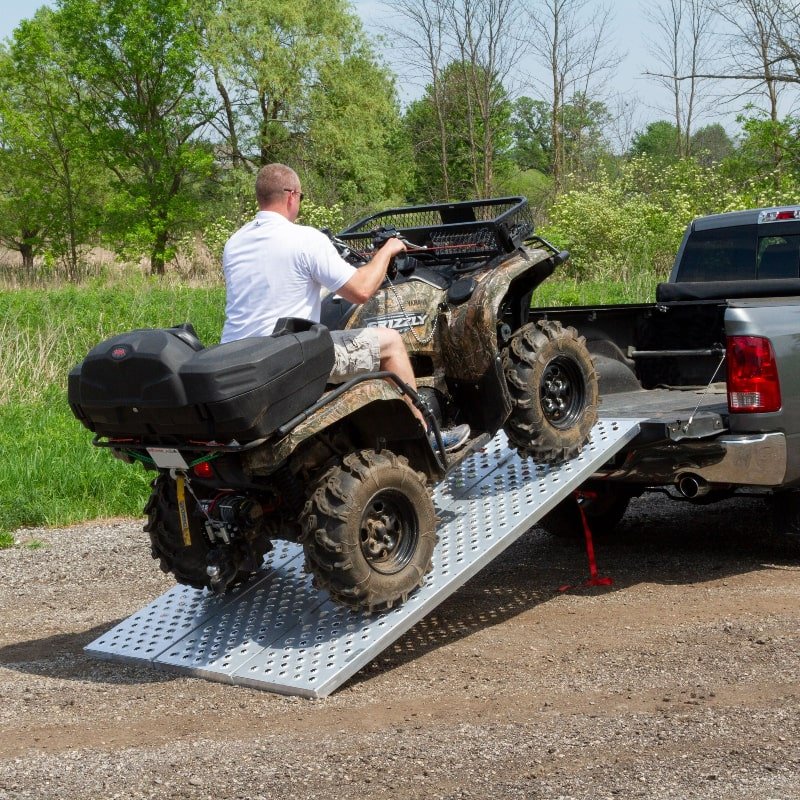

It also decides how the machine comes off. Descending a shallow ramp is controlled; descending a steep one is a matter of brakes and hope.

A Deck, Not a Ladder

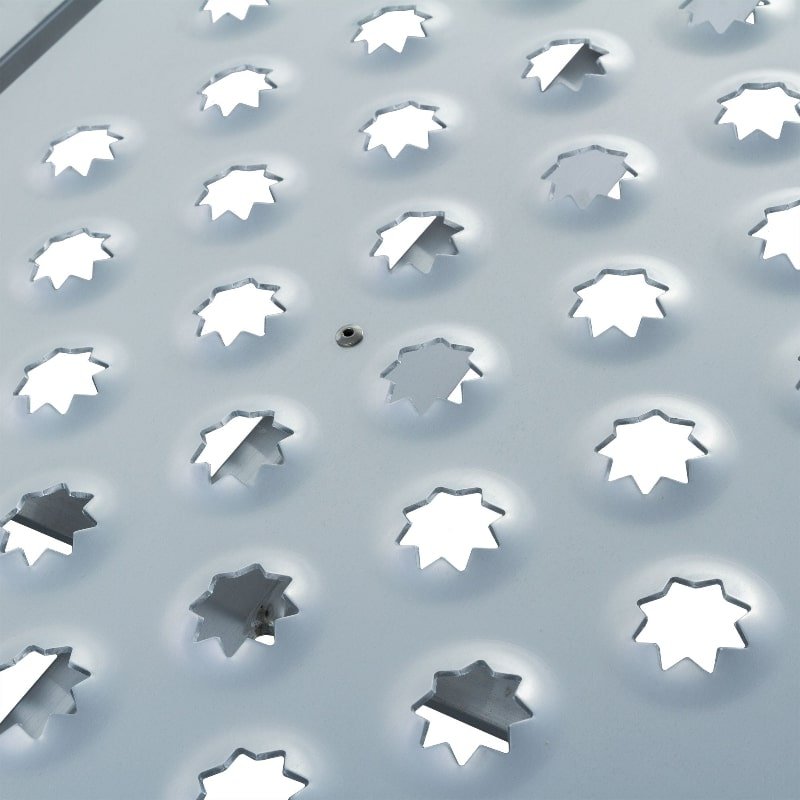

Punch plate is a solid aluminum sheet perforated across its whole area. Every hole is an edge, so tread finds grip wherever it lands — and mud, snowmelt and grit fall through instead of filling the surface.

That is the difference from a rung ramp on a bad day. Rungs rely on tread reaching a bar; a packed tyre may never touch one. A perforated deck has nothing to bridge.

The cost is 70 lbs of ramp. It folds to 18-3/4 inches wide and 7 inches thick, which is what makes that weight something you store rather than something you trip over.

The Right ATV Ramp for Your Truck

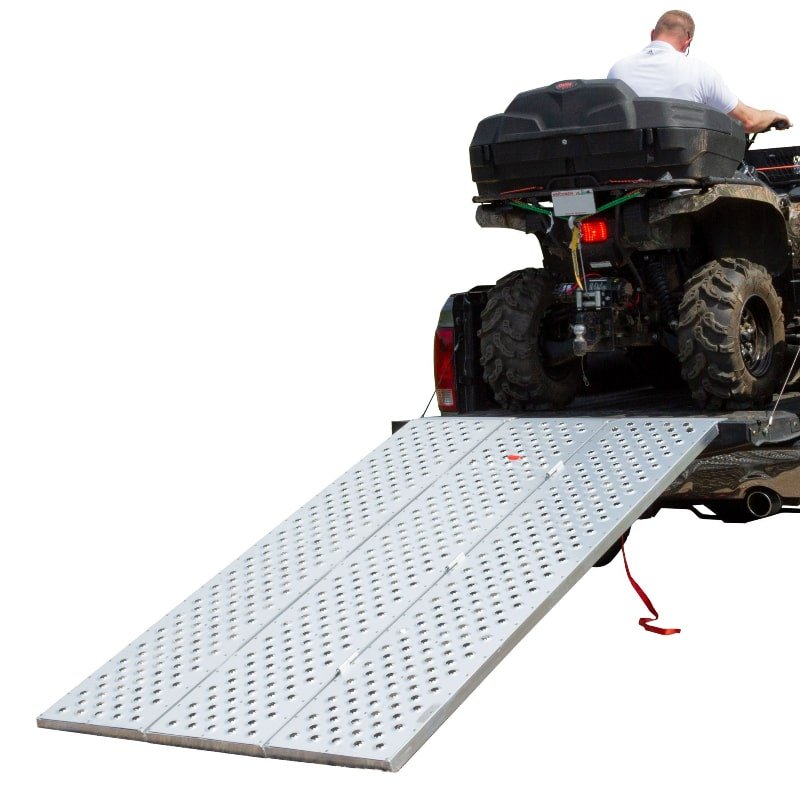

To load a full-size quad at the shallowest angle you can get, the TFP-9354 is the ramp: 7 ft 9 in long, 53-1/2 in wide, punch plate decked, rated to 1,500 lbs.

Don’t wait — scroll back up and click the orange Add to Cart button to get this ATV ramp on its way to your shop.

Specs

Technical Specifications

Manual

Owner’s Manual

Download the Black Widow TFP-9354 instruction manual for assembly, setup and safety information. Download Manual
