(Custom sizes available – please contact us for a quote)

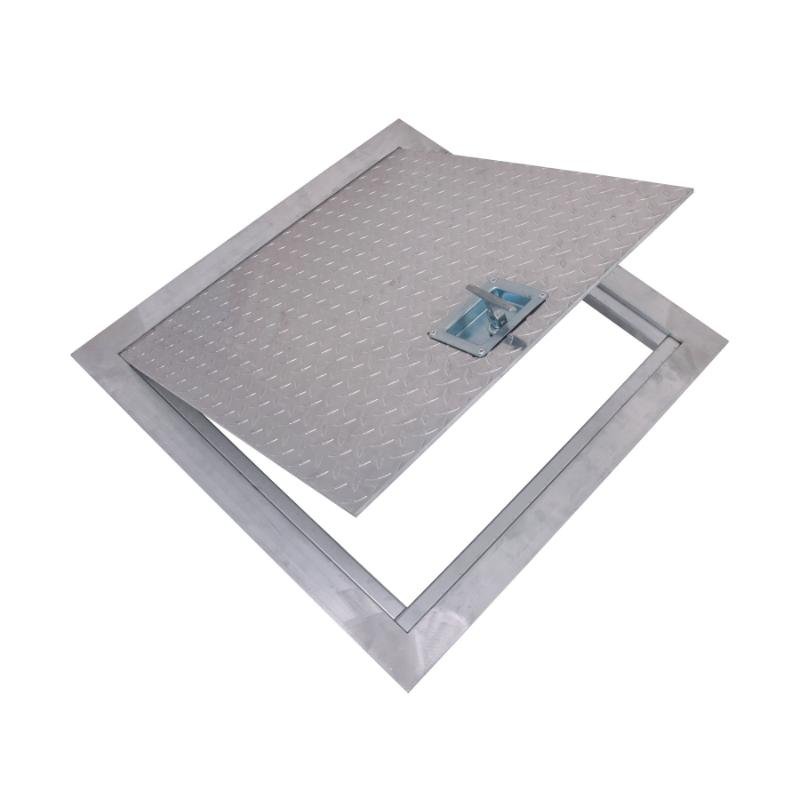

Cendrex Flush Aluminum Floor Hatch with Exposed Flange – 300 lbs PSF Capacity

The PPA flush aluminum floor hatch is designed for interior use to provide reliable and secure access between building floors. Built with a sturdy 1/4″ thick aluminum diamond plate (or smooth finish) cover and a 1/4″ thick aluminum frame, it is ideal for installation in existing cement floors or poured-in-place concrete. The hatch supports loads of up to 300 pounds per square foot (PSF).

• Installation: Floors
• Material: Aluminum
• Locking mechanism: Recessed handle operated cam latch
• Hinge: Piano hinge
• Flange: 2″ Exposed flange
• Load Capacity: 300 lbs per square foot (PSF)

Specifications

Material
1/4″ aluminum diamond plate (smooth finish available)

Hinge
Heavy duty aluminum continuous piano hinge, 0.08″
Hinge Location: Hinges must be located on the second dimension (height)

Locking mechanism
Recessed handle operated cam latch for floor hatches

Flange
2″ exposed flange

Frame
2″ × 2″ × 1/4″ aluminum angle

Rough opening
Hatch size + 1/2″ (13 mm)

Packaging
Individually wrapped, 1 door per box

Components
Aluminum stiffeners (only for doors with dimensions exceeding 24″ × 36″)

Dimensions
