KATOOL KT-198L Auto Body Frame Straightening Machine Professional 236.4″x84.3″ Platform 100 KN Pulling Capacity 7,700 lbs Load CE Certified

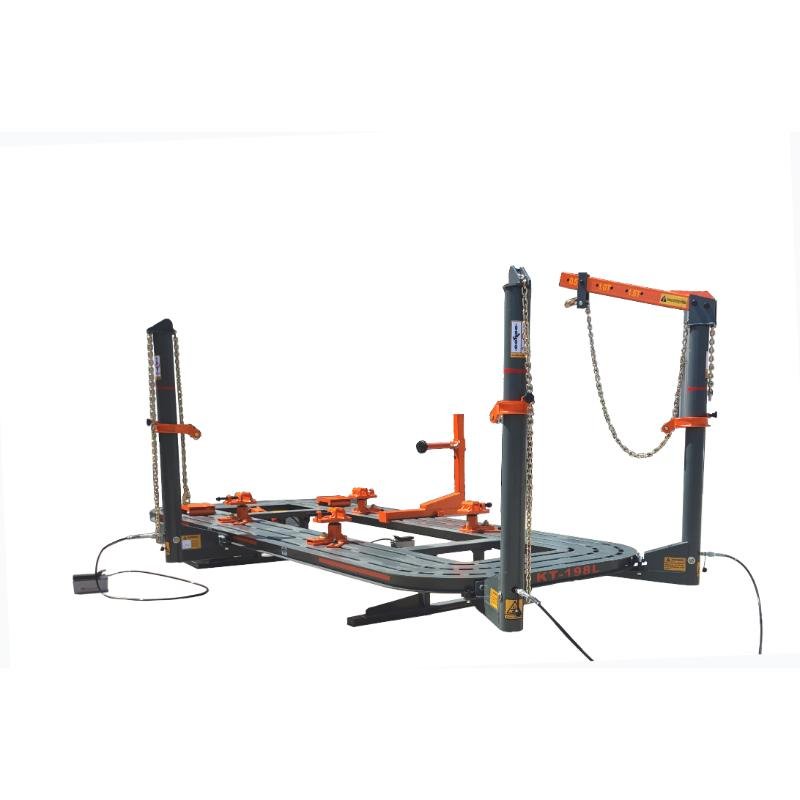

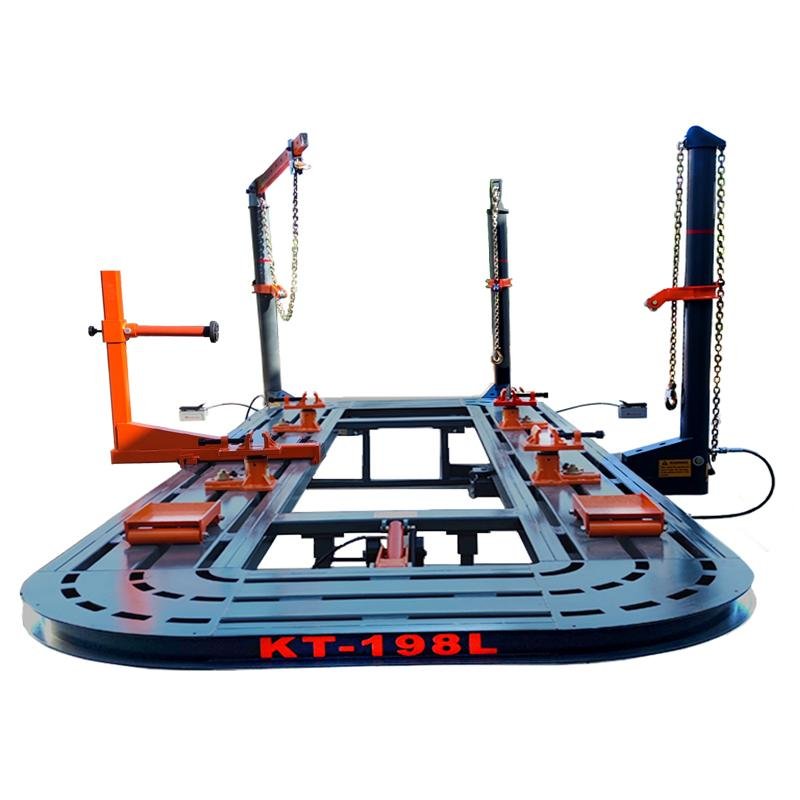

Katool KT-198L Full-Size Auto Body Frame Straightening Machine

Severe collision damage does not come out in one direction. Pull the rail straight and the apron is still twisted; move the car to chase the next angle and the first correction goes with it.

The Katool KT-198L is a 236.4 in frame rack built to pull from anywhere. A 100 kN — 10 ton — tower works through a full 360° radius, and the leading arm applies force from multiple directions on a vehicle that never has to be unclamped and repositioned.

Why Choose the KT-198L

It corrects complex damage in one setup, which is where the hours in a structural job actually go.

• Leading arm pulls from multiple directions — complex damage patterns get corrected without unclamping and re-anchoring the car.
• 100 kN (10 ton) pull across a 360° radius — the tower reaches every point on a 236.4 in platform.
• Tilt hydraulic platform, 4.3 to 67 in — the car loads at ramp height and rises to a working height that keeps techs off the floor.

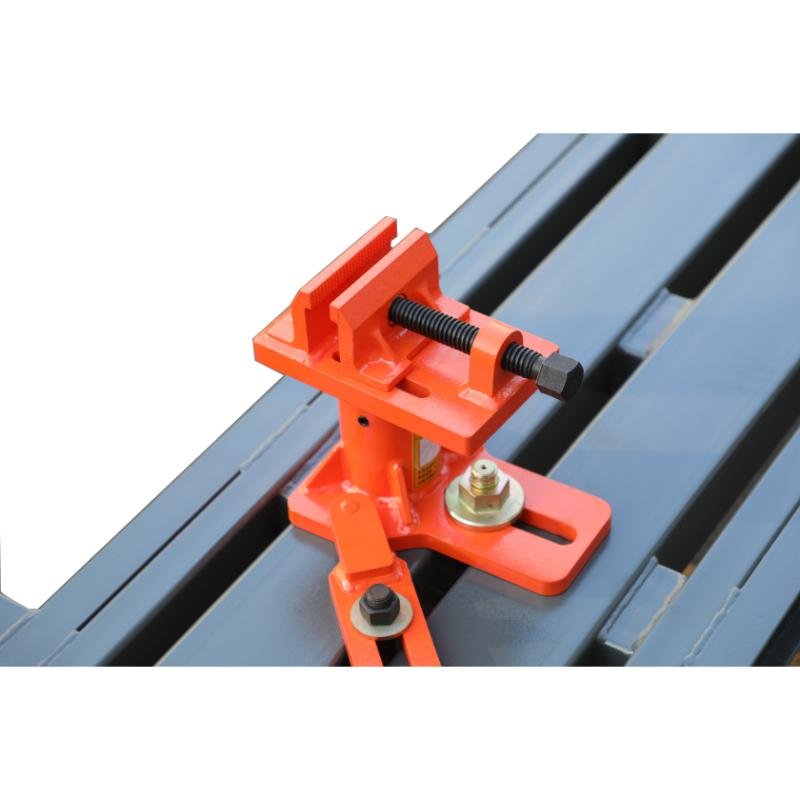

• Quick-fix clamp jaws, clockwise to lock — anchoring is a screw turn, not the first half hour of the job.

Made For

Built for shops where structural repair is the daily work, not the exception.

• Full-service collision repair centers
• Insurance-approved structural repair shops
• Dealership body departments
• Fleet and municipal maintenance facilities
• Restoration and custom fabrication shops

Features

• 100 kN (10 ton) pulling capacity — severe structural correction on passenger vehicles and light trucks
• 360 degree pulling radius — every angle available from the same anchored position
• 7,700 lb (CE certified) max load — rated and certified platform capacity

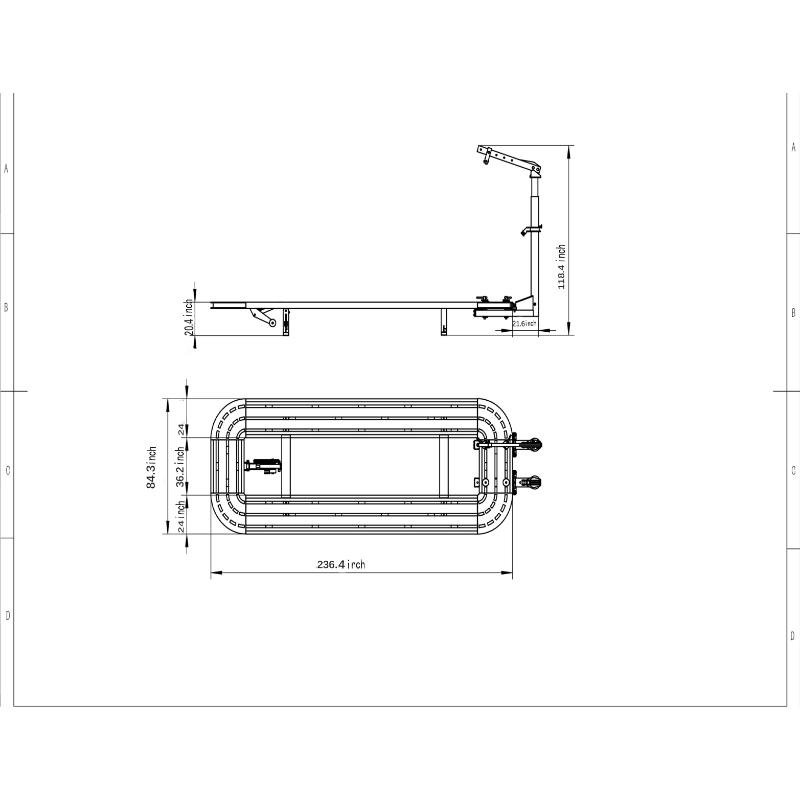

• 236.4 x 84.3 in platform — full vehicle length with room to work around it
• Tilt hydraulic lifting platform, 4.3 to 67 in — loading height and working height on one bench
• Unique tower wheel movement device — towers position exactly where the pull needs them

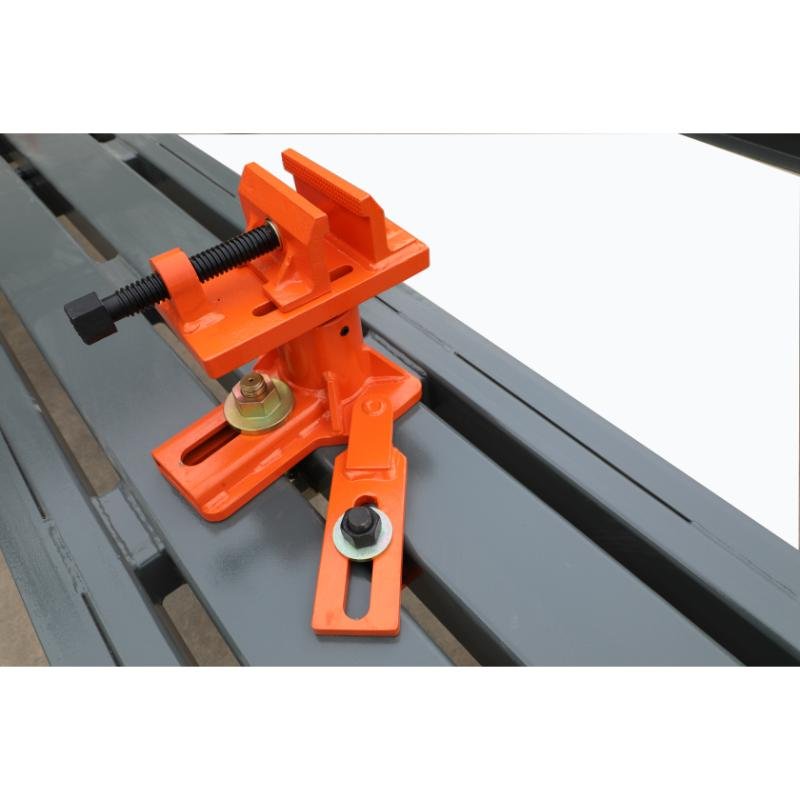

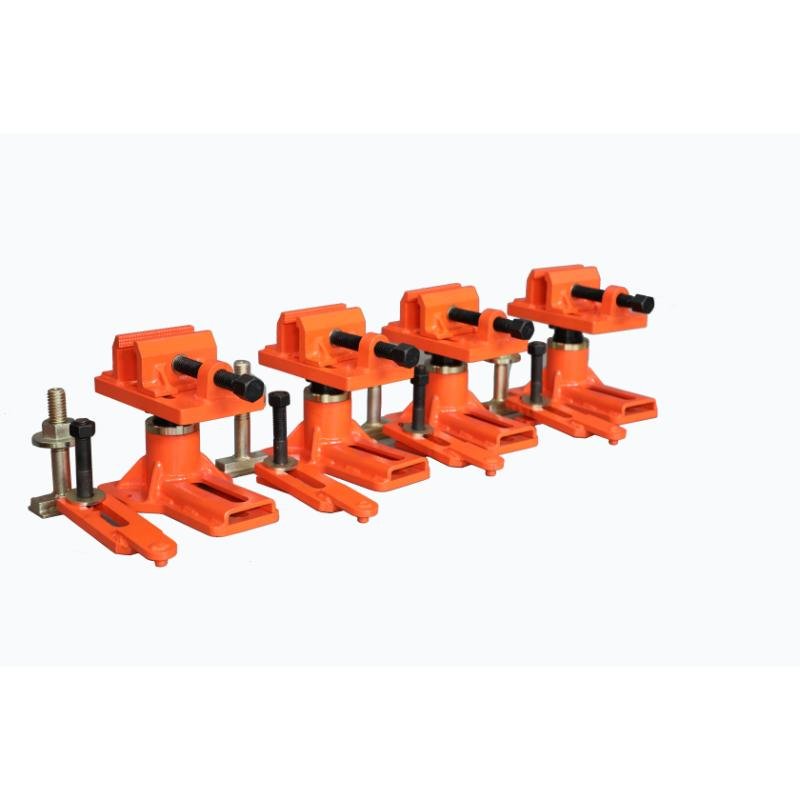

• Quick-fix clamp jaws — secured by turning the shaft clockwise
• Q235 / Q245 steel, automatic robot welding — consistent weld quality on the load-bearing structure

Pull Any Angle Without Moving the Car

On a frame rack, every repositioning of the vehicle costs setup time and risks losing a correction already made. The KT-198L is built so that does not happen.

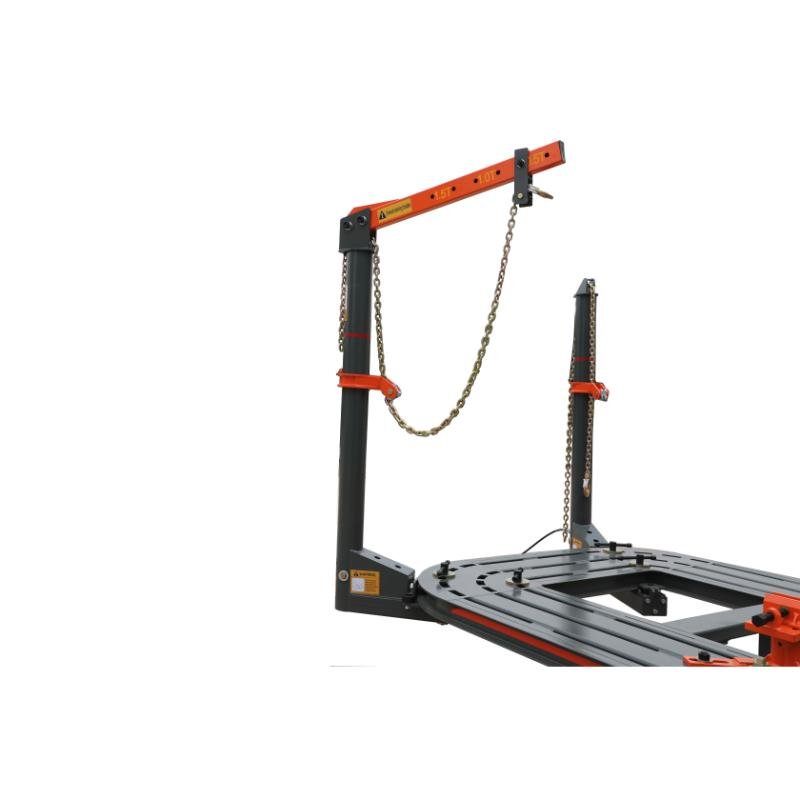

The pulling towers travel on a wheel movement device that eliminates the dead zones cheaper racks have at the corners, and the tower works through a full 360° radius. The leading arm then supplies tensile force from more than one direction, so a rail that needs to come out and forward is corrected as one operation rather than two.

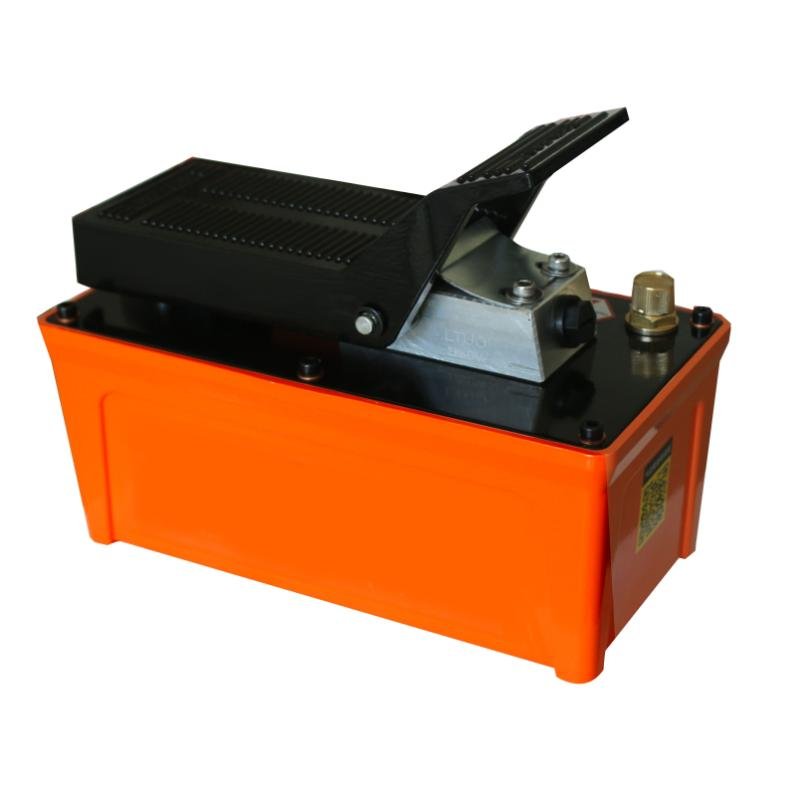

All of that runs at 100 kN — 10 tons — against a platform rated to 7,700 lbs and CE certified. Air supply is 0.8 MPa, standard shop compressor pressure.

Loading Height and Working Height on One Bench

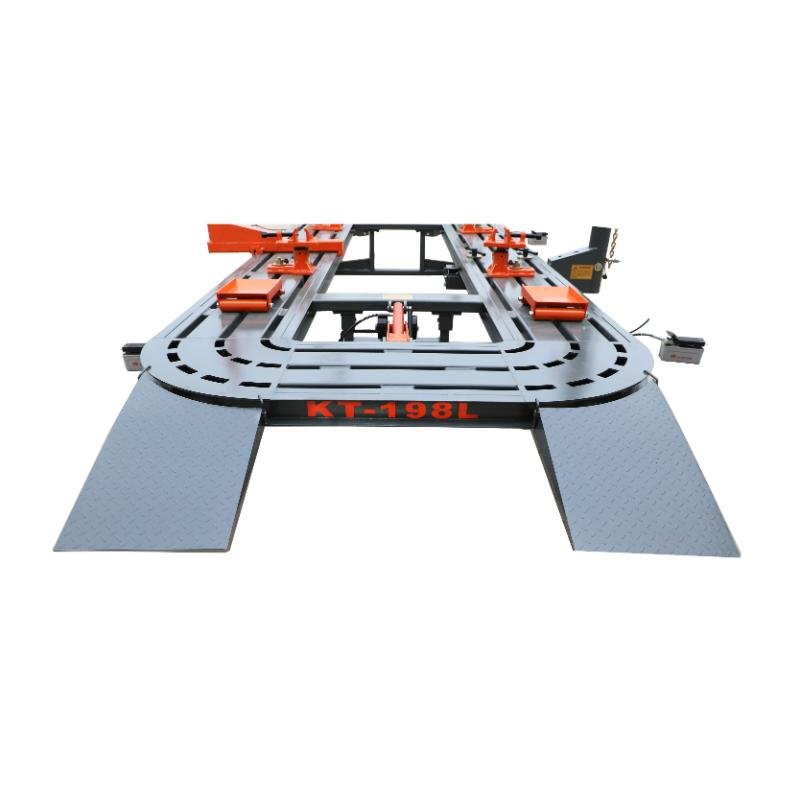

The tilt hydraulic platform drops to 4.3 in so a damaged car goes up the light, flexible ramps under its own weight or a winch, without a forklift or a second lift.

From there it rises to 67 in, which puts underbody measurement and welding at chest height instead of on a creeper. On a job that takes days, that difference shows up in both quality and how the crew feels at the end of the week.

The support legs are light enough to move by hand but carry the load during a pull, and the whole structure is Q235 and Q245 steel joined by automatic robot welding — consistent penetration on every joint that matters.

Watch the KT-198L in Action

See the tilt platform, tower positioning and pulling setup on a real vehicle.

The Right Frame Machine for Your Shop

For a shop that takes structural work every week, the KT-198L is the rack: 100 kN through a 360° radius, a 236.4 in tilt hydraulic platform, and a 7,700 lb CE-certified capacity.

Don’t wait — scroll back up and click the orange Add to Cart button to get this frame machine on its way to your shop.

Specs

Technical Specifications
