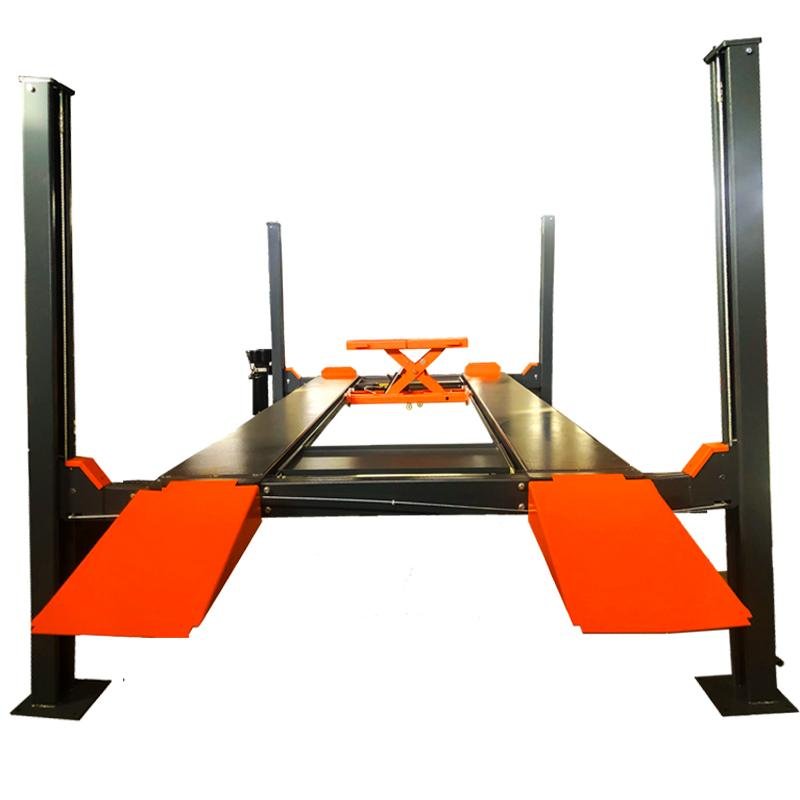

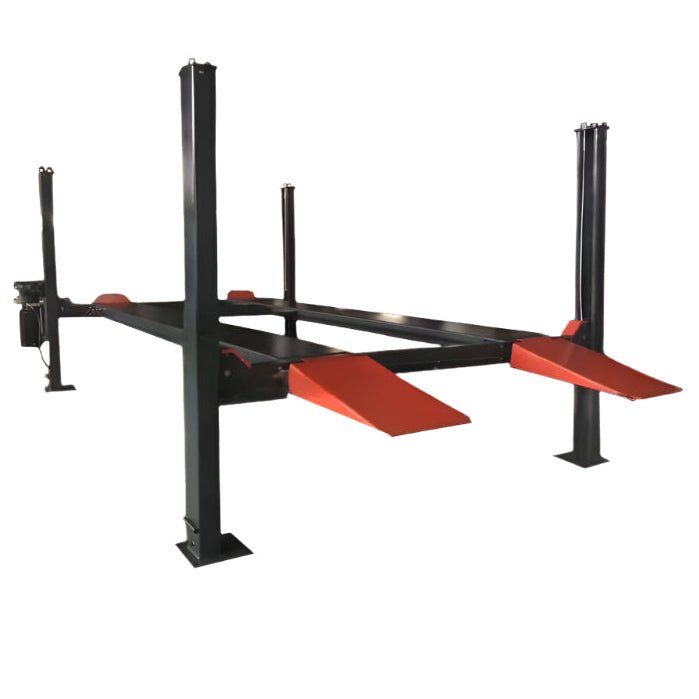

KATOOL KT-4H110 Four Post Vehicle Lift 11,000 lbs Capacity

Katool KT-4H110 11,000 lb 4-Post Lift for Trucks and SUVs

Full-size trucks are heavy, long, and tall — and most garage lifts give up on at least one of those. An 8,500 lb lift with short runways is no help when a crew cab rolls in.

The Katool KT-4H110 four post vehicle lift is sized for exactly that job: 11,000 lbs of capacity, 229.73 in of runway length with ramps, and 84.25 in of lifting height — all on a standard 110V single-phase outlet.

Why Choose the KT-4H110

Choose the KT-4H110 when you need true truck capacity but only have standard household power to run it on.

• 11,000 lb capacity on a 110V motor — true truck capacity with no rewiring and no electrician.
• 229.73 in overall length with ramps — crew cabs and long wheelbases sit fully supported on the deck.
• 112.81 in between columns — a wide, forgiving drive-through for mirrors and dually fenders.
• Grows with your work: add the caster kit for mobility or a KT-RJ50 rolling jack for wheels-free service when you need them.

What’s Included

• Katool KT-4H110 four post vehicle lift
• Drive-on ramps
• Jack tray

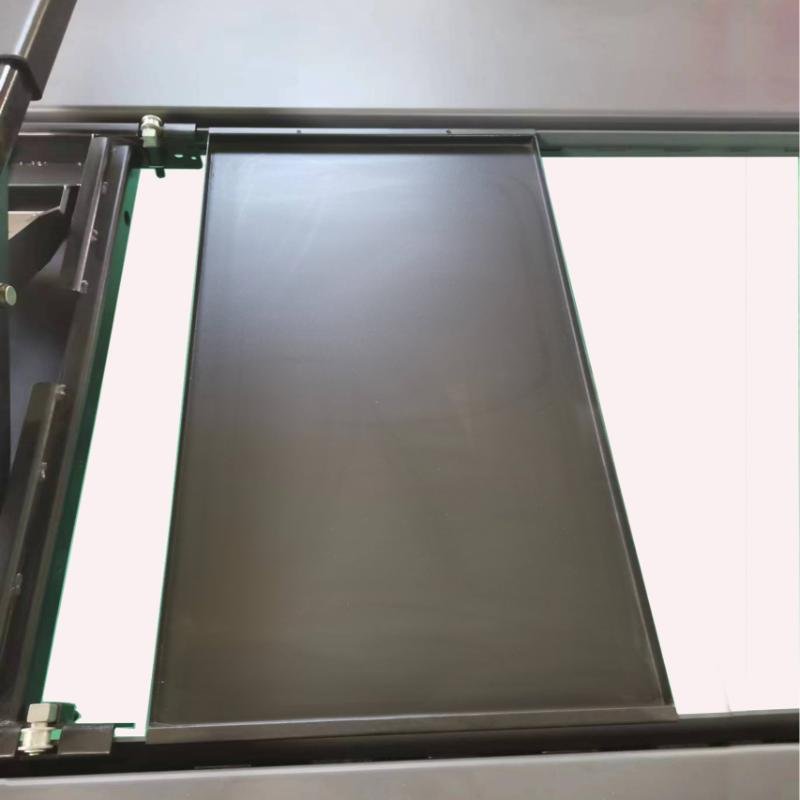

• 3 drip trays

Made For

Built for garages and bays where trucks and SUVs are the daily reality.

• Owners of full-size pickups, SUVs, and vans
• Home collectors stacking a truck over a daily driver
• Independent repair bays handling mixed vehicle sizes
• Fleet and farm garages servicing their own equipment
• Long-term storage for larger vehicles

Features

• 11,000 lb capacity — full-size trucks, SUVs, and vans
• 84.25 in max lifting height — stand-up clearance for underbody work
• 110V single-phase motor — runs on standard household power
• 229.73 in overall length with ramps — room for long wheelbases
• 112.81 in between columns — easy, wide drive-on
• 6.2 in minimum runway height — manageable approach even for lower cars
• Mechanical locking positions — with a single-point manual lock release
• 83 sec up / 40 sec down — quick cycles for daily use

Truck-Size Dimensions Where It Counts

The numbers that matter for a truck lift are length, width, and height — and the KT-4H110 has all three. Runways stretching past 19 ft with the ramps on mean a crew cab long bed sits fully supported, not hanging off the end.

The 126 in overall width and 112.81 in between columns leave real margin for wide bodies and towing mirrors on the way in. At the top, 84.25 in of lift height gives standing room under the runways for exhaust, driveline, and brake work.

Household Power, Professional Lifting

The 110V single-phase motor is the detail that makes this lift practical in a home garage: it plugs into the power you already have. No electrician, no new panel circuit planning before the lift goes in.

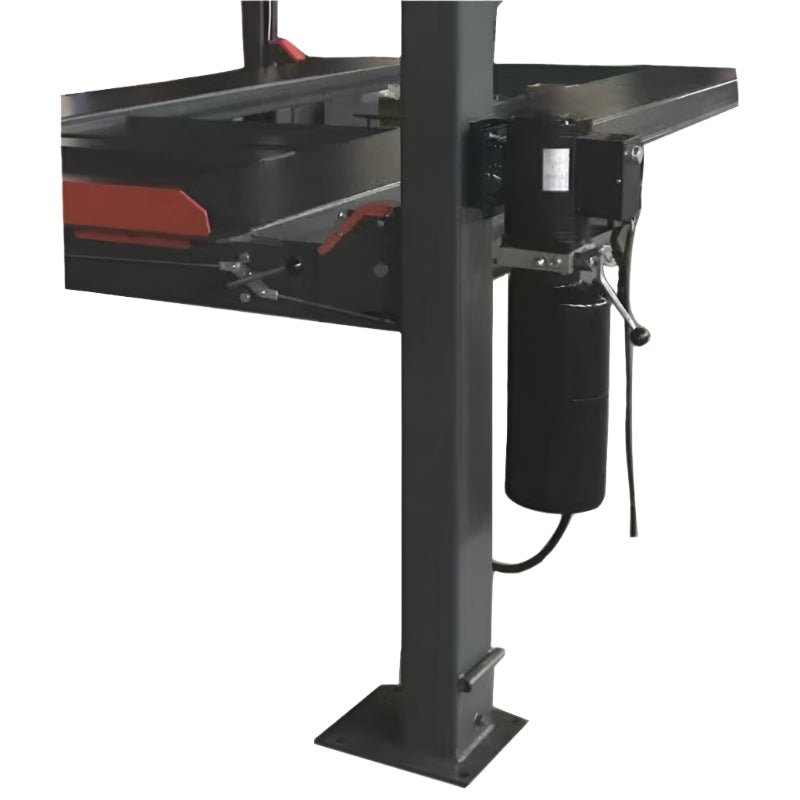

The hydraulic unit raises a full load in about 83 seconds and lowers in 40. Mechanical locking positions along the travel let you set the runways at working height, released from a single point when it’s time to come down.

The Right Four Post Lift for Your Shop

If the heaviest thing you lift wears a tow hitch, the KT-4H110 is the Katool four post lift to build the bay around: 11,000 lbs of capacity, runways past 19 ft, and standard 110V power.

Don’t wait — scroll back up and click the orange Add to Cart button to get this lift on its way to your shop.

Specs

Technical Specifications
