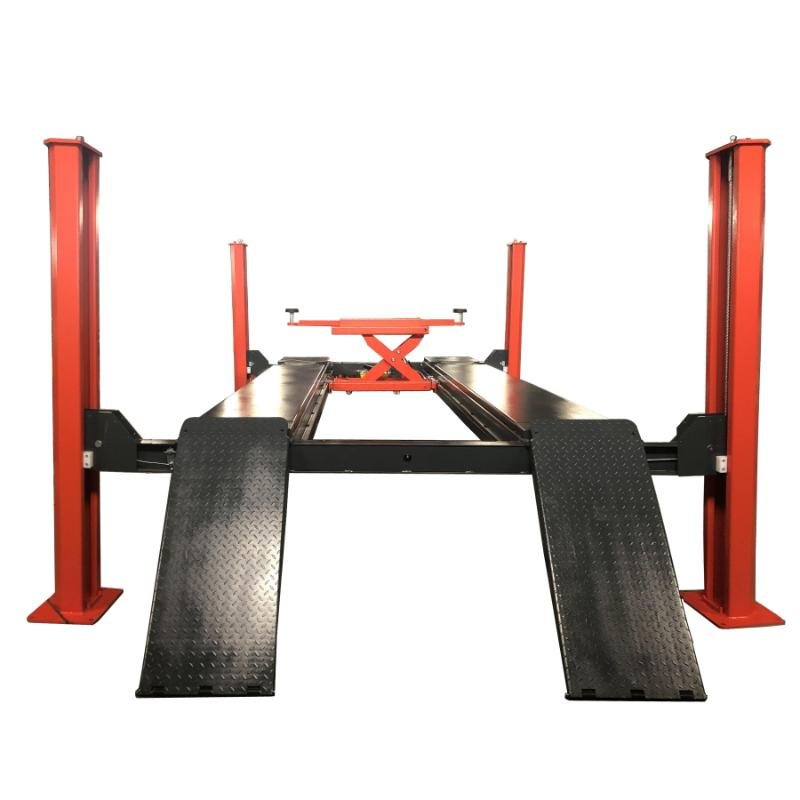

KATOOL KT-4H150 4-Post Alignment Lift 15,000 lb Capacity Rolling Jack Included

Katool KT-4H150 15,000 lb Four Post Alignment Lift with 6,000 lb Rolling Jack

Turning away alignment work on heavier vehicles is money walking out the door. Most four post lifts top out before a loaded dually or commercial van even rolls up.

The Katool KT-4H150 four post alignment lift carries 15,000 lbs on runways stretching roughly 245 in with ramps, and brings its own 6,000 lb rolling jack for wheels-free suspension access. It is CE certified and load tested to 115% dynamic and 150% static capacity.

Why Choose the KT-4H150

Choose the KT-4H150 when the job list includes vehicles too heavy for a standard four post — and alignment work is on the roadmap.

• 15,000 lb capacity — heavier trucks, loaded duallys, commercial vans, and fleet vehicles are all inside the rating.
• 6,000 lb rolling jack included — one-axle wheels-free lifting for suspension and brake work is in the crate.
• Roughly 118.11 in between columns — a wide drive-through even for commercial bodies and dually fenders.
• Alignment-ready runways — compatible with optional alignment turntables (sold separately) for full wheel alignment capability.

What’s Included

• Katool KT-4H150 four post alignment lift
• 6,000 lb capacity rolling jack

Made For

Built for service businesses that want heavy capacity and alignment capability on one footprint.

• General repair bays expanding into alignment work
• Fleet maintenance operations with heavier vehicles
• Tire and suspension specialists
• Bays servicing commercial vans and loaded pickups
• Multi-technician workshops sharing one heavy bay

Features

• 15,000 lb capacity — heavier trucks, vans, and fleet vehicles
• 6,000 lb rolling jack included — wheels-free axle lifting on the runways
• Approx. 76 in max lifting height — working clearance under the runways
• Approx. 118.11 in between columns — wide drive-through for big bodies
• 3 kW 220V motor — 110V configuration optional
• Approx. 60 sec rise / 55 sec descent — steady cycles under heavy loads
• Diamond-plate runways — secure traction on the approach and at height
• CE certified — tested to 115% dynamic and 150% static load

Capacity That Covers the Whole Fleet

At 15,000 lbs, the KT-4H150 handles vehicles that force smaller lifts to pass: loaded duallys, commercial vans, box-body service trucks. The heavy Q235/Q245 steel structure weighs roughly 4,850 lbs on its own.

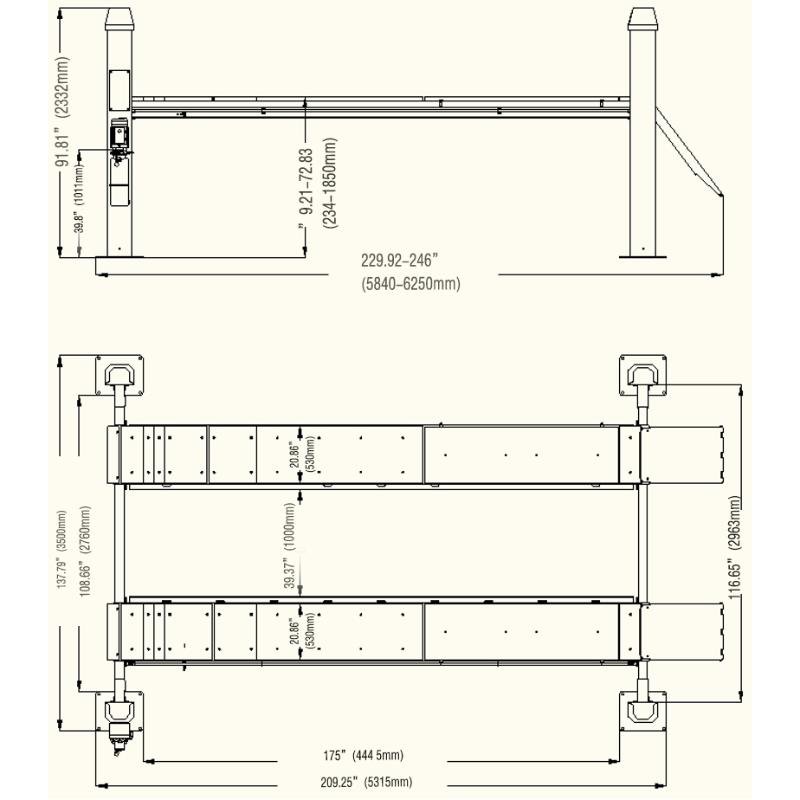

Runways around 245 in long with ramps give long-wheelbase vehicles full support, and the wide column spacing keeps the drive-on simple even with wide commercial bodies.

Alignment-Ready, Wheels-Free from Day One

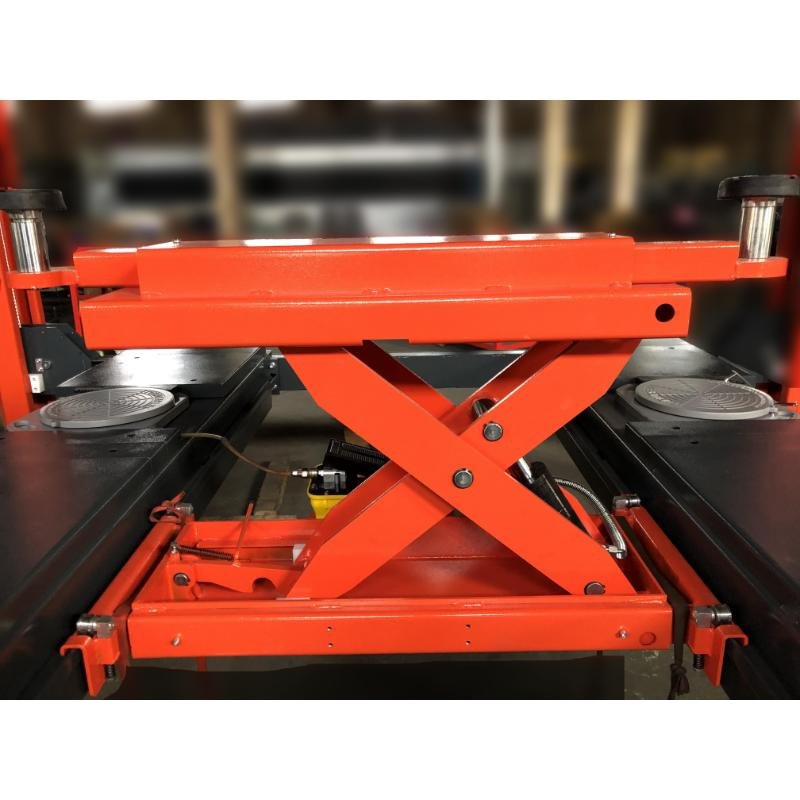

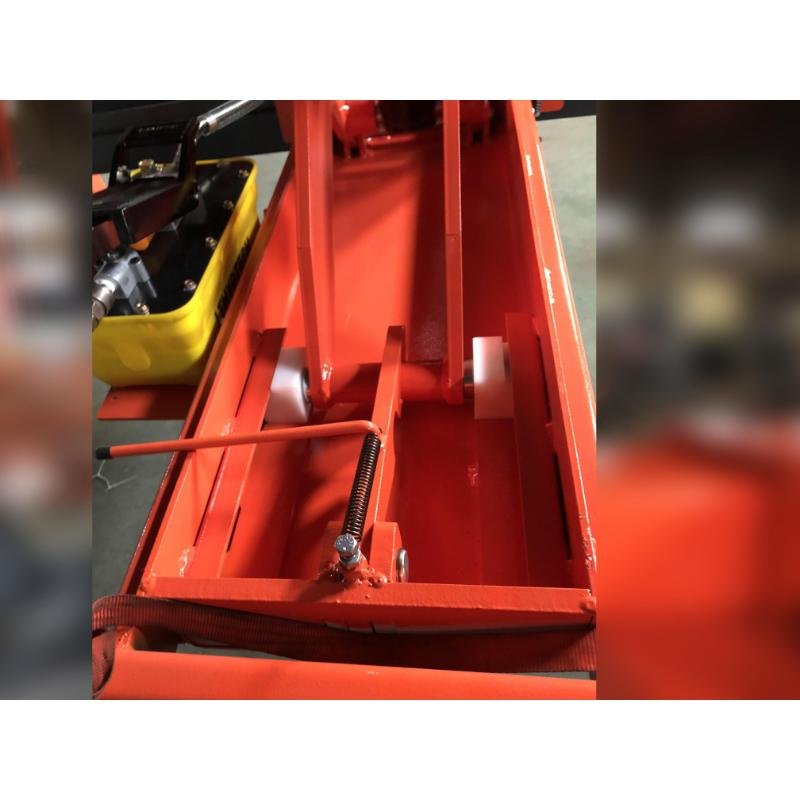

The included 6,000 lb rolling jack travels between the runways and lifts one axle at a time, giving full access to suspension and steering components while the vehicle stays at working height.

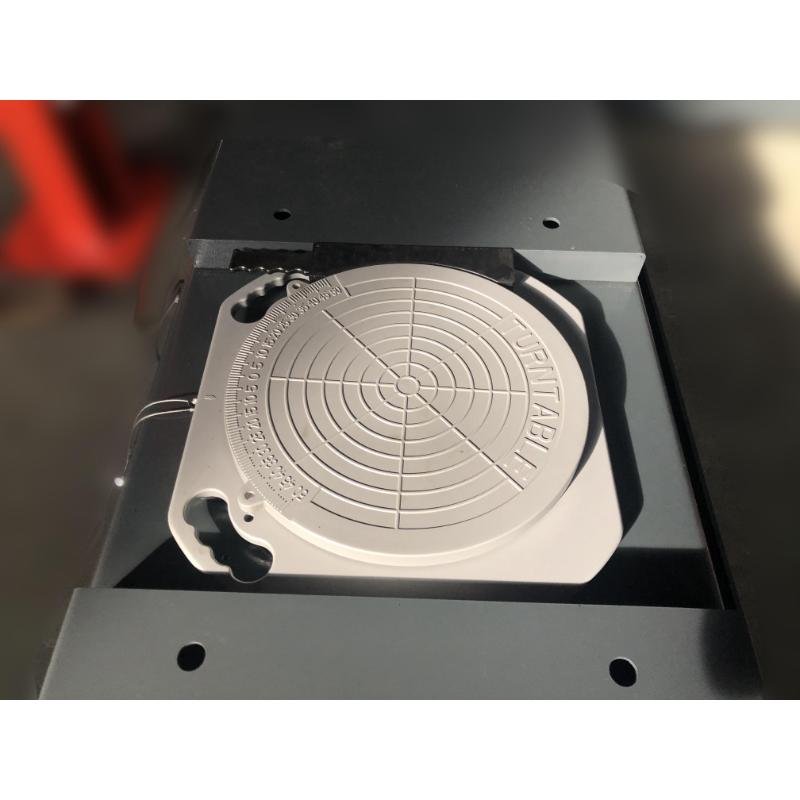

For alignment service, the runways are compatible with optional alignment turntables (sold separately). That lets a shop start with heavy lifting today and add full wheel alignment capability when the work justifies it.

The Right Alignment Lift for Your Shop

If heavier vehicles are on the schedule and alignment work is on the roadmap, the KT-4H150 is the Katool four post lift built for it: 15,000 lbs of capacity, a 6,000 lb rolling jack included, and turntable-ready runways.

Don’t wait — scroll back up and click the orange Add to Cart button to get this lift on its way to your shop.

Specs

Technical Specifications

Manual

Owner’s Manual

Download the Katool KT-4H150 owner’s manual for installation instructions, maintenance guidelines, and safety information. Download Manual
