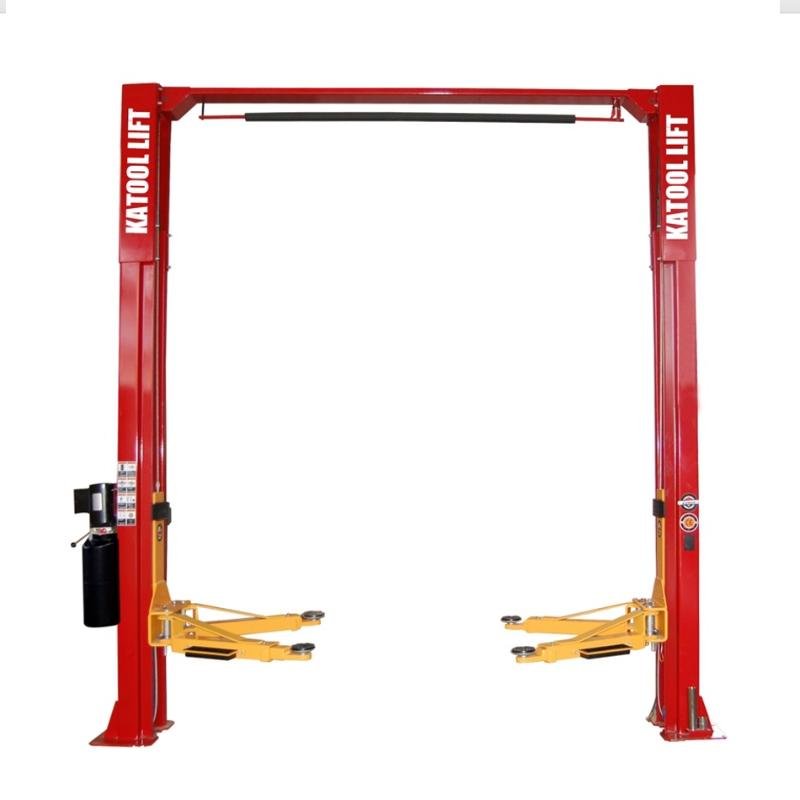

KATOOL KT-M110 Two Post Clear-Floor Vehicle Lift 11,000 lbs Capacity

Katool KT-M110 11,000 lb Clear Floor 2-Post Car Lift

A plate or cable channel on the floor between the columns is always in the way — transmission jacks catch on it, creepers stop at it, and it collects every dropped bolt.

The Katool KT-M110 two post lift moves the equalization overhead, leaving a completely clear floor under the vehicle. It lifts 11,000 lbs on symmetric 2-stage arms and holds the load on mechanical safety locks.

Why Choose the KT-M110

The KT-M110 is the clear-floor workhorse: 11,000 lbs of capacity with nothing on the floor between the columns.

• Clear-floor design — roll transmission jacks and creepers straight through with no plate to cross.
• 11,000 lb capacity — covers heavier SUVs and trucks that sit above a 10,000 lb rating.
• Overhead safety shutoff bar — stops travel before a roof meets the crossbeam.

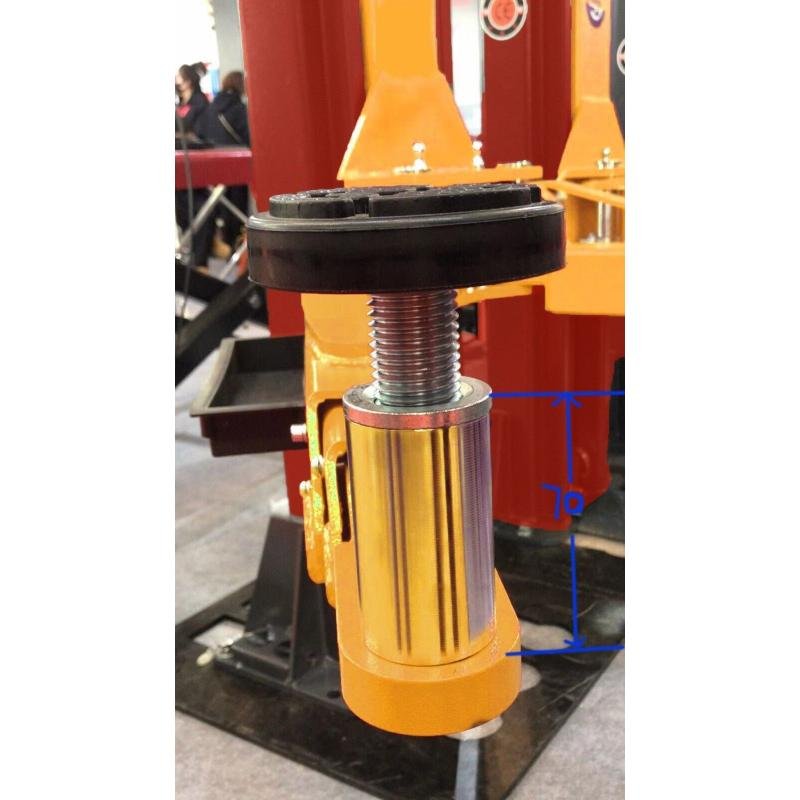

• +30 mm and +120 mm adapter sets included — plus foot-protection guardrails with a built-in toolbox on the columns.

What’s Included

• Katool KT-M110 two post clear-floor lift
• Extension support adapter sets (+30 mm and +120 mm)

Made For

Built for bays where under-car access matters as much as lifting power.

• Independent repair shops running daily service work
• Transmission, exhaust, and driveline specialists
• Serious home garages with ceiling height to spare
• Owners of trucks and full-size SUVs
• Detail and undercoating bays

Features

• 11,000 lb capacity — cars through full-size trucks
• 70.75 in max lifting height — stand-up working clearance
• Clear floor between columns — overhead equalization, nothing underfoot
• 4.25 in min pad height — slides under most vehicles
• Dual hydraulic chain-drive cylinders — synchronized, level lifting
• Overhead safety shutoff bar — automatic stop at roof contact
• Dual-side manual safety release — mechanical locks at each column
• CE certified — 115% dynamic / 150% static load tested

Clear Floor, Clear Workflow

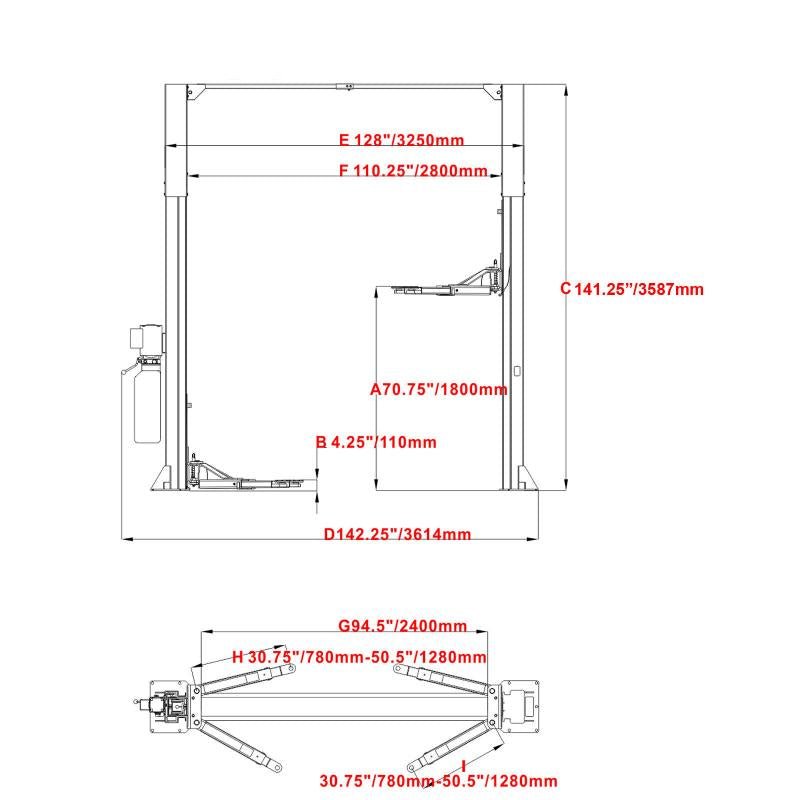

With the equalization running through the 141.25 in overhead structure, the space between the columns stays empty. Transmission jacks, oil drains, and creepers roll anywhere under the vehicle without a bump in the path.

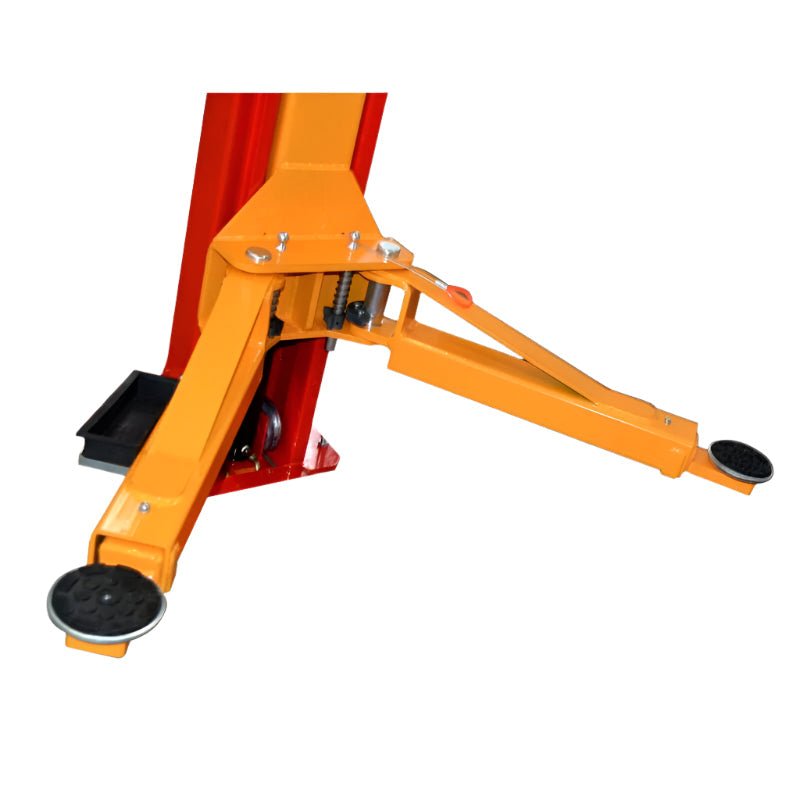

The 94.5 in drive-through and symmetric 30.75–50.5 in arms make positioning routine: drive in, swing the arms to the lift points, and go up.

Safety Built into the Structure

Mechanical locks engage as the carriages rise, so the vehicle rests on steel at working height. Manual releases at both columns keep lowering a deliberate, two-hand operation.

The overhead safety shutoff bar stops the lift automatically if a roof or bed rail reaches the crossbeam. Rubber door protection pads and foot-protection guardrails with a toolbox finish the package, and the design is CE tested to 115% dynamic and 150% static load.

The Right Two Post Lift for Your Shop

If your bay lives on underbody work, the KT-M110 keeps the floor clear and the capacity high: 11,000 lbs, overhead equalization, and CE-tested construction.

Don’t wait — scroll back up and click the orange Add to Cart button to get this lift on its way to your shop.

Specs

Technical Specifications

Manual

Owner’s Manual

Download the Katool KT-M110 owner’s manual for installation instructions, maintenance guidelines, and safety information. Download Manual
