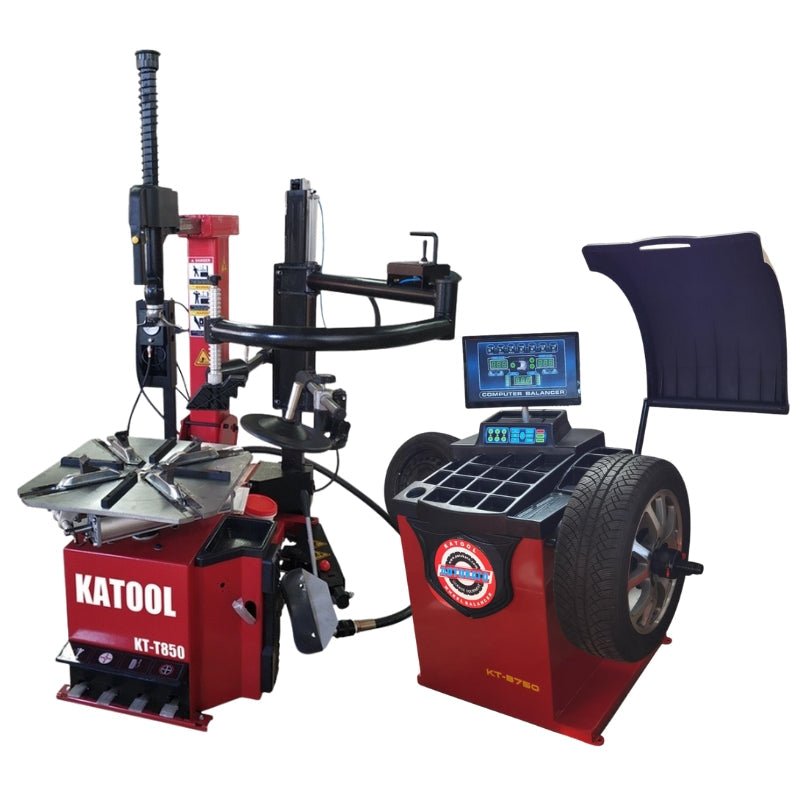

KATOOL KT-T850 & KT-B750 Tire Changer & Wheel Balancer Combo Compact Design

Katool KT-T850 Tilt-Back Tire Changer and KT-B750 Wheel Balancer Package

Commercial tire volume punishes equipment in two specific places: the mount head that swings across forty rims a day, and the balancer shaft that carries every one of those wheels afterwards.

This package addresses both. The KT-T850 uses a tilt-back tower that tips clear rather than swinging across the wheel, taking diameters to 47 in on a 750 lb frame. The KT-B750 mounts those wheels on a hardened φ36 mm extended shaft, reading ±1 g in 7 seconds.

Why Choose the KT-T850 and KT-B750 Package

Both machines are specified for the parts that wear out under volume.

• Tilt-back tower — the column tips clear instead of swinging across the wheel, which is faster and easier on rims.
• Hardened φ36 mm extended balancer shaft — the reference surface every reading depends on, sized and heat-treated to hold true.
• 47 in max wheel, 14–26 in outside clamping — large light-truck and oversized fitments are inside the range.
• 750 lb changer frame — the heaviest in the swing and tilt line, planted under a big bead break.

What’s Included

• Katool KT-T850 tilt-back rim-clamp tire changer
• Katool KT-B750 digital wheel balancer
• Standard mounting and balancing tooling for both machines

Made For

Built for shops running tire work as their main trade.

• High-volume tire shops
• Truck and SUV tire specialists
• Fleet maintenance facilities
• Custom wheel and lift shops
• Dealership service departments

Features

• Tilt-back tower design — the column tips back to clear the wheel every cycle
• 47 in (1,200 mm) max wheel diameter — oversized and light-truck fitments included
• 14–26 in outside, 16–28 in inside clamping — wide rim coverage on one machine
• 2.0 HP (1.5 kW) turntable at 6.8 r/min — controlled torque through a stiff sidewall
• 750 lb changer on Q235 / Q245 steel — mass that does not move under a big bead break
• Hardened φ36 mm extended balancer shaft — a true reference surface job after job
• 3 mm steel balancer body — mass that damps vibration instead of reading it
• ±1 g accuracy, 7-second cycle at 180 rpm — precise and quick

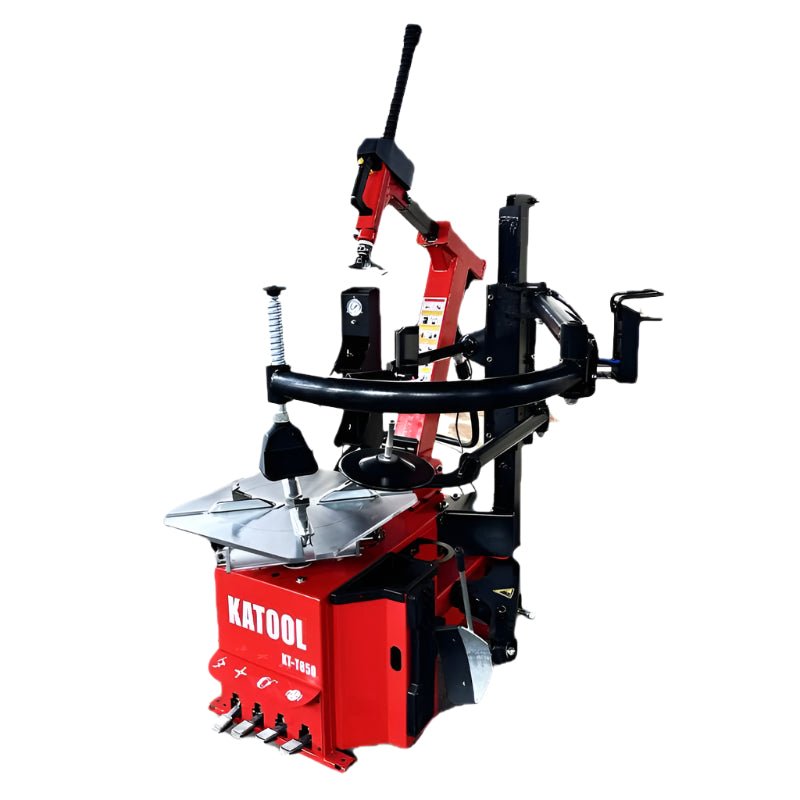

The KT-T850 Changer Side

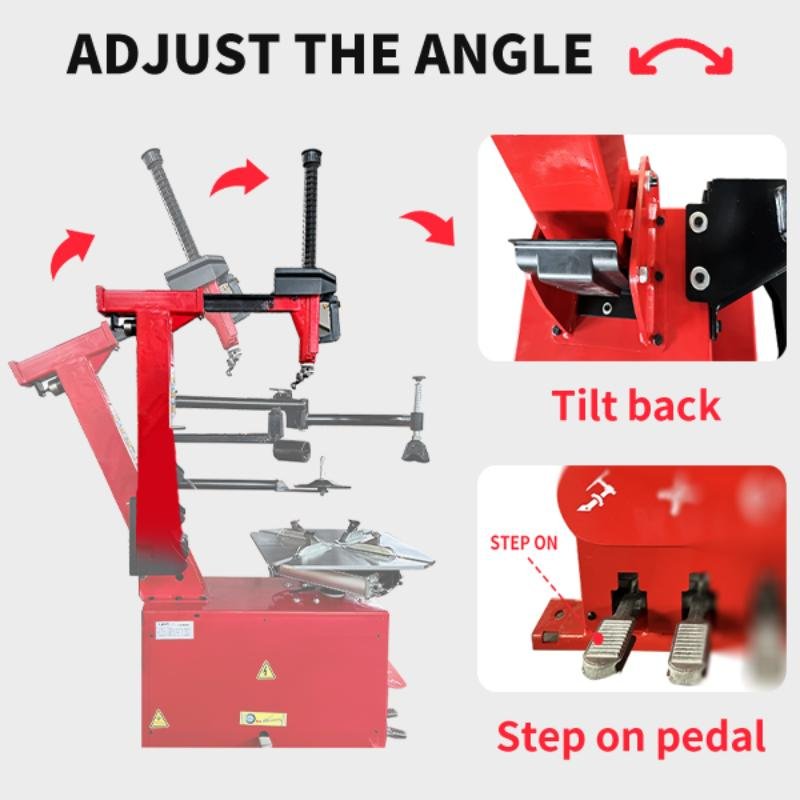

The tilt-back tower is the design difference. Rather than swinging the mount head sideways across the wheel, the whole column tips back out of the way and returns to exactly the same position each time. Setup stays repeatable, and no arc passes over a painted rim.

Capacity is where it earns its price: 47 in maximum wheel diameter, 15 in width, clamping from 14–26 in outside or 16–28 in inside. Large light-truck fitments and oversized alloys run on the same machine as a standard passenger wheel.

The frame is 750 lbs of Q235 and Q245 steel, which is what a big bead breaker needs under it. The turntable is 2.0 HP at 6.8 r/min on 110V power and 0.8–1.0 MPa shop air.

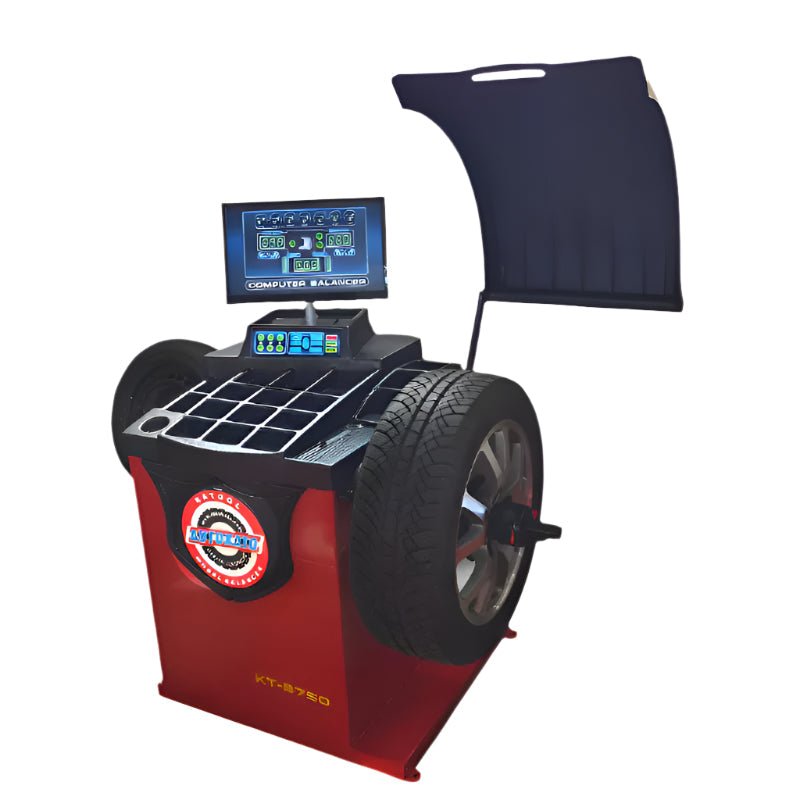

The KT-B750 Balancer Side

Balancer accuracy starts at the shaft. The KT-B750 uses a hardened φ36 mm extended shaft, so every wheel mounts on a surface sized and heat-treated to keep its geometry rather than wearing into a reading of its own.

A 3 mm steel body on a Q235 and Q245 frame gives the machine mass to absorb spin vibration instead of feeding it into the sensors — which is exactly what a 143 lb assembly at 180 rpm delivers, all day.

The 0.25 kW pure-copper-wound motor returns ±1 g in about 7 seconds on rims to 30 in, wheels to 34.6 in and assemblies to 143 lbs, running 110V single phase.

The Right Tire Changer and Balancer Combo for Your Shop

For commercial tire volume, this package is the pairing: a tilt-back changer rated to 47 in and a hardened φ36 mm shaft balancer reading ±1 g in 7 seconds.

Don’t wait — scroll back up and click the orange Add to Cart button to get this tire changer and balancer combo on its way to your shop.

Specs

Technical Specifications
