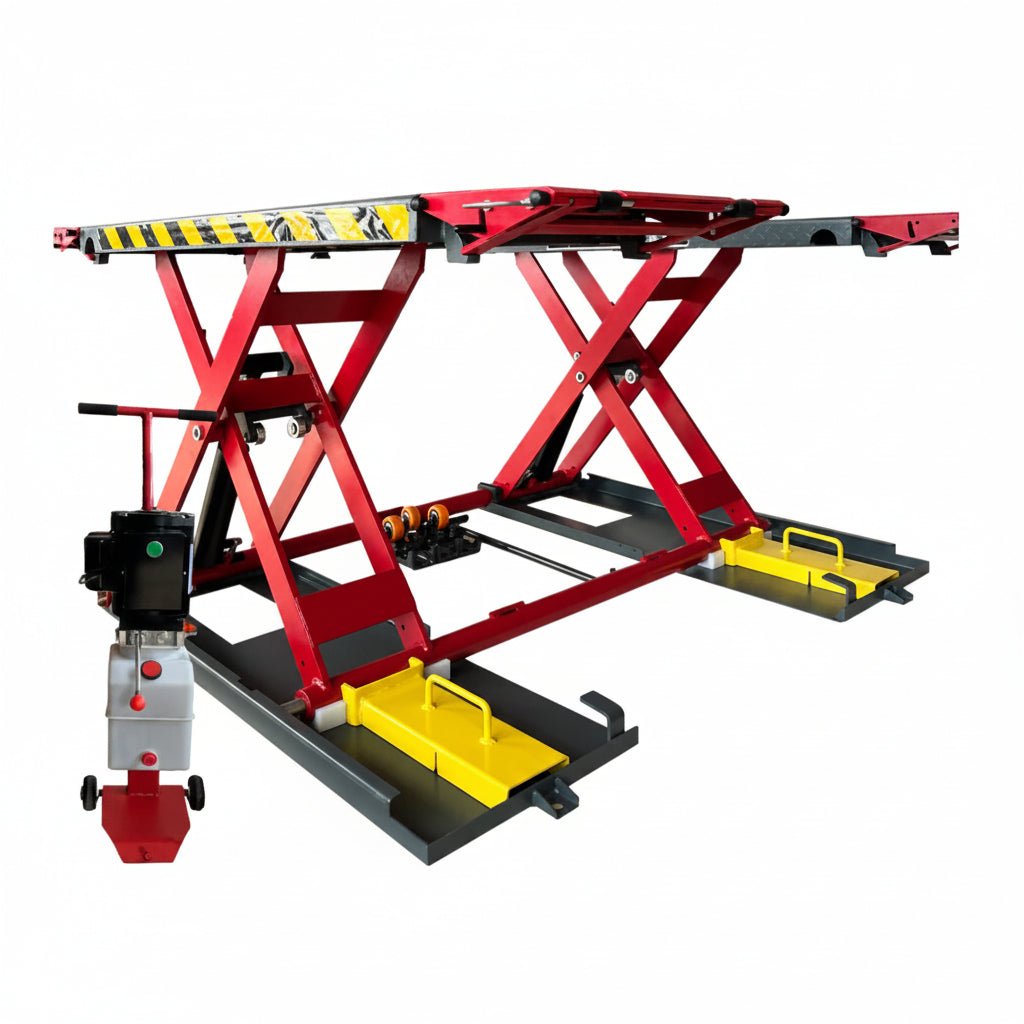

KATOOL KT-X77 Mid-Rise Scissor Lift 7,000 lbs Capacity

Katool KT-X77 7,000 lb Mid Rise Car Scissor Lift

Wheel, brake, and rocker work does not need a full-height lift — it needs the car at waist height, fast, without giving up a whole bay to columns.

The Katool KT-X77 mid rise scissor lift raises 7,000 lbs to 39.37 in in about 30 seconds, from a lowered height of just 4.25 in. No columns, no overhead structure — just open access around the whole car.

Why Choose the KT-X77

The KT-X77 is the quick-cycle mid rise: 30 seconds to working height with the floor around the car left completely open.

• 30 second rise time — the car is at working height before the tools are out.
• 4.25 in lowered height — slides under most cars without ramps or blocks.
• No columns, no posts — walk around the whole vehicle with doors free to open.
• Built-in mechanical locking with safety release — the load rests on steel at working height.

Made For

Built for fast-turnaround jobs at waist height.

• Tire and wheel service bays
• Brake and suspension work
• Detail shops working rockers and lower panels
• Home garages without ceiling height for a post lift
• Quick-service bays with high vehicle turnover

Features

• 7,000 lb capacity — sedans, coupes, and most SUVs
• 39.37 in max lifting height — comfortable waist-height access
• 4.25 in lowered height — low-profile drive-over
• 30 sec lifting time — quick cycles all day
• Electric-hydraulic operation — 110V/220V AC, single phase
• Mechanical locking with safety release — controlled, deliberate lowering
• 20.87 in wide platforms — solid contact along the pinch welds
• Heavy-duty alloy steel construction — 1,192 lbs of structure

Waist-Height Work Without Columns

A mid rise scissor keeps the footprint under the car: nothing to drive between, no arms to swing, and 360-degree access once the vehicle is up. Doors open freely because there is no steel beside them.

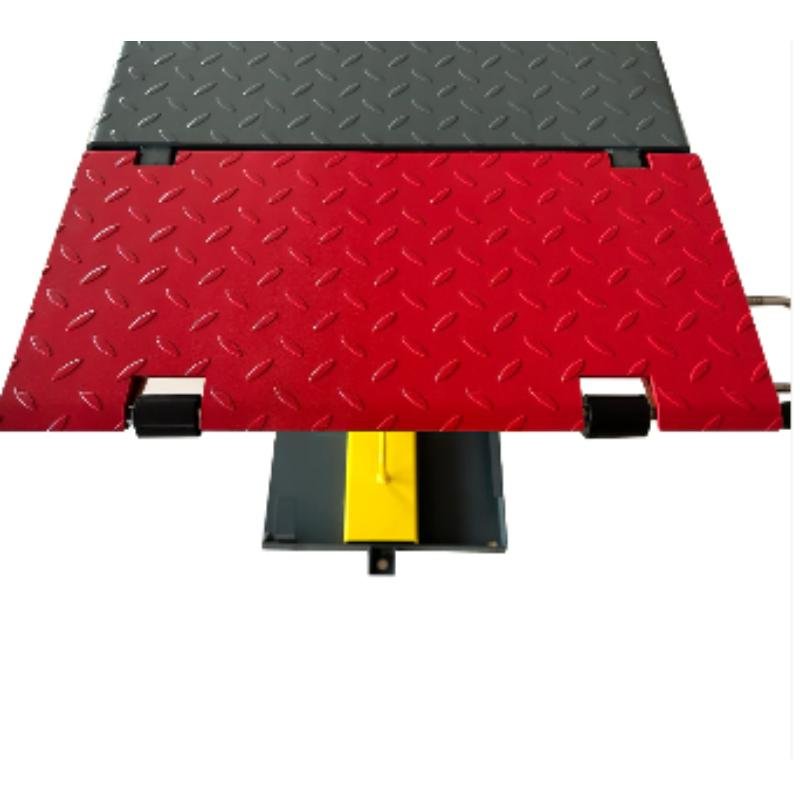

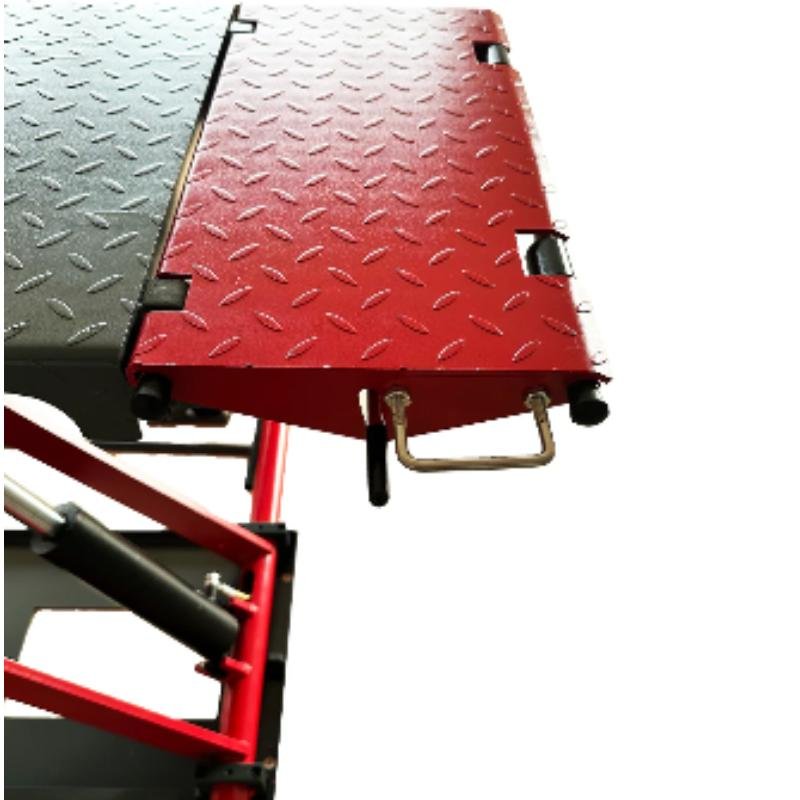

The platforms span 74.8 to 81.5 in, with rubber contact along the lifting points. At 72.83 in overall width, the lift lives comfortably inside a standard bay — or a home garage.

Locks and Controlled Lowering

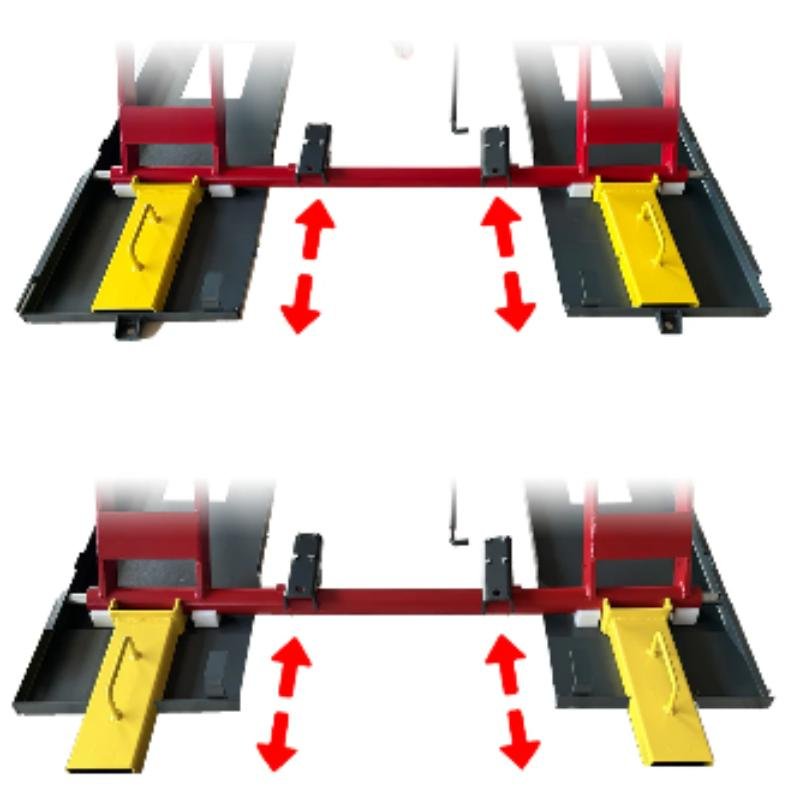

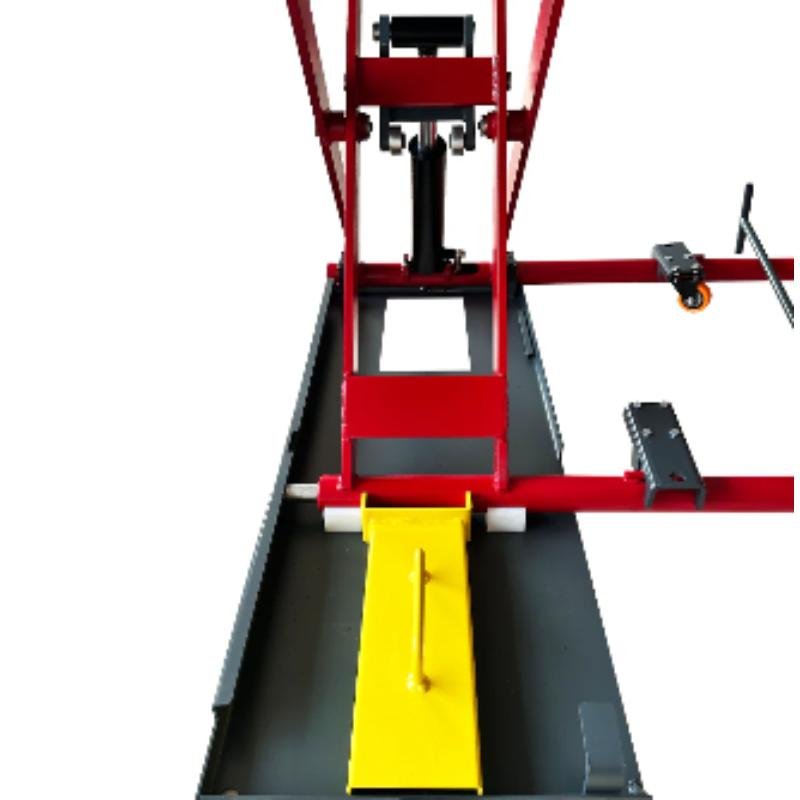

The built-in mechanical locking system engages as the lift rises, holding the car on steel rather than hydraulic pressure. The safety release mechanism makes lowering a deliberate action.

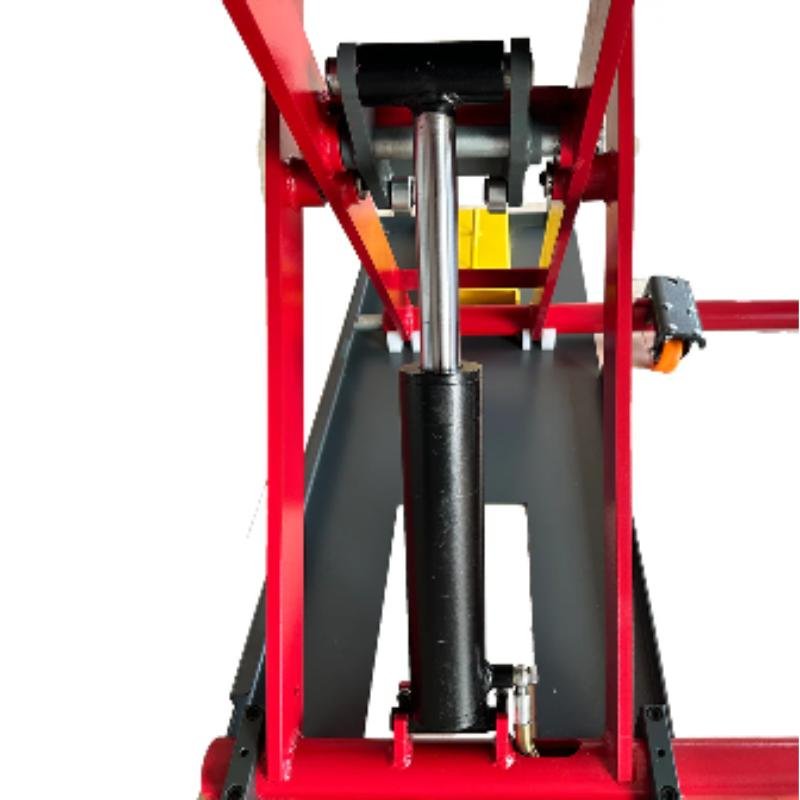

The electric-hydraulic power unit runs on 110V or 220V single-phase power, with an 85–120 psi air supply for the release system.

The Right Scissor Lift for Your Shop

For wheel-and-brake pace with no columns in the way, the KT-X77 is the tool: 7,000 lbs to 39.37 in in 30 seconds.

Don’t wait — scroll back up and click the orange Add to Cart button to get this lift on its way to your shop.

Specs

Technical Specifications

Manual

Owner’s Manual

Download the Katool KT-X77 owner’s manual for installation instructions, maintenance guidelines, and safety information. Download Manual
