Rotary MCHW18 Wireless Mobile Column Lift 4-Column Set 72,000 lb Capacity

72,000 lb Wireless Mobile Column Lifting System — Set of 4 Columns, 18,000 lb Each

Heavy vehicles don’t fit a fixed bay, and cabled mobile columns bring their own problem: power cords and interconnect cables strung across the floor of a working shop, right where techs and vehicles move.

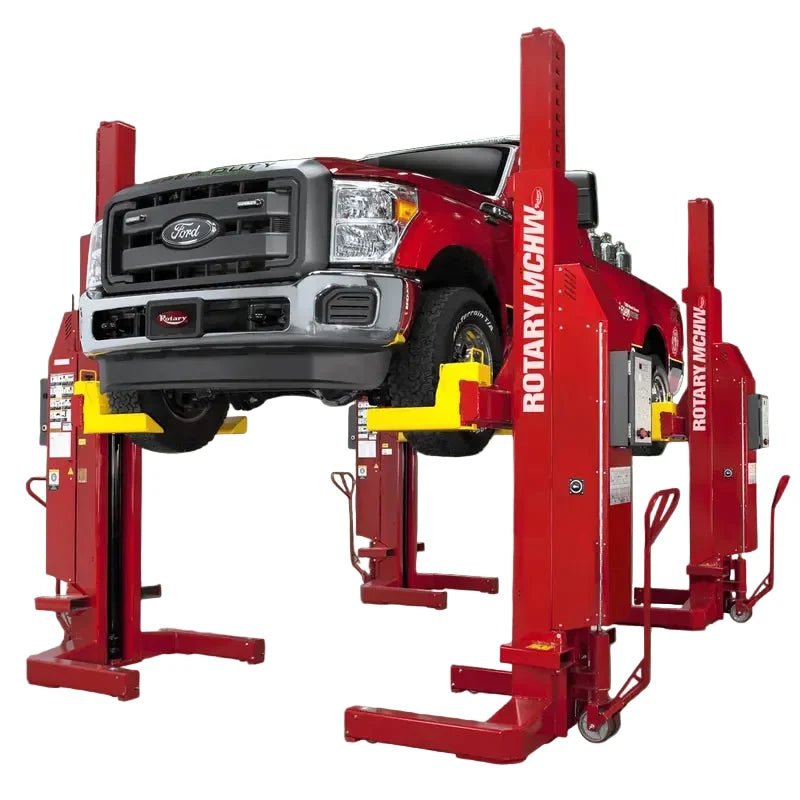

The Rotary MCHW18 is a wireless mobile column lift — four battery-operated columns rated at 18,000 lbs each for 72,000 lbs of total capacity. Each column has its own internal charger and operational controls, so the set lifts trucks, buses and equipment anywhere in the shop with no cords in the bay.

What’s Included

• Four MCHW18 wireless mobile lifting columns, 18,000 lb capacity each
• 24V DC battery operation with 110V on-board chargers
• Automatic steering system for moving columns without pumping jacks
• Operational controls at each column

Made For

The MCHW18 puts heavy-duty lifting wherever the vehicle already is.

• Commercial fleets servicing trucks, tractors and trailers in-house
• Transit and school bus maintenance operations
• Material handling shops lifting forklifts and warehouse equipment
• Municipal and utility garages with mixed heavy vehicles

Features

• 72,000 lb total capacity — four columns at 18,000 lbs each, matched to full-size trucks and buses
• Fully wireless operation — battery-operated columns with no power cords or interconnect cables cluttering the bay
• Automatic steering system — move columns into position without manually pumping jacks, saving setup time on every job
• 69″ rise — full standing access under the vehicle
• 15–20 lifting cycles per charge — 24V DC batteries with a 110V on-board charger in each column

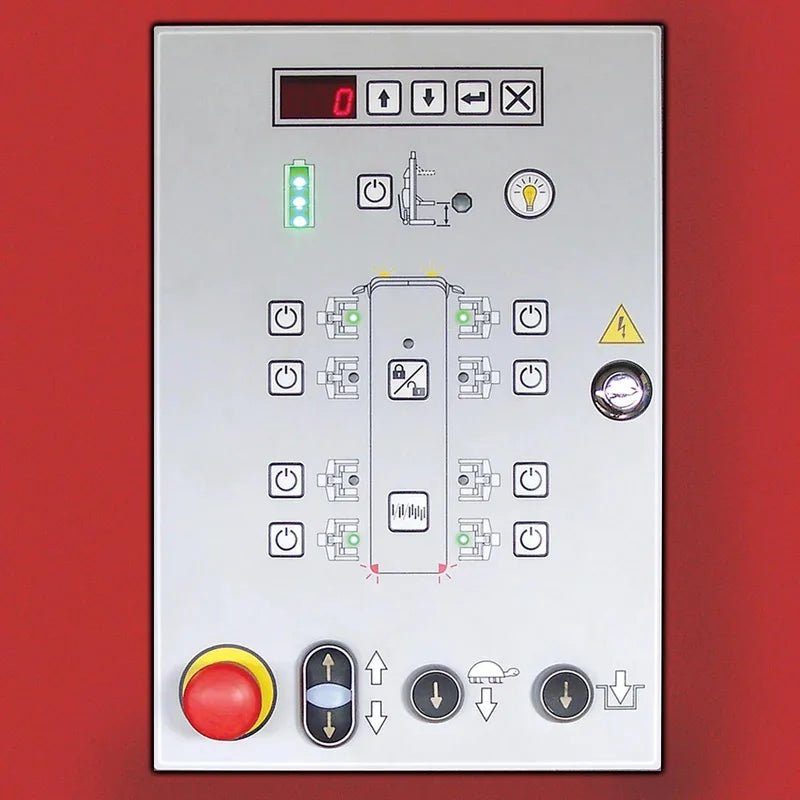

• Operational controls at each column — techs run the lift from wherever they stand

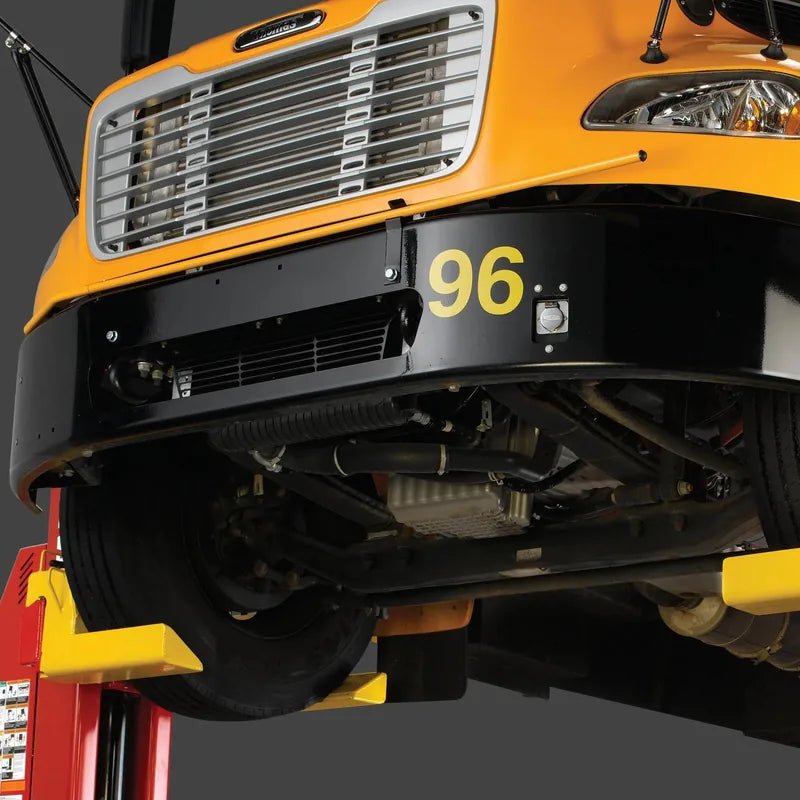

• Fits 9″–24″ tires — wheel-engaging forks cover light trucks through heavy commercial vehicles
• Rubber-coated steel wheels and forklift pockets — two more ways to relocate columns around the shop

No Cords, No Cables, No Bay Clutter

Cabled column sets force the job to happen near power, and their interconnect cables lie exactly where people work. The MCHW18’s columns each run on 24V DC batteries with an internal 110V charger, so the lifting system is as mobile as the vehicles it serves.

Battery power holds 15–20 lifting cycles per charge — a full day of work — and columns charge from any standard 110V outlet when the shift ends.

Setup Speed Is the Hidden Capacity

The automatic steering system removes the slowest part of mobile column work: manually pumping jacks to move each column into place. Columns steer into position, engage tires from 9″ to 24″, and lift with controls at every column.

With 45 1/2″ column width and forklift pockets built in, repositioning the set for the next vehicle takes minutes — so the lift spends its day lifting, not being moved.

The Right Mobile Column Lift for Your Fleet

The MCHW18 delivers 72,000 lbs of wireless lifting with a 69″ rise, automatic steering and all-day battery power, in a four-column set that works anywhere in the shop.

The columns arrive ready to charge and lift — no bay wiring, no infrastructure, no fixed installation.

Don’t wait — scroll back up and click the orange Add to Cart button to get this mobile column lift on its way to your shop.
