Rotary RLP77 Low Profile Scissor Lift 7,700 lb. Capacity

Rotary RLP77 7,700 lb Double Scissor Car Lift with Synchrodrive Equalization

A two-post lift needs a tall ceiling and a wide bay. Plenty of shops have neither. But wheel, brake, and quick service work still needs the car in the air — and waiting on a busy rack costs jobs.

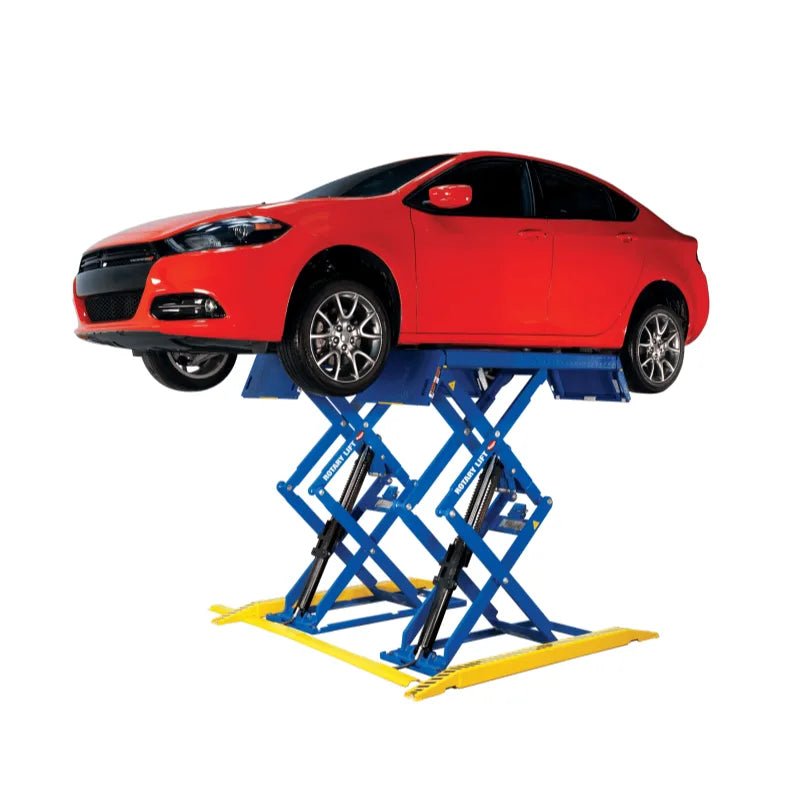

The Rotary RLP77 is a low profile scissor lift that sits just 4 1/8″ off the floor. Drive on, and it takes 7,700 lbs to full working height in 39 seconds. No columns, no towers — and the patented Synchrodrive system keeps both platforms level all the way up and down.

What’s Included

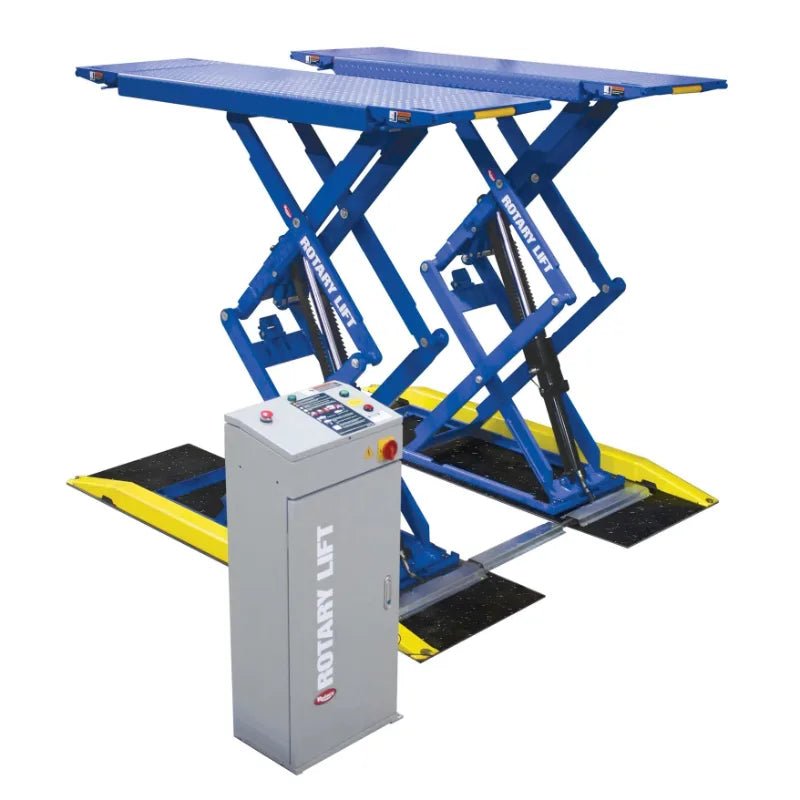

• RLP77 double scissor lift with single-piece, diamond plate, powder-coated platforms
• Power console with integrated filter, regulator and lubricator
• Polymer rubber adapter pad sets for vehicle contact

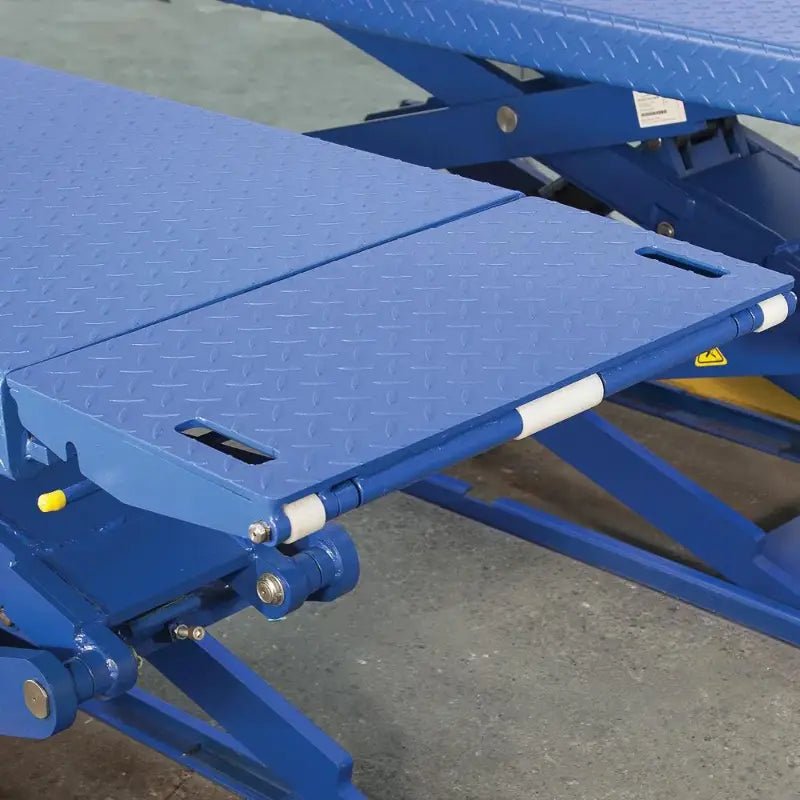

• 13″ underhung hinged ramps with polymer rollers

Made For

The RLP77 fits shops that need real lifting capacity without giving up floor space or ceiling height.

• General repair shops running quick service in tight bays
• Wheel and brake specialists who need clear access at all four corners
• Auto dealerships adding express service capacity
• Enthusiast garages with low ceilings or limited floor space
• Shops that want a flush-mount option for a clean, open floor

Features

• 7,700 lb capacity — lifts Class 1 vehicles with room to spare
• 4 1/8″ lowered height — drive-over pad design, no pit and no columns
• 78 5/8″ rise in 39 seconds — full working height fast on a 4 HP, 230V motor
• Patented Synchrodrive equalization — hydraulics keep both platforms level, even against an obstruction
• 24 lock positions — negative rake tooth design holds solid at any working height

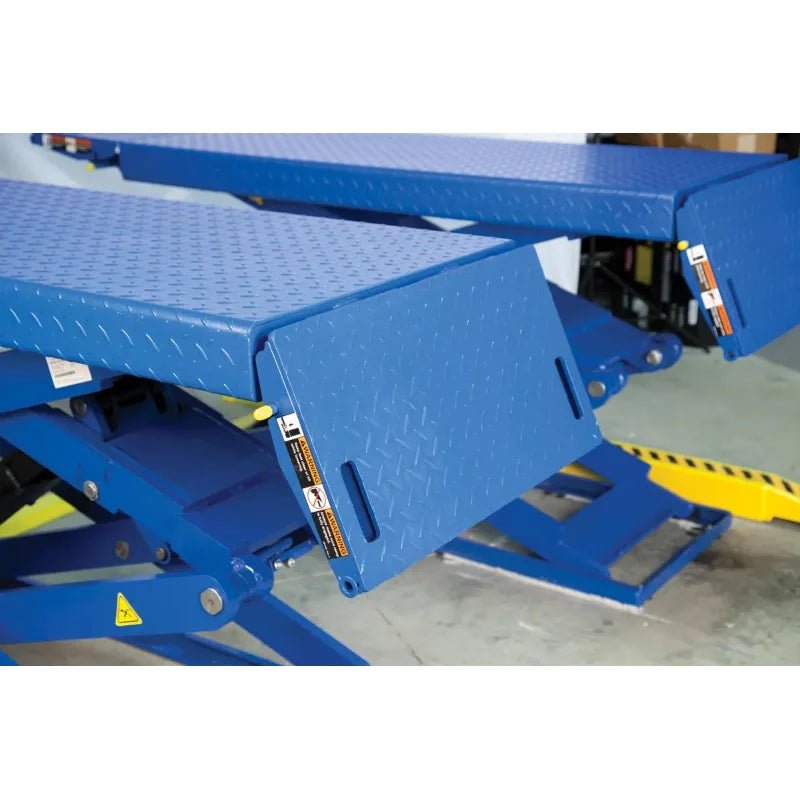

• Hinged ramps fold 65 degrees down — open access for wheel and brake service
• No electronics or sensors — fewer parts to fail, and the console takes under two square feet
• ALI Gold Certified — independently tested and certified for safe lifting

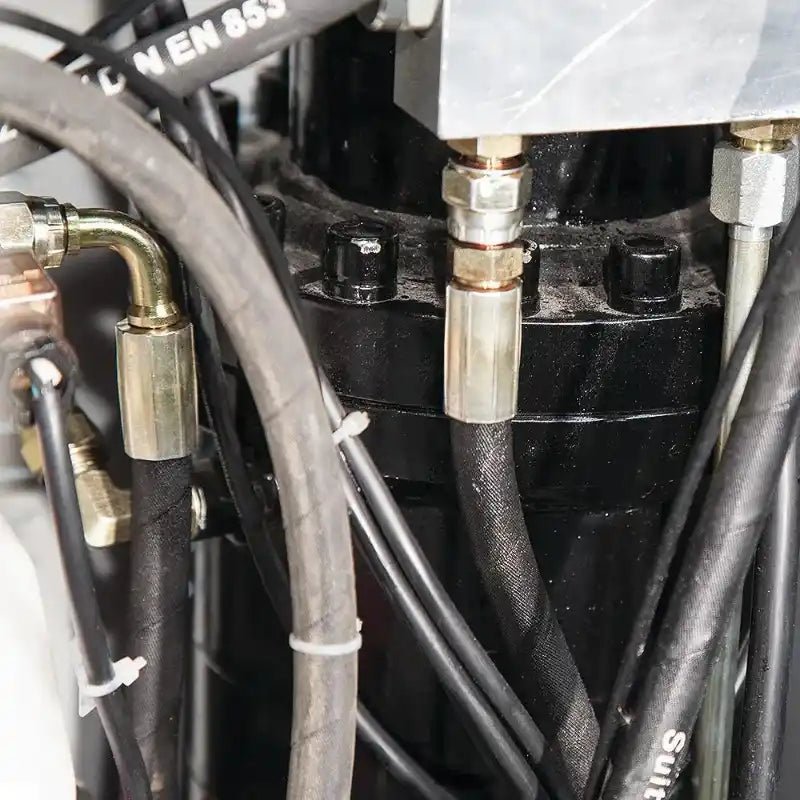

Synchrodrive Keeps Both Platforms Level

The patented Synchrodrive Equalization system maintains platform equalization while you lift and lower, so the car stays flat through the whole stroke. If one side meets an obstruction, the hydraulic system prevents an out-of-level situation instead of letting the vehicle tilt.

Simple Hydraulics That Keep Working

There are no electronics or sensors to fail, and fewer moving parts, hoses, valves and seals to maintain. Everything runs from a compact console that takes up less than two square feet of floor space, and the lift installs flush or surface mount to suit your slab.

Watch the RLP77 in Action

See the RLP77’s double scissor design, Synchrodrive equalization, and fold-down ramps at work before it lands in your bay.

The Right Scissor Lift for Your Shop

The RLP77 packs 7,700 lbs of ALI Gold Certified lifting into an 85″ x 85″ footprint with almost no lowered height, in blue or red to match your shop. Don’t wait — scroll back up and click the orange Add to Cart button to get this scissor lift on its way to your shop.

Specs

Technical Specifications
