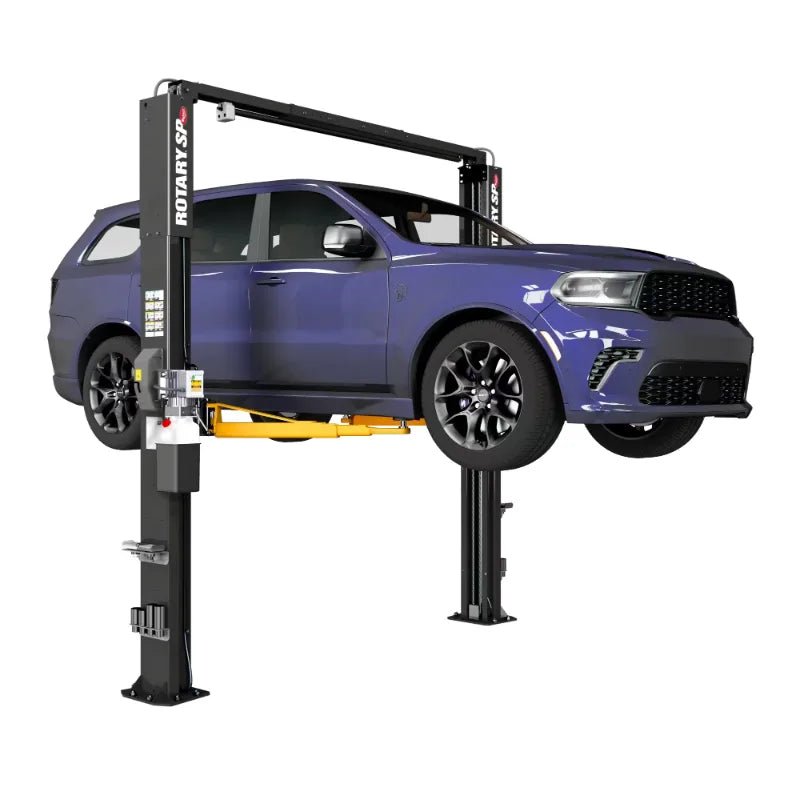

Rotary SPO10 2-Post Lift 10,000 lb. Capacity

10,000 lb Rotary SPO10 Symmetric Low-Profile Two-Post Lift

A two-post lift takes a beating every day. Trucks, vans, low sports cars, all on the same two arms. If the arms won’t reach the lift points, or the columns eat your door clearance, every job gets harder than it should be.

The Rotary SPO10 is a symmetric two-post lift rated for 10,000 lbs, built on Rotary’s original Double-S columns. Standard 2-stage arms swing under low cars and reach the lift points with three-position flip-up FA adapters, so one lift handles the whole mix of vehicles that roll into the bay.

What’s Included

• SPO10 symmetric two-post lift with original Double-S columns
• Standard power unit — 2 HP, 208-230V single phase
• Standard 2-stage arms with exclusive three-position flip-up FA adapters

Made For

The SPO10’s true-symmetric layout is built for shops that put trucks and vans in the air every day.

• General repair shops lifting trucks, vans, and SUVs in the same bay
• Auto fleets keeping their own vehicles on the road
• Utility and work-truck fleets servicing their own vehicles
• Busy independent garages that want a proven, versatile lift
• Collision repair shops spotting frame and unibody vehicles

Features

• 10,000 lb capacity — cars, light trucks, vans and SUVs on the same set of arms
• 72 5/8″ to 78 1/8″ rise — the range covers the lowest and highest positions of the supplied adapters
• 2 HP, 208-230V single-phase motor — full rise in 45 seconds, back down in 40

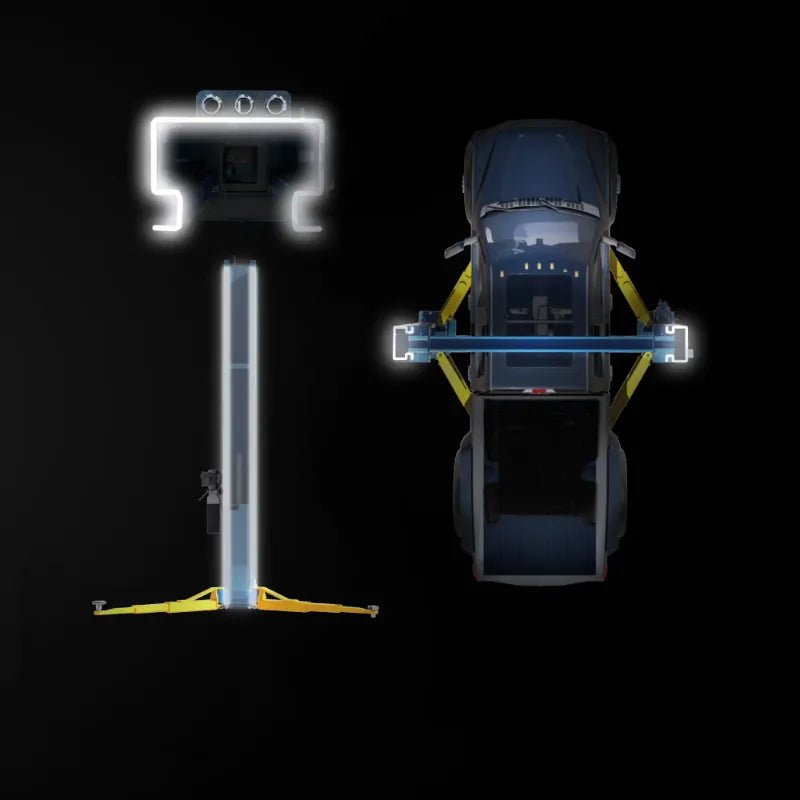

• Original Double-S columns — the single-piece multi-bend profile gives the carriage a secure channel for smooth travel up and down
• 102 1/2″ drive-thru clearance — 114 1/2″ between the columns, in an 11′ 5 5/8″ overall footprint
• 31″ to 54″ arm reach — three-position flip-up FA adapters match the vehicle’s lift points
• ALI Gold Certified — independently certified and performance tested to 20,000 cycles
• 11′ 8 1/2″ overall height — clears a 12′ ceiling in a 12′ x 24′ bay

Symmetric Lifting Built for Trucks and Vans

Rotary’s SPO series uses true-symmetric lifting designed for trucks and vans. The vehicle’s center of gravity sits directly between the columns for a smooth, balanced lift, and the door line clears the columns so techs get in and out without dings.

The standard 2-stage arms swing under low vehicles and reach the lift points with three-position flip-up FA adapters. The whole assembly is joined with a single pin, so it holds position under load and one arm set covers a low sedan and a work truck.

Sized to Your Bay

The SPO10 stands 11′ 8 1/2″ overall and needs a 12′ ceiling. Overall width is 11′ 5 5/8″, drive-thru clearance is 102 1/2″ and the columns sit 114 1/2″ apart, which puts the whole lift inside a standard 12′ x 24′ bay.

Measure your ceiling against the 12′ minimum before you commit. Rotary also builds the SPO10 in extended height configurations if you need more room above the vehicle.

The Right Two-Post Lift for Your Shop

The SPO10 puts 10,000 lbs of ALI Gold Certified symmetric lifting on proven Double-S columns, with 2-stage arms that reach a wide range of vehicles and a rise of 72 5/8″ to 78 1/8″.

Don’t wait — scroll back up and click the orange Add to Cart button to get this two-post lift on its way to your shop.

Specs

Technical Specifications
