Rotary SPO10 Shockwave 2-Post Lift with 2 Ft. Extension 10,000 lb. Capacity

Rotary SPO10 Symmetric Two-Post Car Lift, 10,000 lb, Shockwave DC Power and 2 Ft. Extended Height

Some vehicles are too tall for a standard two-post lift. And on a standard-powered lift, every car costs you time twice — once going up, once coming back down.

The Rotary SPO10 is a symmetric two-post lift rated for 10,000 lbs on Rotary’s original Double-S columns. This build adds 2 ft. of extended height for taller vehicles, and it is Shockwave equipped: battery power with an onboard 110V charger that Rotary rates at 2X the lifting speed of a standard lift. Full rise takes 25 seconds. Full descent takes 19.

What’s Included

• SPO10 symmetric two-post lift with original Double-S columns
• Shockwave equipped DC battery power with onboard 110V charger
• Standard 2-stage arms with exclusive three-position flip-up FA adapters
• 2 ft. extended height configuration (EH2)

Made For

Rotary builds the SPO10 for four kinds of shop. All four want the same things from a two-post lift: symmetric spotting, a standard 12 ft. bay, and room overhead.

• Auto fleets servicing their own vehicles
• Auto repair shops running general service work
• Collision repair shops
• Utility fleets maintaining work trucks

Features

• 10,000 lb capacity — enough for the trucks and vans this lift is built to spot
• 2 ft. extended height — added room overhead for taller vehicles
• Shockwave DC battery power — 2X the lifting speed of a standard lift, 25 seconds up and 19 back down
• 5 HP motor, 110V single-phase — the figures your electrician sizes the circuit from
• True symmetric lifting — the vehicle’s center of gravity is spotted directly between the columns, leaving room in front of them to open truck and van doors
• Original Double-S columns — the single-piece column shape gives the carriage a secure channel to run smoothly up and down
• Three width installation options — up to 12″ of extra drive-thru for wide vehicles
• ALI Gold Certified — independently certified and performance tested to 20,000 cycles

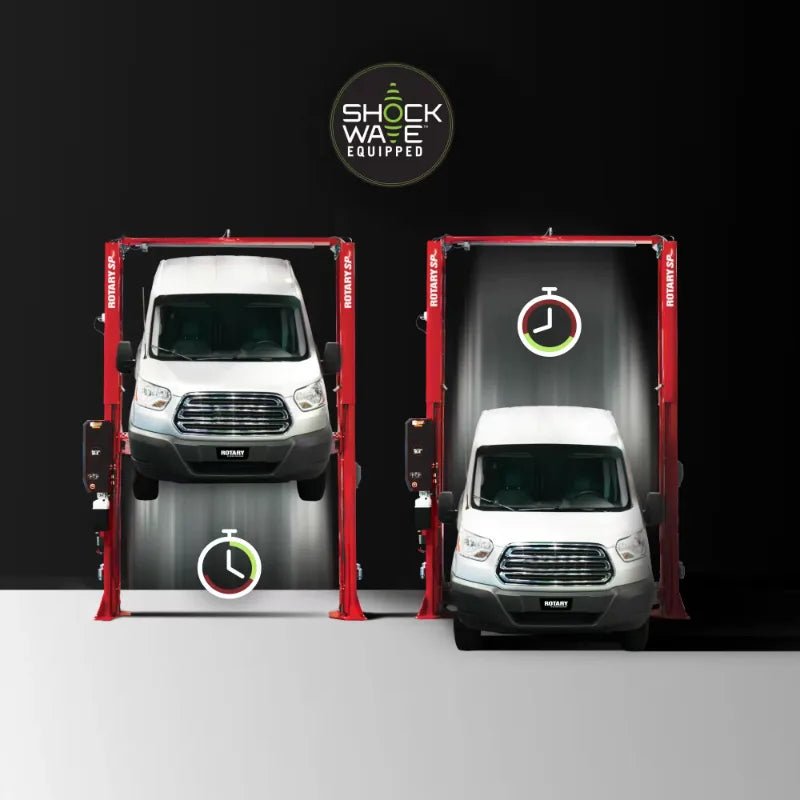

Shockwave Cuts the Cycle Time

Shockwave is Rotary’s DC battery power system, recharged by an onboard 110V charger. Rotary rates a Shockwave lift at 2X the lifting speed of a standard lift, and the SPO10 numbers carry it: 25 seconds to full rise and 19 seconds back down, against 45 and 40 on the standard-power SPO10.

That is roughly forty seconds back on every lift cycle, on every car, all day.

Symmetric Lifting and Door Clearance

Rotary’s SPO series uses true-symmetric lifting designed for trucks and vans. The vehicle’s center of gravity is spotted directly between the structure, which gives a smooth lift and leaves plenty of room in front of the columns to open truck and van doors.

Arms are standard 2-stage with Rotary’s exclusive three-position flip-up FA adapters, reaching 31″ to 54″ front and rear. Minimum adapter height is 5″.

Sized to Your Bay

The SPO10 works in a standard 12 ft. wide bay and needs 12 ft. by 24 ft. minimum. Three width installation options let you set it wider: overall width runs 11′ 5 5/8″ to 12′ 5 5/8″, drive-thru 102 1/2″ to 114 1/2″, and inside the columns 114 3/4″ to 126 3/4″. That is up to 12″ of extra drive-thru for wide vehicles.

This is the 2 ft. extended height build, so confirm your finished ceiling clearance with your installer before the bay is prepped.

The Right Two-Post Lift for Your Shop

The SPO10 puts 10,000 lbs of ALI Gold Certified symmetric lifting on Rotary’s original Double-S columns, with Shockwave DC power for a 25-second rise and 2 ft. of extended height for taller vehicles. Don’t wait — scroll back up and click the orange Add to Cart button to get this two-post lift on its way to your shop.
