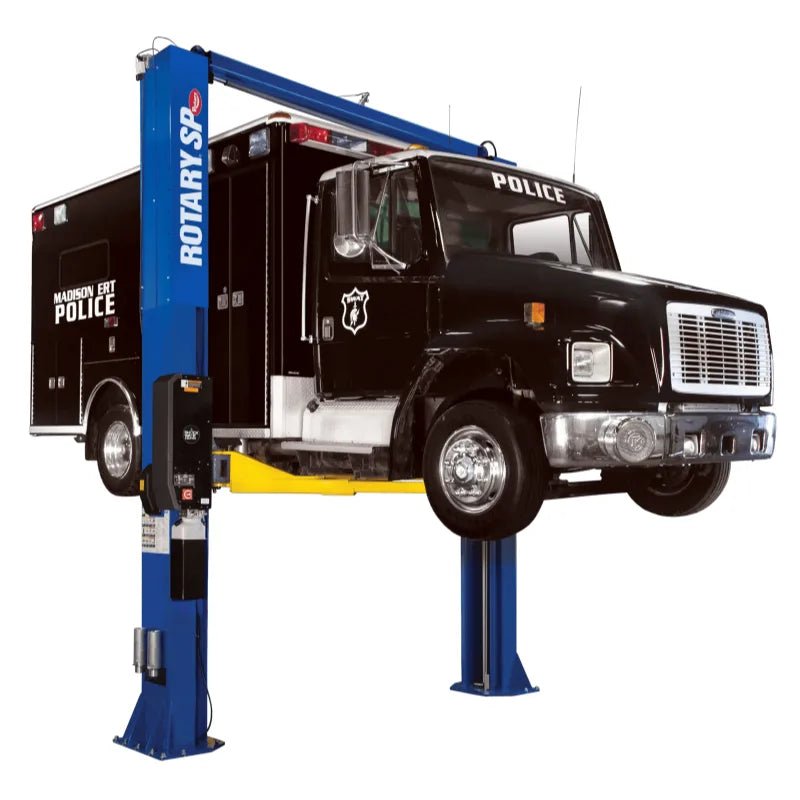

Rotary SPO20 Low Ceiling Symmetric 2-Post Lift 20,000 lb. Capacity

20,000 lb Rotary SPO20 Low Ceiling Two-Post Truck Lift with Trio Arms

Heavy trucks need a heavy lift, and most 20,000 lb two-posts want 15 feet of ceiling or more. Plenty of fleet garages and older shop buildings top out under 15. So the big trucks stay on the ground.

The Rotary SPO20 Low Ceiling is a 20,000 lb symmetric 2-post lift built for bays with as little as 13’8″ of ceiling. Same patented three-stage Trio arms and Double-S columns as the full-height SPO20 — Class 1 cars through Class 5 trucks on one lift, under a low roof.

What’s Included

• SPO20 low ceiling symmetric two-post lift with Double-S columns
• Patented three-stage Trio arms with thread-up truck adapters
• Stackable adapter extensions — two 10″ and four 5″
• Clip-on rubber adapter pads for unibody cars (set of four)
• Two three-position wheel spotting dishes
• Single-point air-operated lock release

Made For

The SPO20 Low Ceiling fits operations that need serious truck capacity inside a building that was never built for a tall lift.

• Fleet garages in older buildings with ceilings under 15 feet
• Municipal and utility shops servicing work trucks in low bays
• Truck dealerships adding capacity without raising the roof
• General repair shops taking on Class 4 and 5 work
• Shops standardizing on one lift for cars and heavy trucks

Features

• 20,000 lb capacity — Class 1 through Class 5 vehicles on a single lift, up to 5,000 lbs per arm
• Low ceiling design — installs at 13’6″ to 14’6″ column heights, needs just 13’8″ of ceiling
• Patented Trio three-stage arms — 22% greater reach than conventional two-stage arms
• Sliding third-stage adapter — pinpoint the vehicle contact point without moving the heavy inner arms
• True symmetric lifting — center of gravity sits between the columns, so truck and van doors open clear

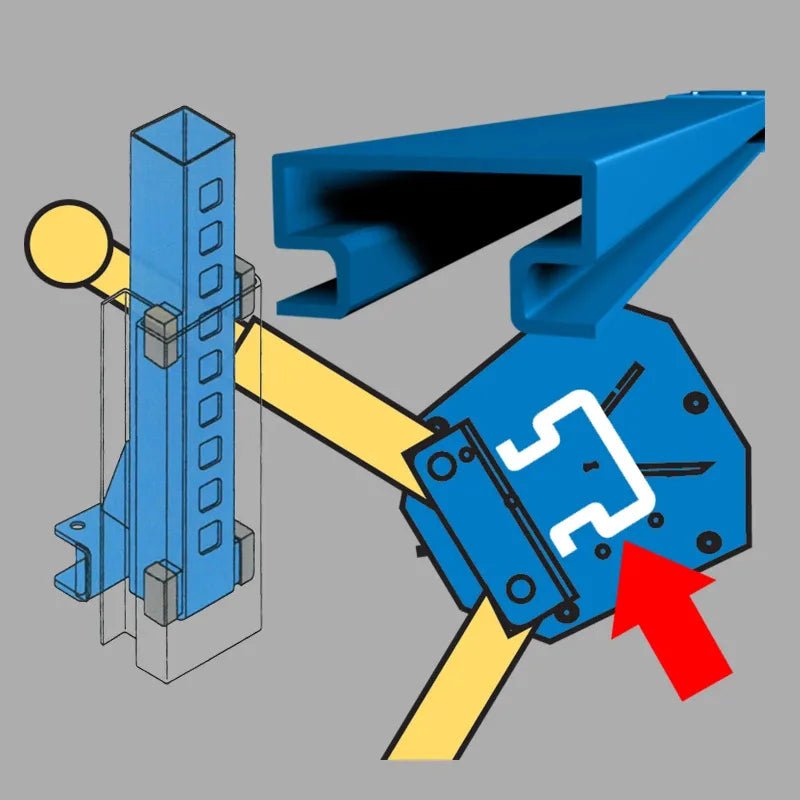

• Double-S columns — multi-bend profile for strength, with maintenance-free UHMW slider blocks
• 77″–80″ rise in 81 seconds — 4 HP, 208–230V power unit, 20-second lowering
• ALI Gold Certified — performance tested to 20,000 lift cycles

Full SPO20 Muscle Under a Low Roof

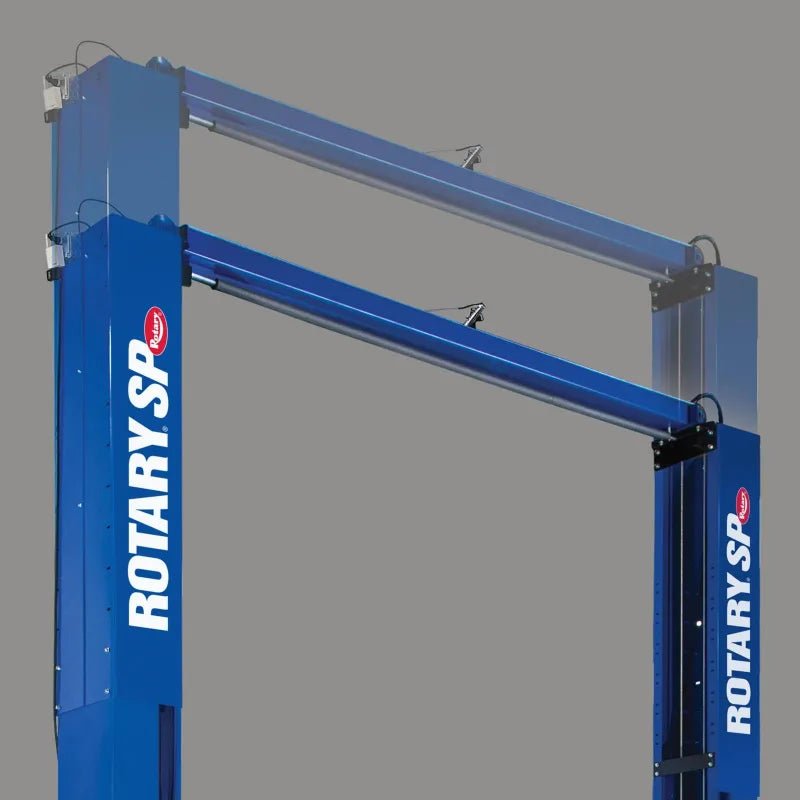

The low ceiling model keeps the SPO20’s rated capacity and rise while cutting the column height to fit 13’6″ to 14’6″ installations. The overhead assembly clears at 13’8″ of ceiling — a height most standard 20,000 lb two-posts can’t touch. You give up nothing on capacity to get in the door.

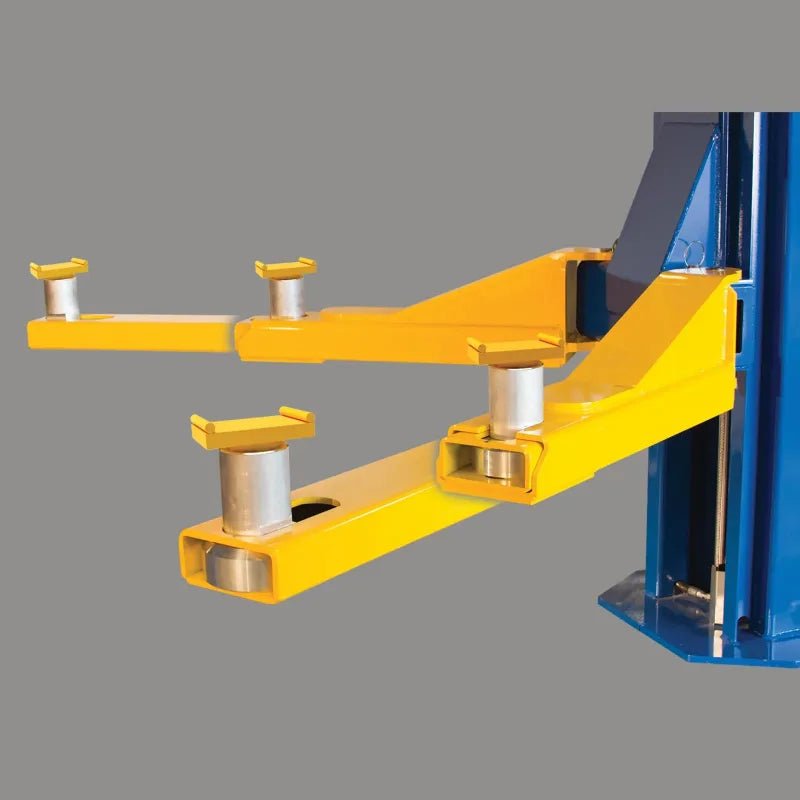

Trio Arms Reach More and Move Less

Each Trio arm is a two-piece arm with a patented sliding adapter as the third stage. The tech slides the adapter straight to the vehicle contact point instead of dragging the whole arm — 22% more reach and retraction than conventional two-stage arms, so low-profile cars and long-frame trucks spot on the same lift.

Watch the SPO20 in Action

See the Trio arms, Double-S columns, and symmetric lifting design at work before this lift lands in your shop.

The Right Low Ceiling Two-Post Lift for Your Shop

The SPO20 Low Ceiling puts 20,000 lbs of ALI Gold Certified symmetric lifting into bays that standard heavy two-posts can’t enter. Don’t wait — scroll back up and click the orange Add to Cart button to get this two-post lift on its way to your shop.

Specs

Technical Specifications
