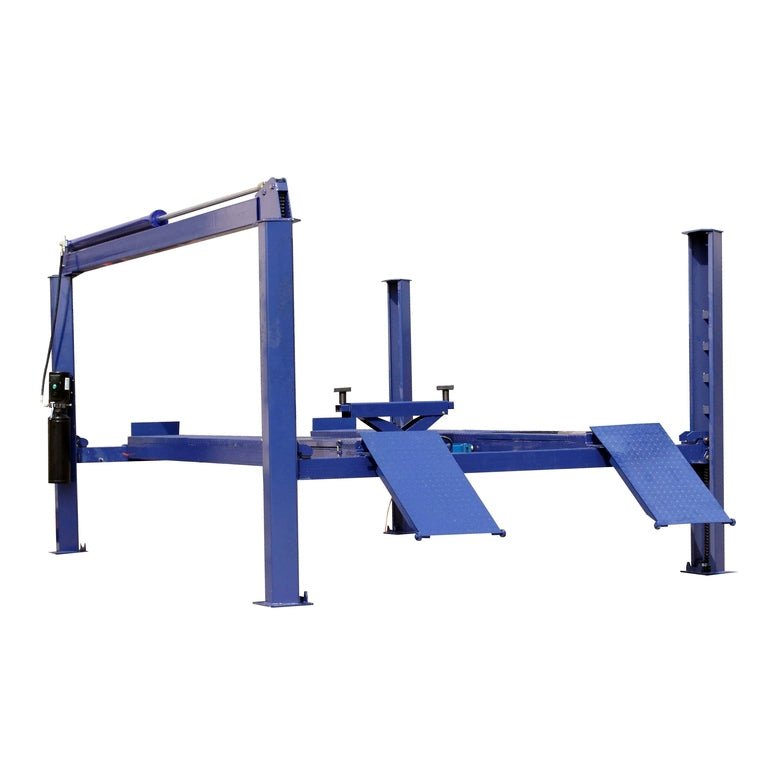

Tuxedo FP14KA 14,000 lb Four Post Alignment Lift – Chain Driven
Apple Shopping Event
Hurry and get discounts on all Apple devices up to 20%
Sale_coupon_15
$7,099.00
12
People watching this product now!
-
Pick up from the Woodmart Store
To pick up today
Free
-
Courier delivery
Our courier will deliver to the specified address
2-3 Days
Free
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
Free
-
Warranty 1 year
-
Free 30-Day returns
Payment Methods:
Description
iDEAL 14,000 lb Post Alignment Lift 182.5″ WB
*Bridge Jacks Not included
These heavy-duty chain-driven lifts are designed for many years of trouble-free service. Our four post lifts are constructed with a heavy gauge C channel.
Features
- 14000 LBS Capacity
- High performance commercial alignment lift
- Durable, high quality cable lift system
- Extended rise height
- ‘BOLT-ON’ Runway alignment kit
- 166.7″ Max alignment wheelbase (2 wheel)
- 157″ Max alignment wheelbase (4 wheel)
- 182.5″ Max service wheelbase
- 18 locking height positions
- Full width rear wheel slip plates
- Two turntable positions w/spacer covers
- 20″ Wide runways
- Narrow & wide runway mounting positions
- Single point pneumatic lock release
- Fully adjustable lock stops for easy leveling
- Slack cable safety devices
- Self-chocking approach ramps w/ nylon rollers
- Wheel chocks (1PR)
- Durable powder coat finish
Specifications
| Lift model | FP14KAC-X |
| Capacity | 14000 lbs |
| Overall length w/ Ramp | 252-1/2″ |
| Overall width (without power unit) | 131-7/8″ |
| Overall width (with power unit) | 142″ |
| Overall height | 92-1/2″ |
| Max rise height | 79-1/2″ |
| Min height | 9-7/8″ |
| Width between posts | 116-1/4″ |
| Length between posts | 196″ |
| Width between runways | 43″ or 46″ |
| Width of runways | 20″ |
| Max wheelbase | 182-1/2″ |
| Max. align wheelbase (2 wheel) | 166-3/4″ |
| Min / Max. Align wheelbase (4 wheel) | 103″ / 157″ |
| Ramp length | 44″ |
| Max. Clearance under runway | 69-5/8″ |
| Drive-thru clearance | 100″ |
| Base plate | 10-1/2″ x 9″ |
| Power requirement | 220V – 20 Amp 1 PH |
| Ship weight | 3810 lbs |
| Min bay size | 16 x 25 |
Accessories (Included)
- Internal airline kit w/ FLR
- HD Carbon steel turntables – 4.5K cap. EA
- Rollback spacers for HD turntables
