Vestil Aluminum/Steel Yard Ramp SY-169336-L
$25,566.86
10
People watching this product now!
Description

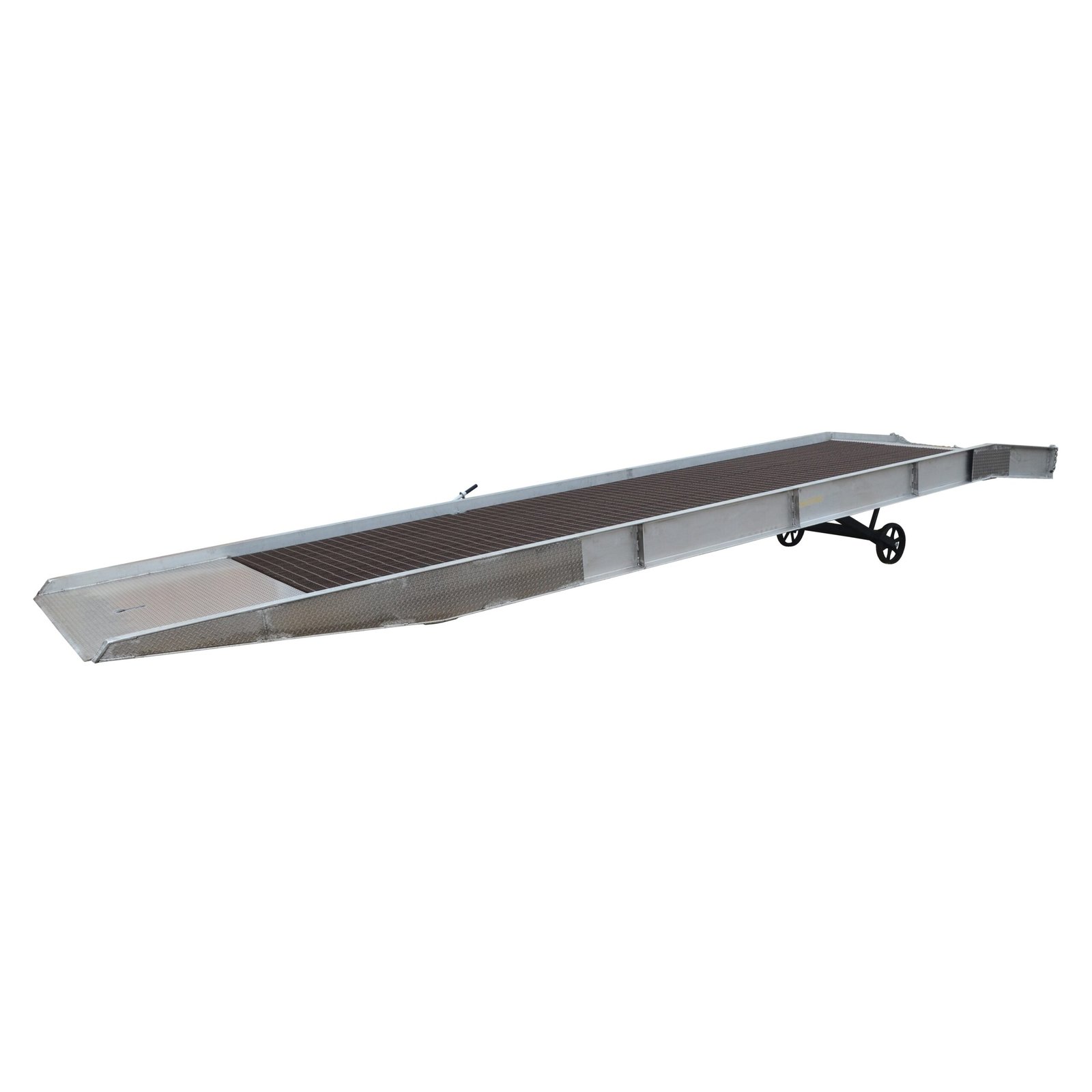

Aluminum Yard Ramp
What do you get when choosing the portable Aluminum Yard Ramp with easy one person height adjustment?
The portable Aluminum Yard Ramp with steel grating has a unique design that allows one person to position the ramp, adjust its service height, and load or unload trailers from ground level. It includes hand pump hydraulic lift, safety pressure relief valve, anchor chains, and tow bar pocket.
- Aluminum side curbs prevent fork truck run-off
- Overlap style lip with safety chains secures ramp to trailer
- Steel grating allows snow, ice and rain to fall through
- Hand pump hydraulic lift easily adjusts to different dock heights
| Uniform Capacity (lb.):Â 16000 | Usable Width (in.):Â 87 | Hydraulic Lift:Â Hand Pump |
| Tire Size (in.):Â 18 | Tire Thickness (in.):Â 5 | Curb Height (in.):Â 4 |
| Lowered Height (in.):Â 45 | Raised Height (in.):Â 62 | Usable Lip Support Edge (in.):Â 13-1/2 |
| Deck Type:Â Steel Bar Grating |
