Vestil Mechanical Steel Yard Ramp 85″x 36′ YRD-30-8536-M

$18,315.90

11 People watching this product now!

Vestil Portable Steel Yard Ramp Mechanical Dock Leveler 85 In. x 36 Ft. 30,000 lb. Capacity Earth Tone Brown

What do you get when choosing the Portable Steel Yard Ramp with easy one person height adjustment?

The portable steel Yard Ramp quickly loads and unload trucks, trailers and rail cars from ground level when no freight dock exists. Increase productivity while reducing material handling costs. Great for construction sites. A manual two-speed hand crank for easy one (1) person height adjustment. The standard features include: positive traction open steel grating, safety locking chains, rubber bumpers and fork positioning loop. Steel wheels includ ed for quick maneuvering and portability of unit. Painted neutral earth-tone brown.

Steel side curbs prevent fork truck run-off
Overlap style lip with safety chains secures ramp to trailer
Open grating design allows snow, ice and rain to fall through
Included a mechanical leveler for a perfect transition

Uniform Capacity (lb.): 30000	Usable Ramp Width (in.): 78	Dock Leveler Width (in.): 75
Caster Material: Steel	Caster Diameter (in.): 8-5/8	Caster Width (in.): 3-5/8
Safety Curb (in.): 4	Usable Lip Support Edge Length (in.): 13-1/2	Lowered Height (in.): 45
Raised Height (in.): 62	Straight Ramp (in.): 360	Level Off (in.): 72

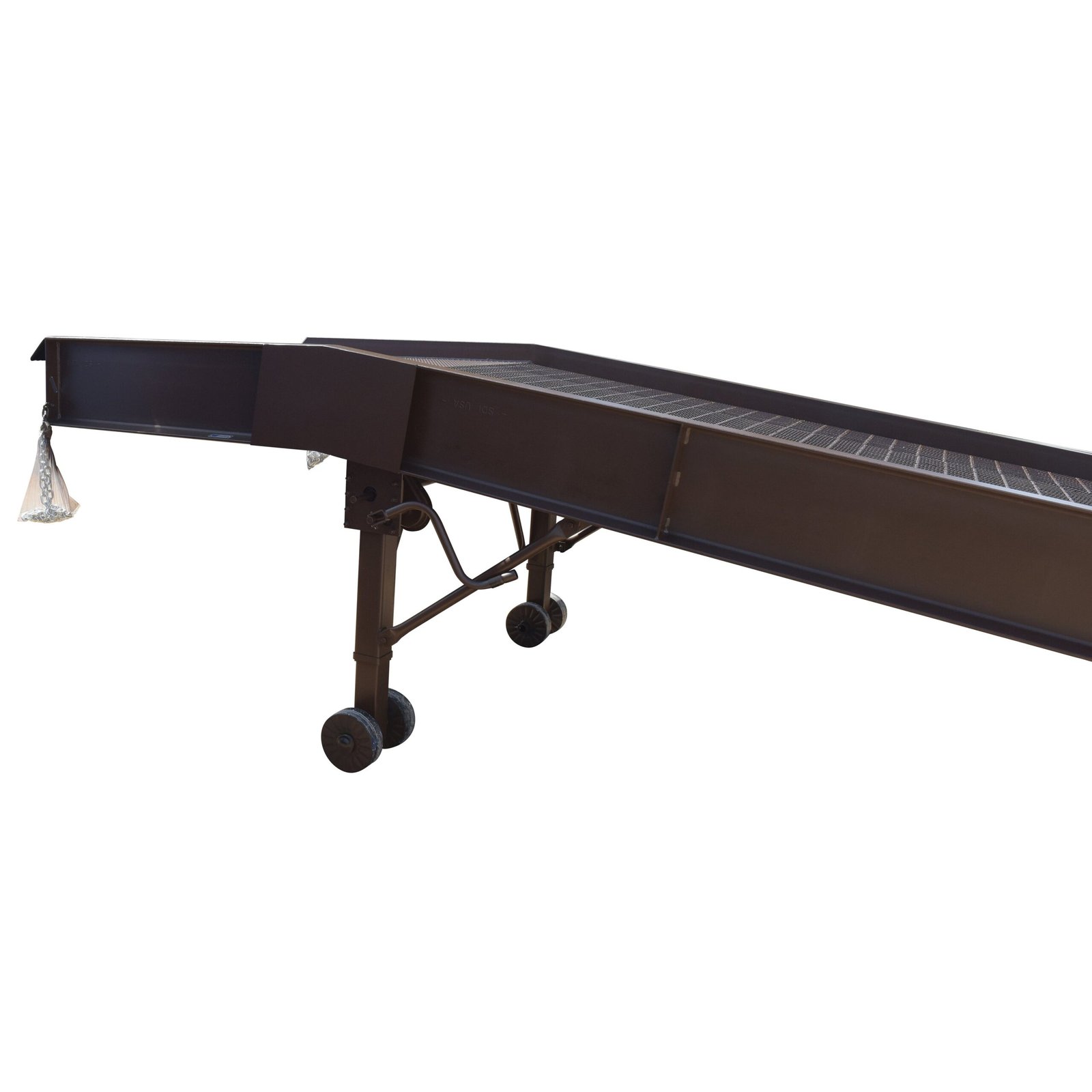

Vestil Mechanical Steel Yard Ramp 85"x 36' YRD-30-8536-M - Image 1

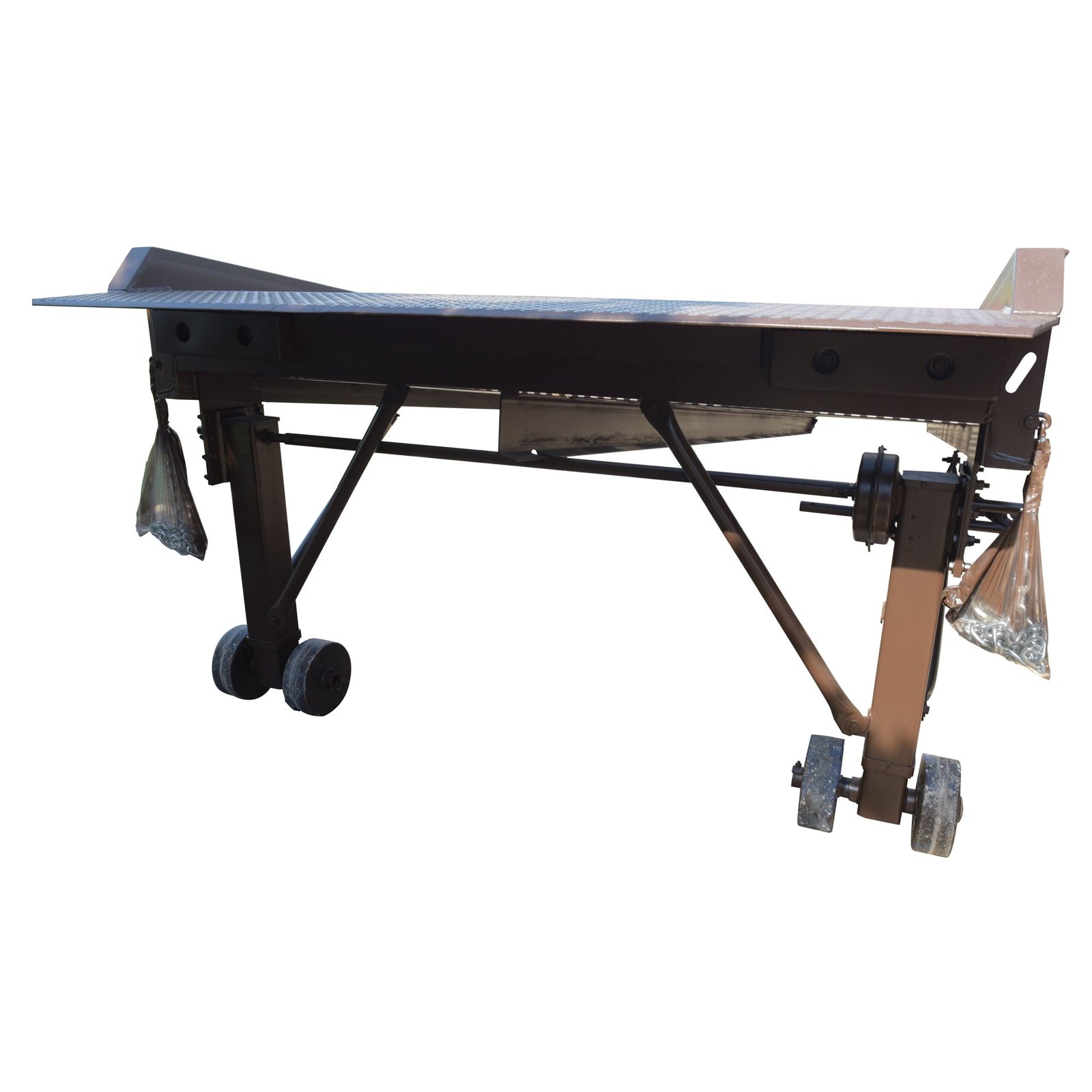

Vestil Mechanical Steel Yard Ramp 85"x 36' YRD-30-8536-M - Image 2

Vestil Mechanical Steel Yard Ramp 85"x 36' YRD-30-8536-M

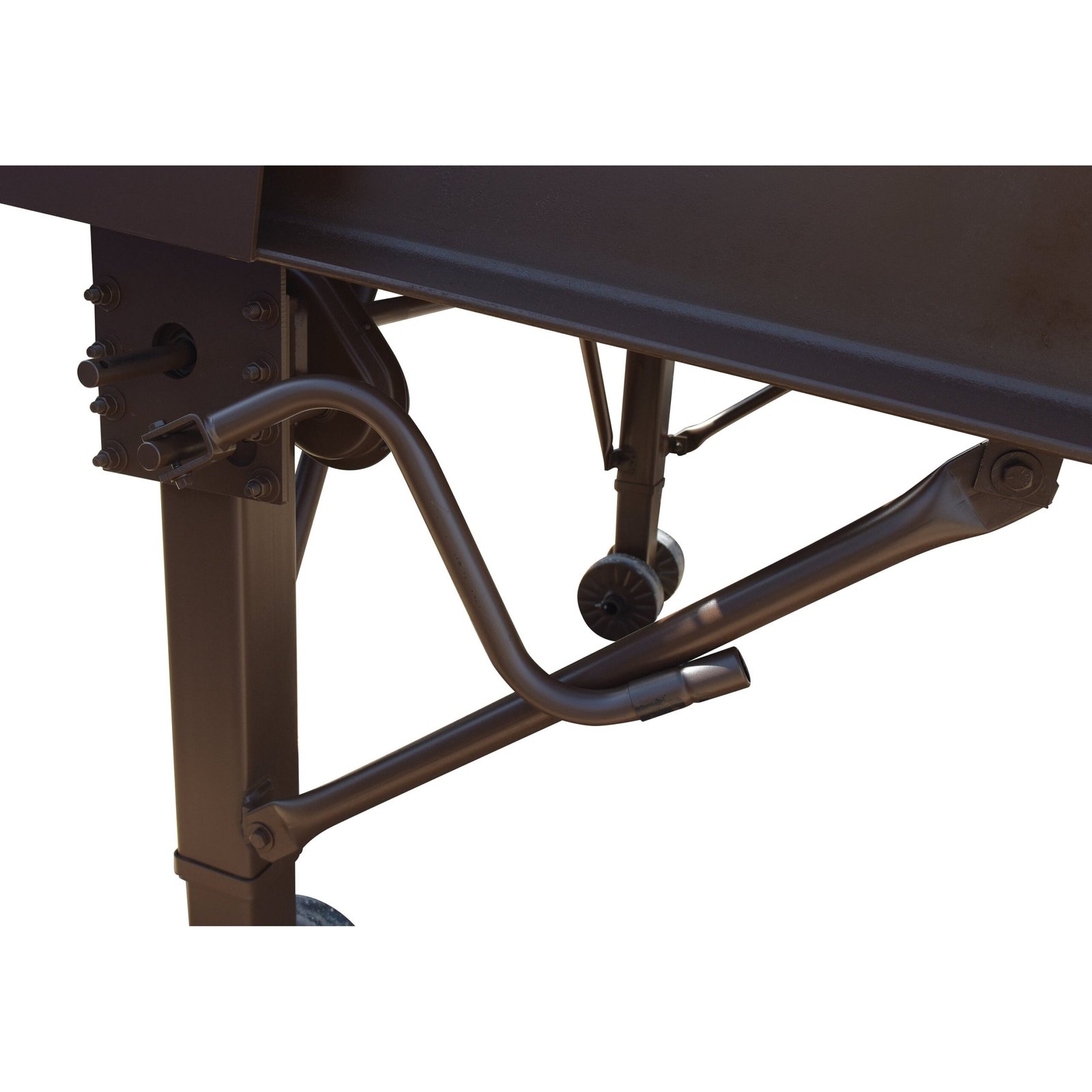

Vestil Mechanical Steel Yard Ramp 85"x 36' YRD-30-8536-M - Image 3

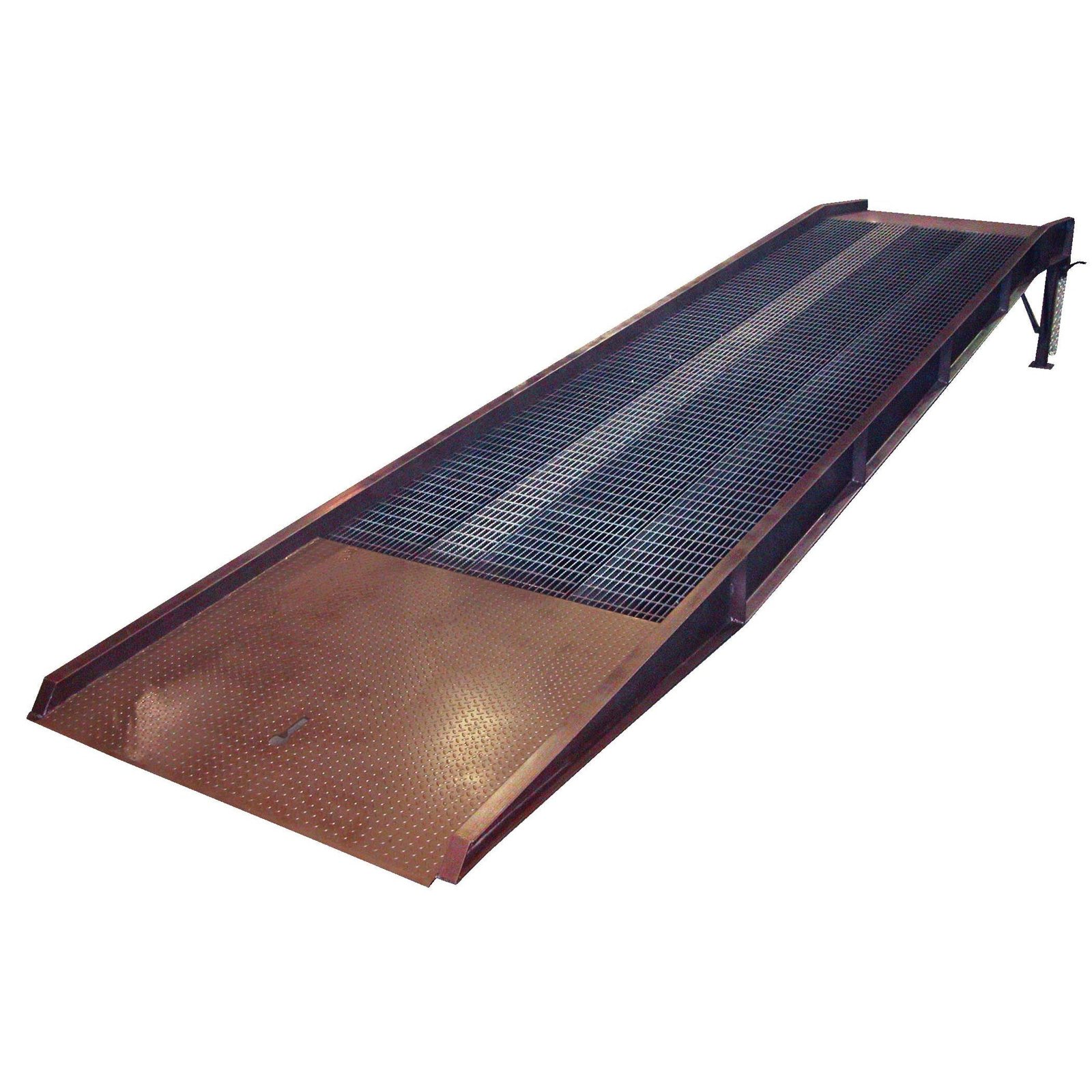

Vestil Mechanical Steel Yard Ramp 85"x 36' YRD-30-8536-M - Image 4

Compare

Add to wishlist

SKU: YRD-30-8536-M Tags: Brand_Vestil Manufacturing Company, breadcrumb:yard-ramps, Capacity_30000 lbs, Lenght_36 ft, Material_Steel, Product Type_Yard Ramps, Warehouse Ramps, Width_80 - 90 (in), Yard Ramps

Description
Reviews (0)

Description

Uniform Capacity (lb.): 30000	Usable Ramp Width (in.): 78	Dock Leveler Width (in.): 75
Caster Material: Steel	Caster Diameter (in.): 8-5/8	Caster Width (in.): 3-5/8
Safety Curb (in.): 4	Usable Lip Support Edge Length (in.): 13-1/2	Lowered Height (in.): 45
Raised Height (in.): 62	Straight Ramp (in.): 360	Level Off (in.): 72
