KATOOL KT-H100 Two Post Vehicle Lift 10,000 lbs Capacity

Katool KT-H100 10,000 lb 2-Post Base Plate Car Lift

Jack stands get you inches of room. Real work under a car needs the whole vehicle at chest height — and it needs to stay there while you work.

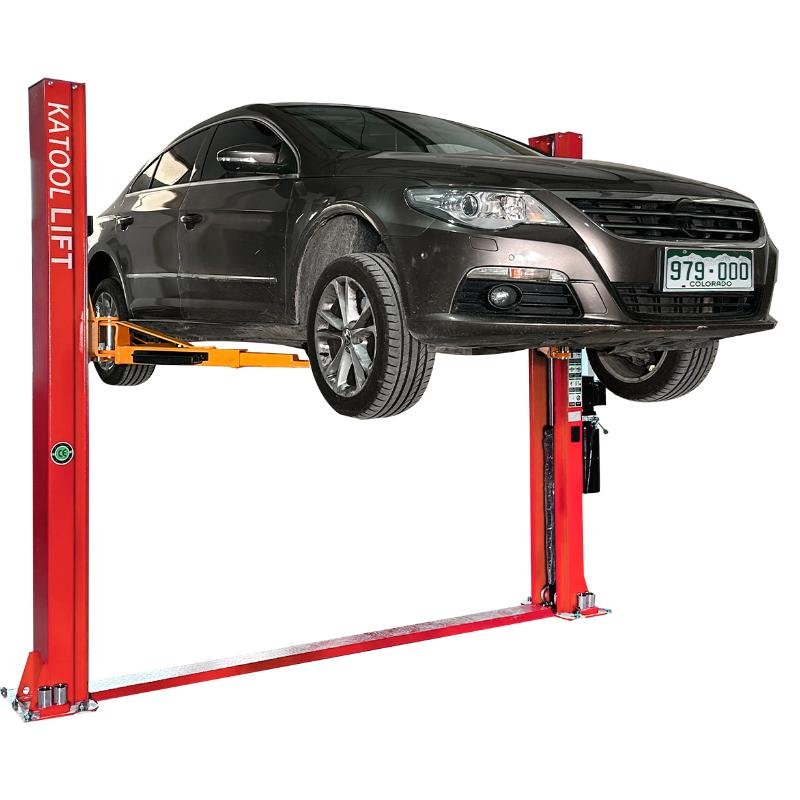

The Katool KT-H100 two post vehicle lift raises 10,000 lbs on symmetric 2-stage arms and holds the load on mechanical safety locks. Its base plate design keeps the total height at 110.25 in, so it fits garages where an overhead-beam lift never could.

Why Choose the KT-H100

The KT-H100 is the no-nonsense two post: full 10,000 lb capacity in a base plate design that fits under ceilings just over 9 ft.

• Base plate design — no overhead beam; the total height stays at 110.25 in.
• Symmetric 2-stage arms, 30.75–50.5 in reach — balanced positioning for sedans, SUVs, and light trucks.
• CE certified — load tested to 115% dynamic and 150% static capacity.

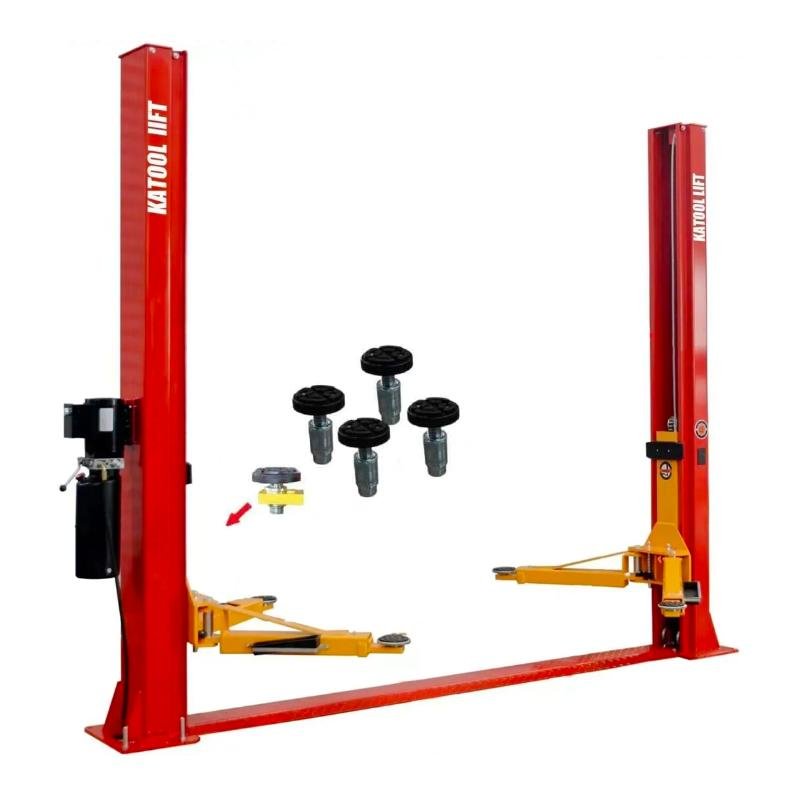

• +30 mm and +120 mm adapter sets included — reach frame contact points on taller vehicles.

What’s Included

• Katool KT-H100 two post vehicle lift
• Extension support adapter sets (+30 mm and +120 mm)

Made For

Built for garages that need full lifting capacity under a standard-height ceiling.

• Home garages with lower ceilings
• Enthusiasts doing brakes, suspension, and underbody work
• Small independent repair bays
• Owners of sedans, SUVs, and light trucks
• First-lift buyers stepping up from jack stands

Features

• 10,000 lb capacity — sedans, SUVs, and light trucks
• 70.75 in max lifting height — stand-up working clearance
• 4.25 in min pad height — slides under most cars without ramps
• 110.25 in overall height — base plate design, no overhead beam
• Dual hydraulic chain-drive cylinders — synchronized lifting side to side
• Dual-side manual safety release — mechanical locks released at each column
• 94.5 in drive-through clearance — easy drive-in positioning
• CE certified — 115% dynamic / 150% static load tested

Base Plate Design for Lower Ceilings

On the KT-H100 the equalization runs through a low plate on the floor instead of a beam over the vehicle. That caps the lift at 110.25 in tall — a height that works in garages where a 12 ft overhead lift is simply not an option.

It also means nothing sits above the roof of a raised vehicle. Vans and taller SUVs go up without watching for a crossbar, limited only by the ceiling itself.

Mechanical Locks and Synchronized Lifting

Dual hydraulic chain-drive cylinders raise both carriages together, keeping the vehicle level through the full 70.75 in of travel. Mechanical safety locks engage as the lift rises, so the load rests on steel while you work.

Lowering is deliberate: manual safety releases at both columns disengage the locks before the lift comes down under control. Rubber door protection pads and foot-protection guardrails round out the safety package.

The Right Two Post Lift for Your Garage

If you want full-capacity two post lifting in a garage with a normal ceiling, the KT-H100 is built for exactly that: 10,000 lbs, a 110.25 in total height, and CE-tested construction.

Don’t wait — scroll back up and click the orange Add to Cart button to get this lift on its way to your garage.

Specs

Technical Specifications

Manual

Owner’s Manual

Download the Katool KT-H100 owner’s manual for installation instructions, maintenance guidelines, and safety information. Download Manual
