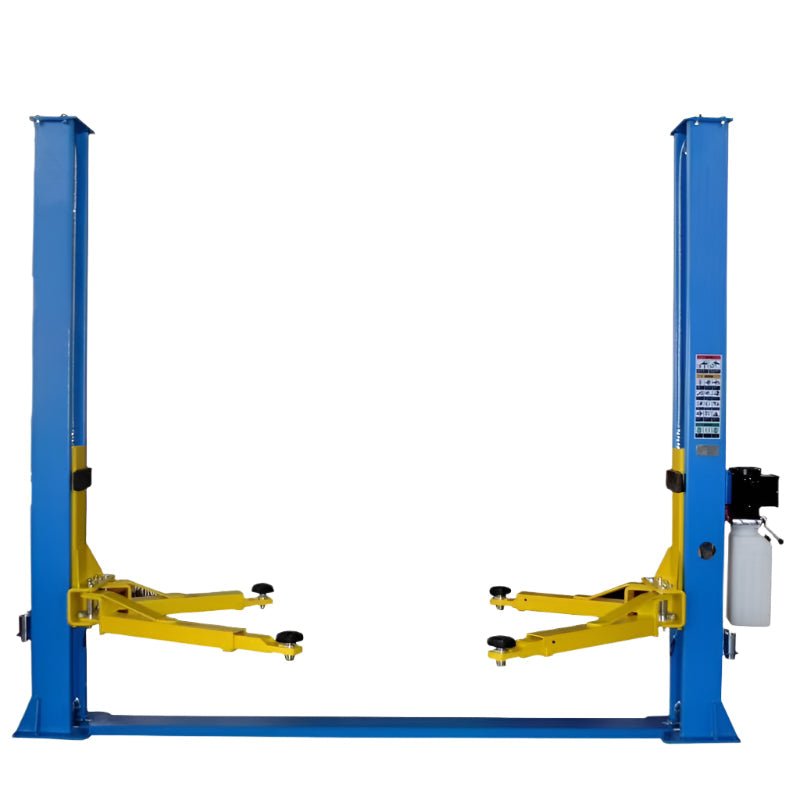

KATOOL KT-H105 Two Post Vehicle Lift 10,000 lbs Capacity

Katool KT-H105 10,000 lb Base Plate Two Post Car Lift for Home Garages

Low cars and lifts rarely get along. If the arms will not slide under the rockers, you are back on the floor with a jack before the job even starts.

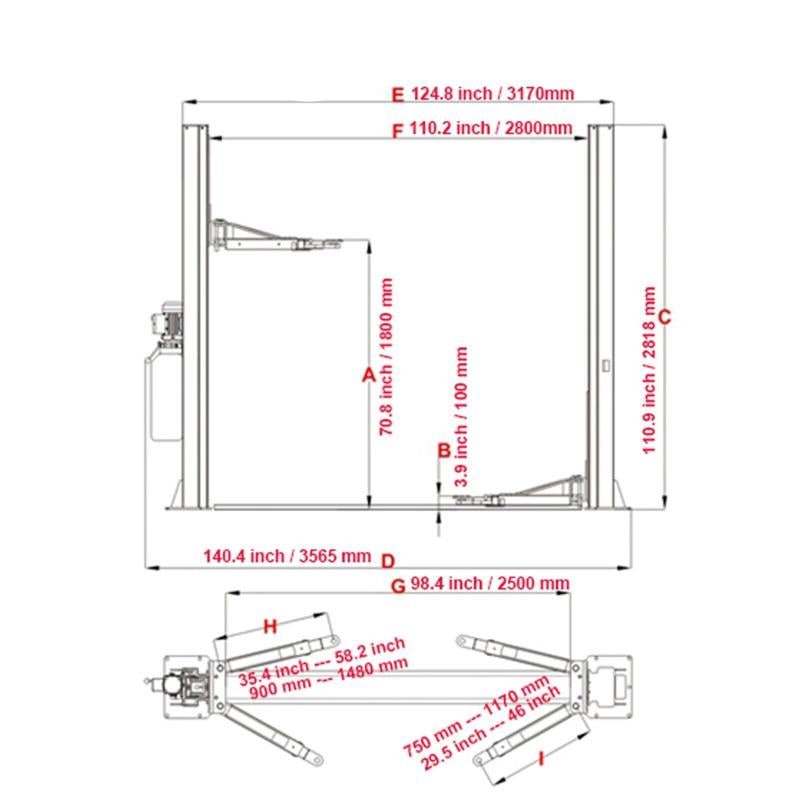

The Katool KT-H105 two post vehicle lift is built for that problem: a 3.9 in minimum pad height, 10,000 lbs of capacity, and a base plate design that keeps total height at 110.9 in for garages with normal ceilings.

Why Choose the KT-H105

The KT-H105 combines a low 3.9 in pad height with a wide 98.4 in drive-through — an easy lift to get low, wide vehicles onto.

• 3.9 in minimum pad height — the arms slide under low rockers without ramps or wooden blocks.
• 98.4 in drive-through clearance — generous margin for mirrors on the way in.
• 2-stage front and rear arms (29.5–46 in / 35.4–58.3 in) — short reach up front, long reach at the rear for a wide range of lift points.
• Screw-on lifting pads with +100 mm adapter set included — dial in exact contact height per vehicle.

What’s Included

• Katool KT-H105 two post vehicle lift
• Screw-on lifting pads with +100 mm extension adapter set

Made For

Built for garages that mix low cars with everyday vehicles.

• Owners of low-clearance sports cars and classics
• Home garages with standard-height ceilings
• Enthusiasts doing brakes, oil, and suspension work
• Small repair bays lifting mixed vehicle types
• Detailers needing full underbody access

Features

• 10,000 lb capacity — sedans, SUVs, and light trucks
• 70.8 in max lifting height — stand-up working clearance
• 3.9 in min pad height — reaches under low cars
• 110.9 in overall height — base plate design, no overhead beam
• 98.4 in drive-through clearance — wide, easy drive-in
• Dual-side manual safety release — mechanical locks released at each column
• Rubber door protection pads — guards panels when doors swing at the columns
• CE certified — 115% dynamic / 150% static load tested

Low Pad Height, Full Capacity

At 3.9 in, the KT-H105’s lifting pads clear rocker panels that stop taller arms cold. The screw-on pads adjust upward from there, and the included +100 mm adapters extend the reach for trucks and SUVs with higher frame rails.

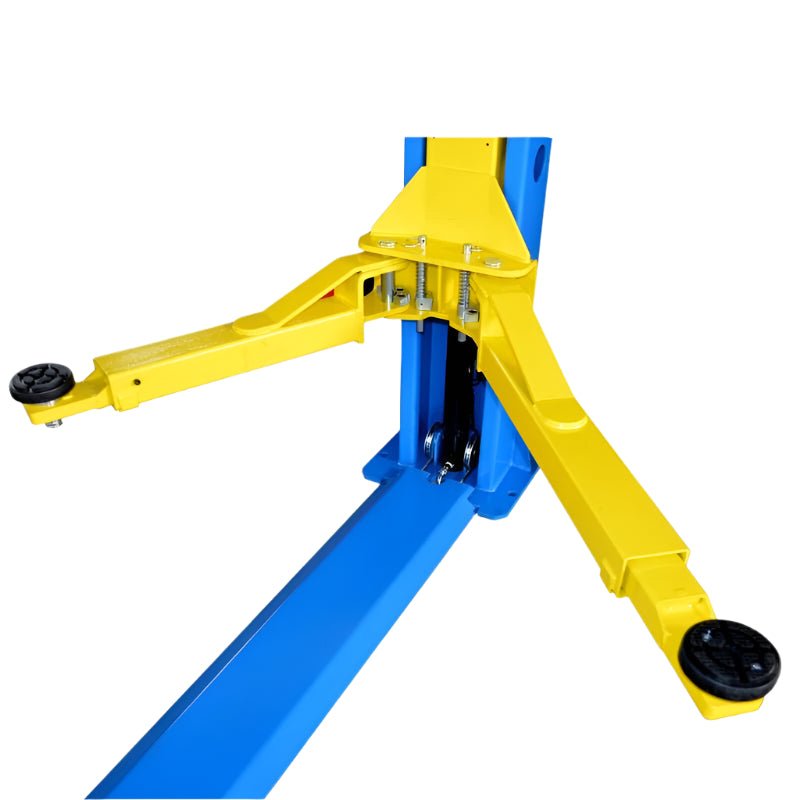

The 2-stage arms are asymmetric in reach — 29.5 to 46 in up front, 35.4 to 58.3 in at the rear — which makes it simple to put all four pads on factory lift points across very different wheelbases.

Base Plate Design That Fits the Building

The equalization runs across a low floor plate instead of an overhead beam, capping the lift at 110.9 in total height. Garages with ceilings just over 9 ft can run a real two post without structural changes.

Mechanical safety locks carry the load at working height, with manual releases at both columns for controlled lowering. The 2.2 kW motor runs on 220V single-phase power.

The Right Two Post Lift for Your Garage

For a garage that sees low cars, the KT-H105 is the practical pick: 10,000 lbs of capacity, 3.9 in pad height, and a footprint and height that fit a residential building.

Don’t wait — scroll back up and click the orange Add to Cart button to get this lift on its way to your garage.

Specs

Technical Specifications

Manual

Owner’s Manual

Download the Katool KT-H105 owner’s manual for installation instructions, maintenance guidelines, and safety information. Download Manual
