Vestil QIT-1 Manual Trolley Steel Construction 1,000 lb Capacity

Vestil 1,000 lb Quick Install Manual Trolley

Heavy overhead lifting calls for equipment that stays steady under pressure. This quick install manual trolley supports loads up to 1,000 lb. while keeping setup simple and adjustments precise. It mounts easily and fits a wide range of standard I-beam styles without permanent installation.

Width is set using a manual screw mechanism, then secured with a locking ring to help prevent movement during use. Sealed bearing rollers and a built-in lifting eye round out a design focused on control and long-term reliability.

What’s included

• Steel quick install manual trolley
• Four sealed bearing rollers (pre-installed)
• Integrated lifting eye for hoist attachment

Made for:

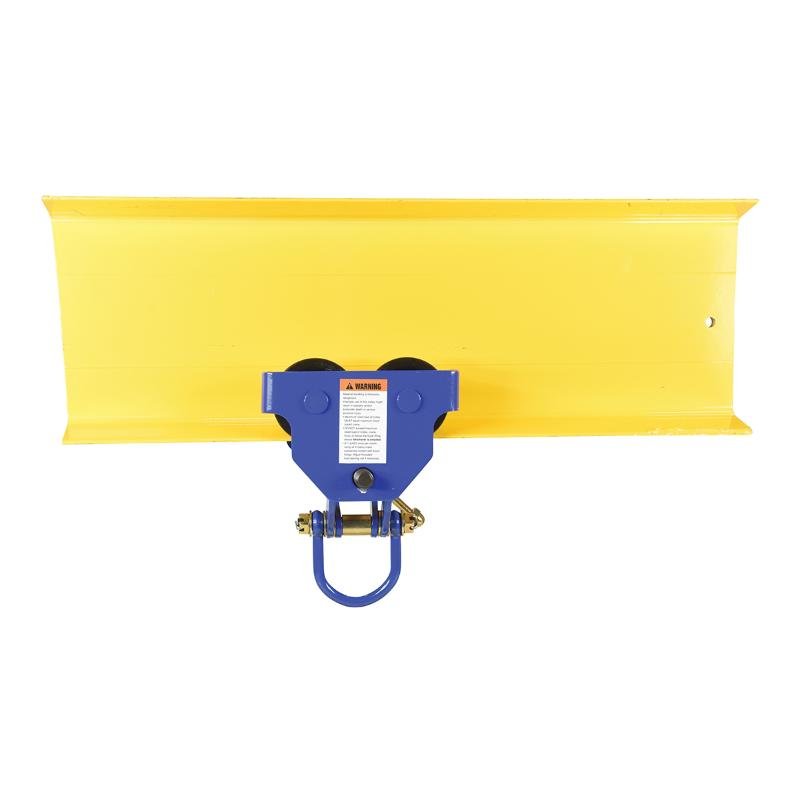

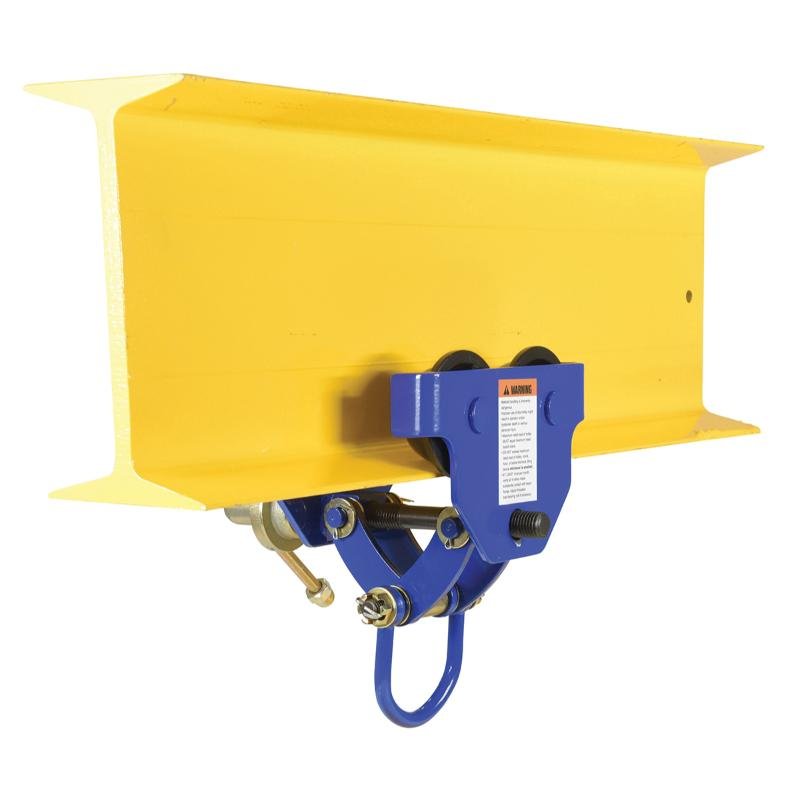

This trolley is made for demanding lifting tasks in workshops, maintenance areas, warehouses, and industrial settings. It fits S, H, W, and M type I-beams, making it easy to move loads along existing overhead structures.

The manual adjustment can also be tightened to hold the trolley in place, similar to a beam clamp, when a fixed lifting point is needed.

Features

• Adjustable to fit beam flanges from 2 to 4-1/2 inches wide
• Manual screw mechanism with locking ring for secure positioning
• Four sealed bearing rollers for smooth, long-lasting movement

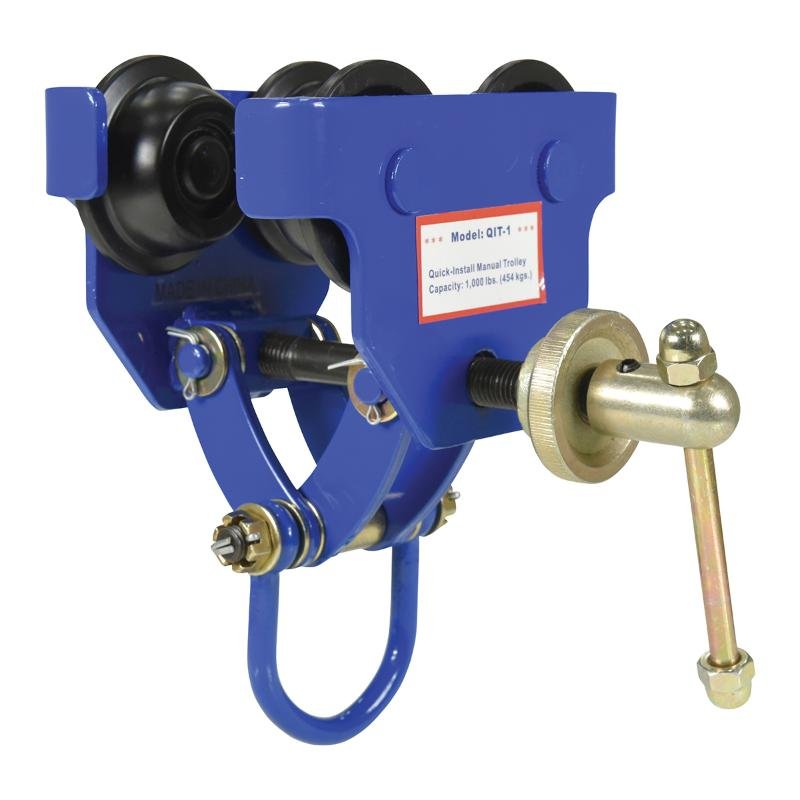

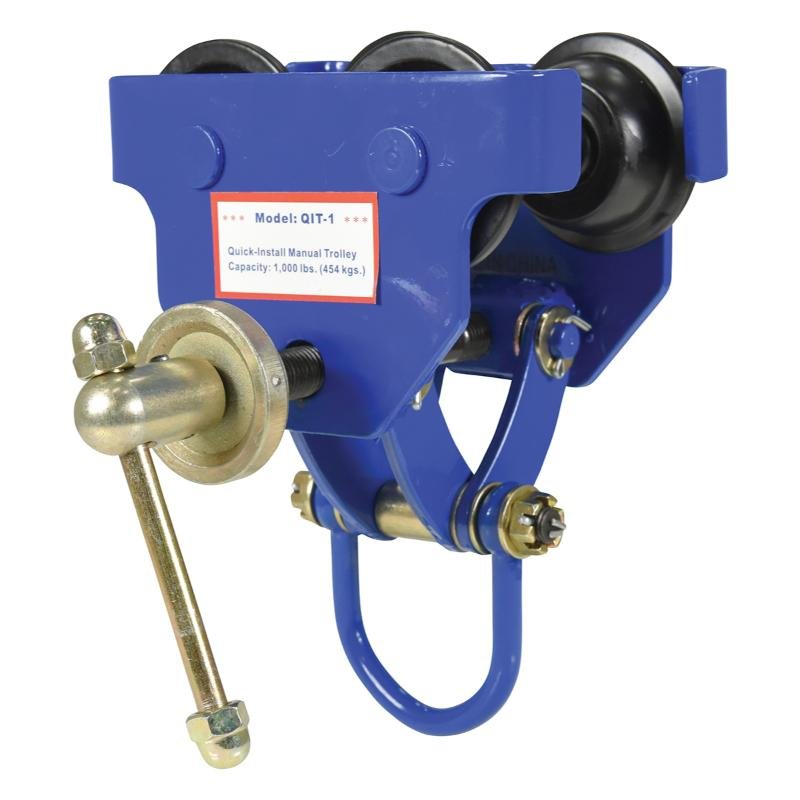

Precise Width Control

The manual screw adjustment allows accurate fitting to the beam flange. This helps the trolley install quickly while maintaining a snug, secure connection.

A locking collar helps prevent accidental changes after adjustment. The trolley stays aligned, supporting safer lifting and consistent performance.

Smooth Travel and Safe Attachment

Sealed bearing rollers help the trolley glide smoothly along the beam with minimal effort. The sealed design helps protect internal components for extended service life.

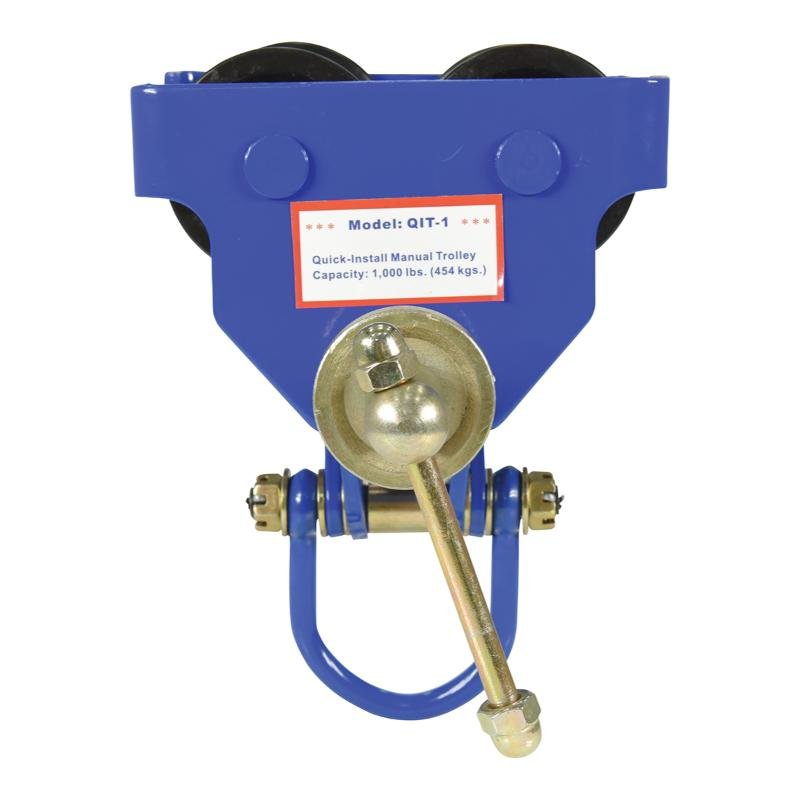

A lifting eye positioned at the bottom provides a stable attachment point for a hoist. This helps keep loads centered and easier to control during operation.

Built to handle serious lifting tasks

With a 1,000 lb. capacity and adjustable fit, this manual trolley delivers dependable performance for heavier loads without adding unnecessary complexity.

Equip the workspace with a strong, adaptable lifting solution. Click the add to cart button now!

Specs

Technical Specifications

Downloads

Download the official product manual for setup instructions, proper use, and important safety information.

Download Product Manual (PDF)
