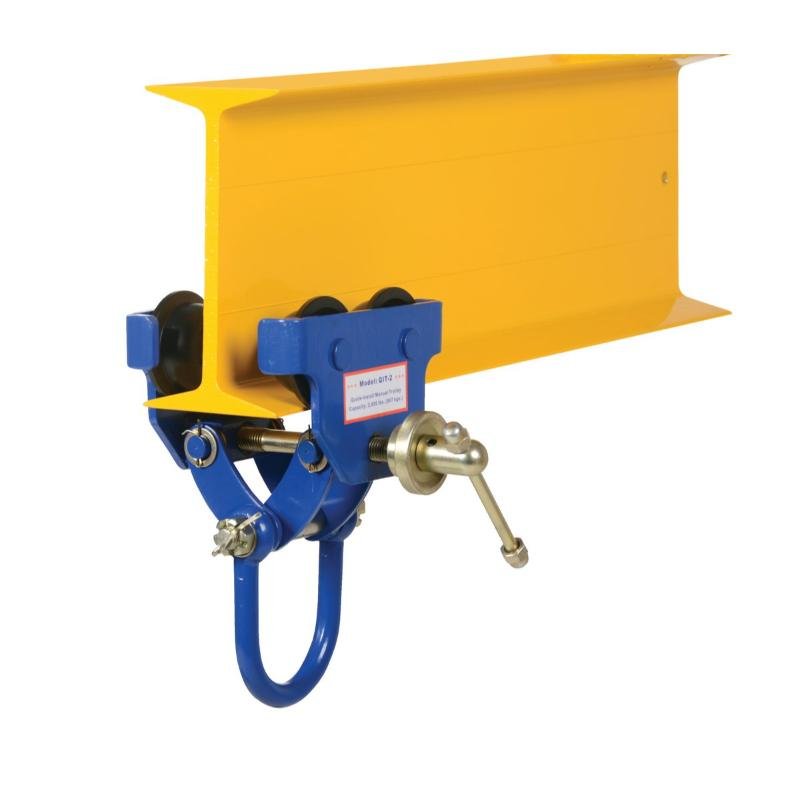

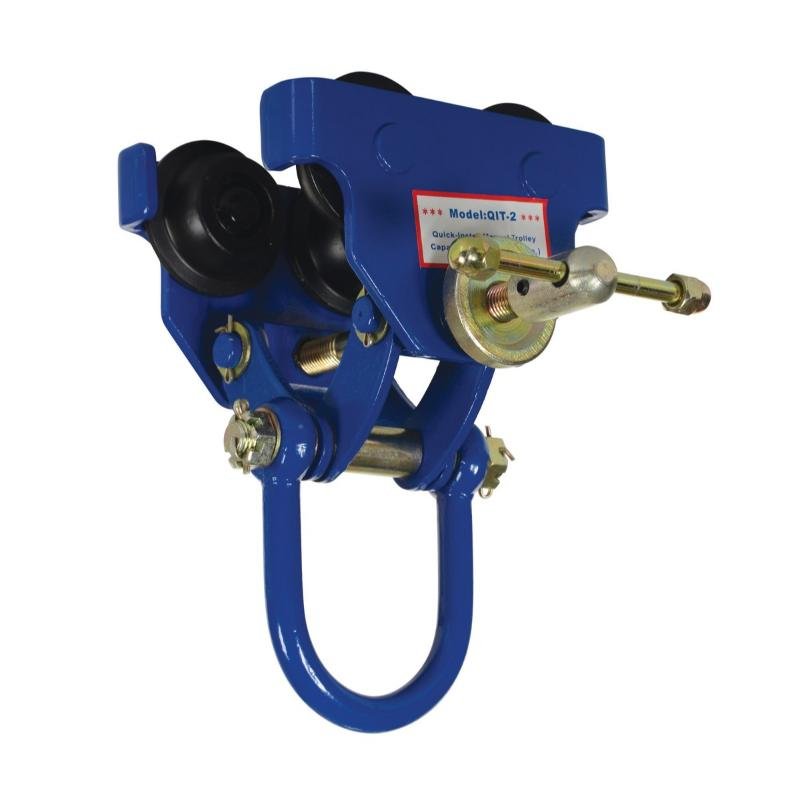

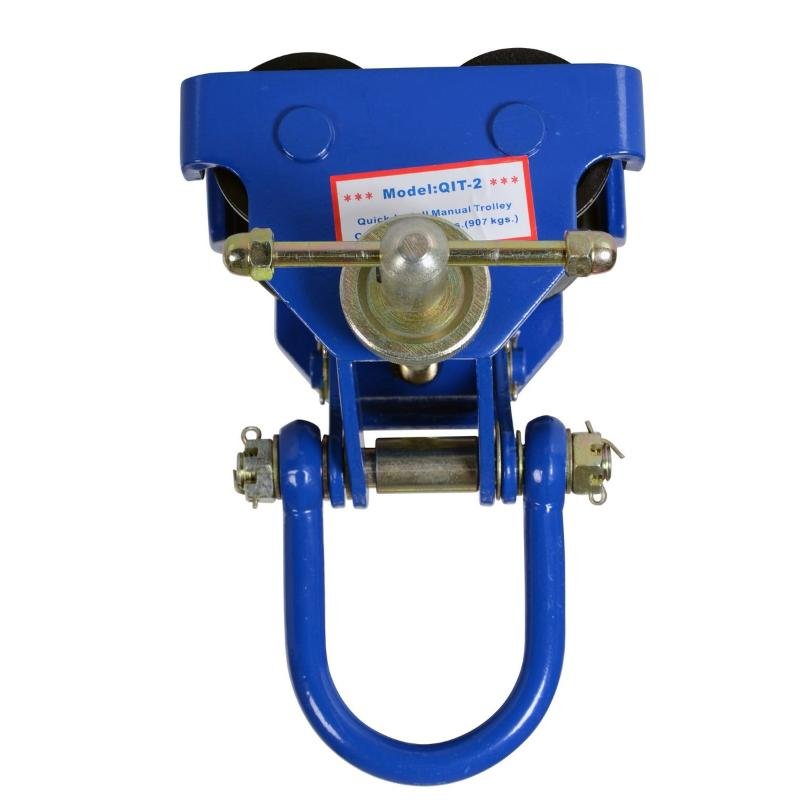

Vestil QIT-2 Manual Trolley Steel Construction 2,000 lb Capacity

Vestil QIT‑2 2,000 lb Quick Install Manual Trolley

When heavier loads need controlled overhead movement, a stronger trolley makes all the difference. The Vestil QIT‑2 quick install manual trolley is built to handle loads up to 2,000 lb. while remaining easy to adjust and secure on the beam.

Its manual screw adjustment allows precise width setup, while a locking ring helps prevent accidental movement after installation. Sealed bearing rollers and an integrated lifting eye support smooth travel and dependable lifting performance.

What’s included

• Steel quick install manual trolley
• Four sealed bearing rollers (pre‑installed)
• Integrated lifting eye for hoist attachment

Made for:

This trolley is designed for industrial, maintenance, and warehouse environments where heavier loads must be moved along overhead beams. It fits S, H, W, and M type I‑beams commonly found in lifting systems.

The manual screw mechanism can also be tightened to hold the trolley in a fixed position, functioning similarly to a beam clamp when needed.

Features

• 2,000 lb uniform load capacity
• Adjustable to fit beam flanges from 3 to 5 inches wide
• Manual screw mechanism with locking ring for secure positioning

Secure Adjustment and Locking

The manual adjusting screw allows quick and accurate width setup for different beam sizes. Once positioned, the locking collar helps keep the setting from changing during operation.

This secure adjustment supports consistent alignment and safer lifting.

Smooth Rolling with Heavy Loads

Four sealed bearing rollers help the trolley roll smoothly along the beam, even under heavier loads. The sealed bearings help protect against wear and support long service life.

A lifting eye at the bottom of the trolley provides a stable attachment point for a hoist, keeping loads centered during lifting.

Built for demanding lifting applications

With its increased capacity and adjustable design, the QIT‑2 delivers reliable performance for heavier everyday lifting tasks in industrial settings.

Add a dependable overhead lifting solution to the workspace today. Click the add to cart button now!

Specs

Technical Specifications

Downloads

Download the official product manual for setup instructions, proper use, and important safety information.
